semi automatic
&21680$%/(5(3/(1,6+0(176
9257(;3/8681'(56&5((1&/($1(5
8.34 User Manual Software Version 07SP02
Cleaning Cassette Replenishment
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING SHOULD BE
WORN BY SOLDER PASTE AND SOLVENT HANDLERS AT ALL TIMES TO
ELIMINATE FUME INHALATION, EYE CONTACT, SKIN CONTACT AND
INGESTION.
WARNING
FLAMMABLE. THE USED VORTEX CLEANING CASSETTE AND VORTEX FILTER
CASSETTE CONTAIN RESIDUES OF UNDERSCREEN CLEANER FLUID AND
SOLDER PASTE. OBSERVE MANUFACTURERS’ RECOMMENDED DISPOSAL
INSTRUCTIONS.
NOTE
The cleaning cassettes come in different sizes, ensure the correct size is
replaced.
1. Carry out the procedure in the previous section - Cleaning Cassette and
Solvent Replenishment.

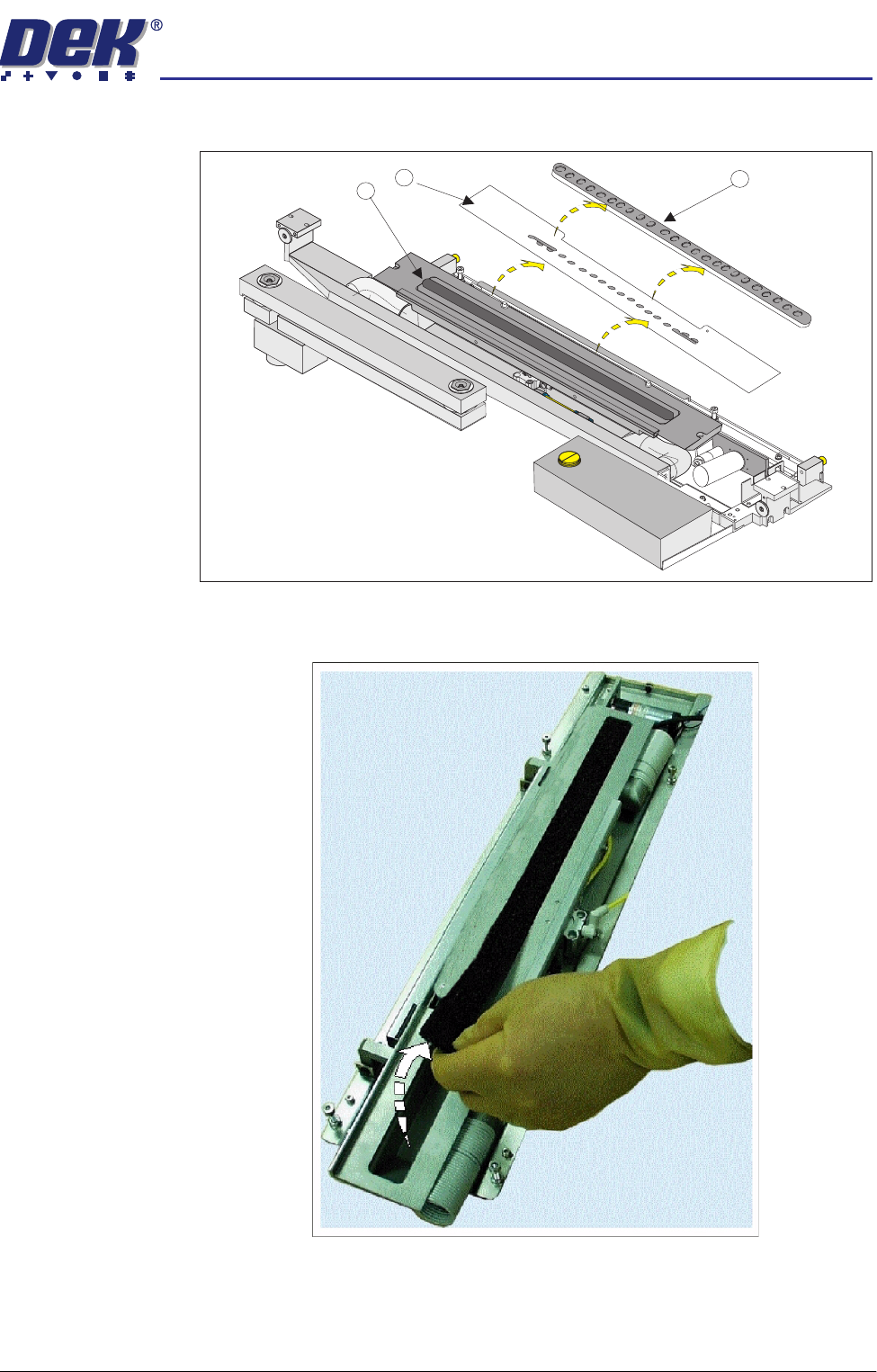

2. Carefully lift the cleaning cassette (1) clear of the two pins (2) and slide out
from beneath the solvent spray bar (3).
3. Dispose of the used cleaning cassette in accordance with local authority
guidelines.
4. If the filter is to be replaced continue with Step 4. If the filter cassette is not
being replaced go to Step 7.
1
2
2
3
semi automatic
&21680$%/(5(3/(1,6+0(176
9257(;3/8681'(56&5((1&/($1(5
Software Version 07SP02 User Manual 8.35
5. Remove the gasket (4) and the top plate (5).
6. Remove and Dispose of the used filter (6) in accordance with local authority
guidelines.
4
5
6
semi automatic
&21680$%/(5(3/(1,6+0(176
9257(;3/8681'(56&5((1&/($1(5
8.36 User Manual Software Version 07SP02
7. Fit the new filter (6), fit the top plate (5) and the vacuum adaptor(4).
8. Fit the edge of the new cleaning cassette (1) beneath the solvent bar (3) and
snap into place on the two pins (2).
9. Press Prime Solvent (F6) key. The message ‘Press the two button
control buttons to prime solvent.’ is displayed.
10. Prime the solvent using the two button control.
11. Select Exit (F8).
12. Close the printhead cover.
4
5
6
1
2
2
3
Change
Screen
Board
Clamps
Prime
Solvent
Exit
Exit
