8.36 User Manual Software Version 07SP02
7. Fit the new filter (6), fit the top plate (5) and the vacuum adaptor(4).
8. Fit the edge of the new cleaning cassette (1) beneath the solvent bar (3) and
snap into place on the two pins (2).
9. Press Prime Solvent (F6) key. The message ‘Press the two button
control buttons to prime solvent.’ is displayed.
10. Prime the solvent using the two button control.
11. Select Exit (F8).
12. Close the printhead cover.
4
5
6
1
2
2
3
Change
Screen
Board
Clamps
Prime
Solvent
Exit
Exit
semi automatic
&21680$%/(5(3/(1,6+0(176
648((*((6
Software Version 07SP02 User Manual 8.37
SQUEEGEES
Fitting the
Squeegees

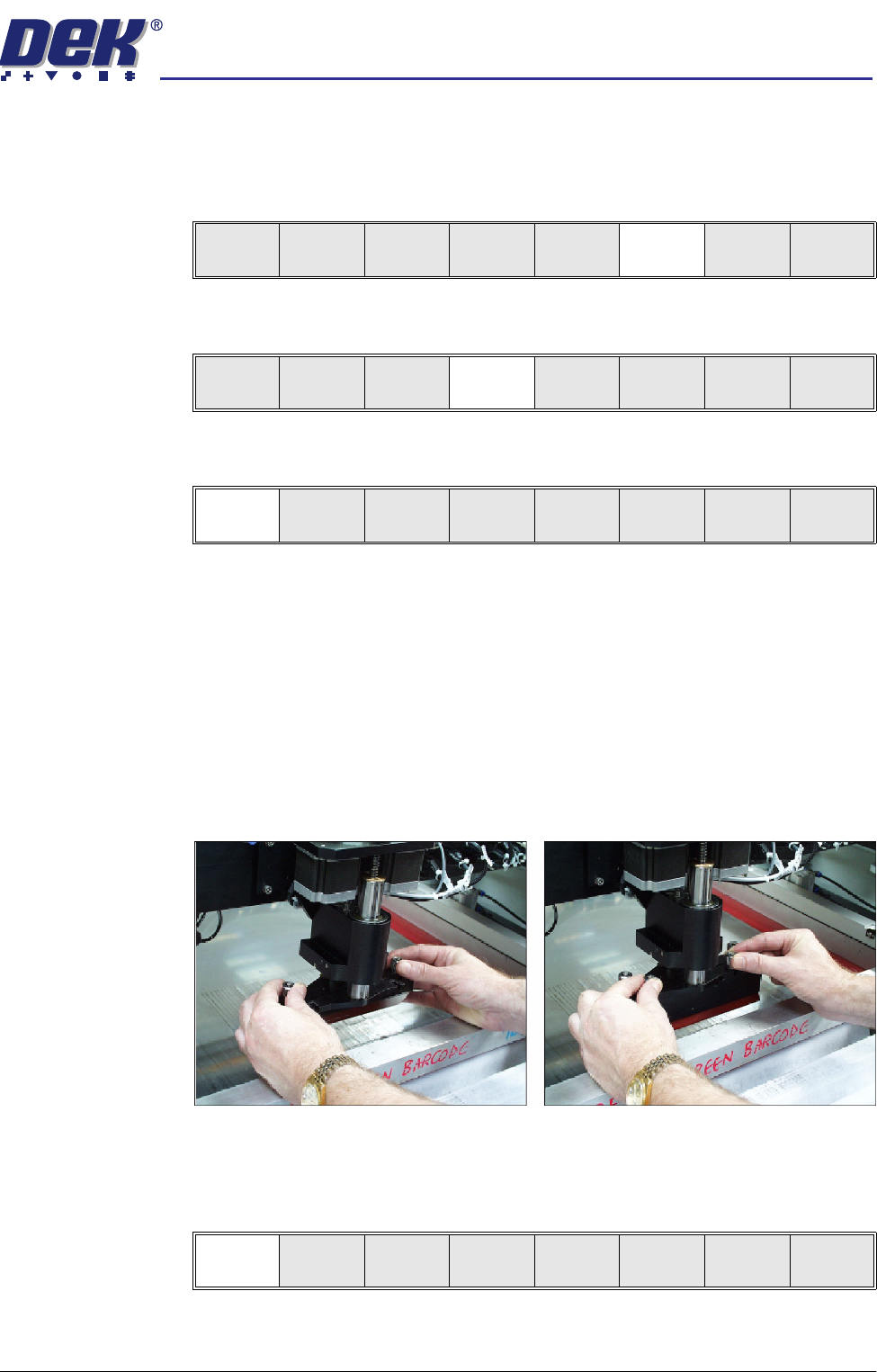

From the status page:
1. Press Setup (F6).
2. Press Setup Squeegee (F4).
3. Press Change Squeegee (F1).
The message ‘Open cover and change squeegees’ is displayed.
4. Raise the printhead cover.
The front and rear squeegees must be fitted in the correct positions. Each
squeegee has a key-way machined into it to ensure that it cannot be
incorrectly fitted.
5. Fit the rear squeegee onto the rear squeegee mount tightening the thumb-
screws until they are finger tight.
6. Fit the front squeegee onto the front squeegee mount again ensuring that
the thumbscrews are only finger tight.
7. Lower the printhead cover.
8. Press the System button.
9. Press Continue (F1).
10. If fitted, remove stencil.
Run
Open
Cover
Paste
Load
Clean
Screen
Setup Monitor Maint.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change
Squeegee
Calibrat
Heights
Exit
Continue
semi automatic
&21680$%/(5(3/(1,6+0(176
648((*((6
8.38 User Manual Software Version 07SP02
Squeegee
Pressure Height

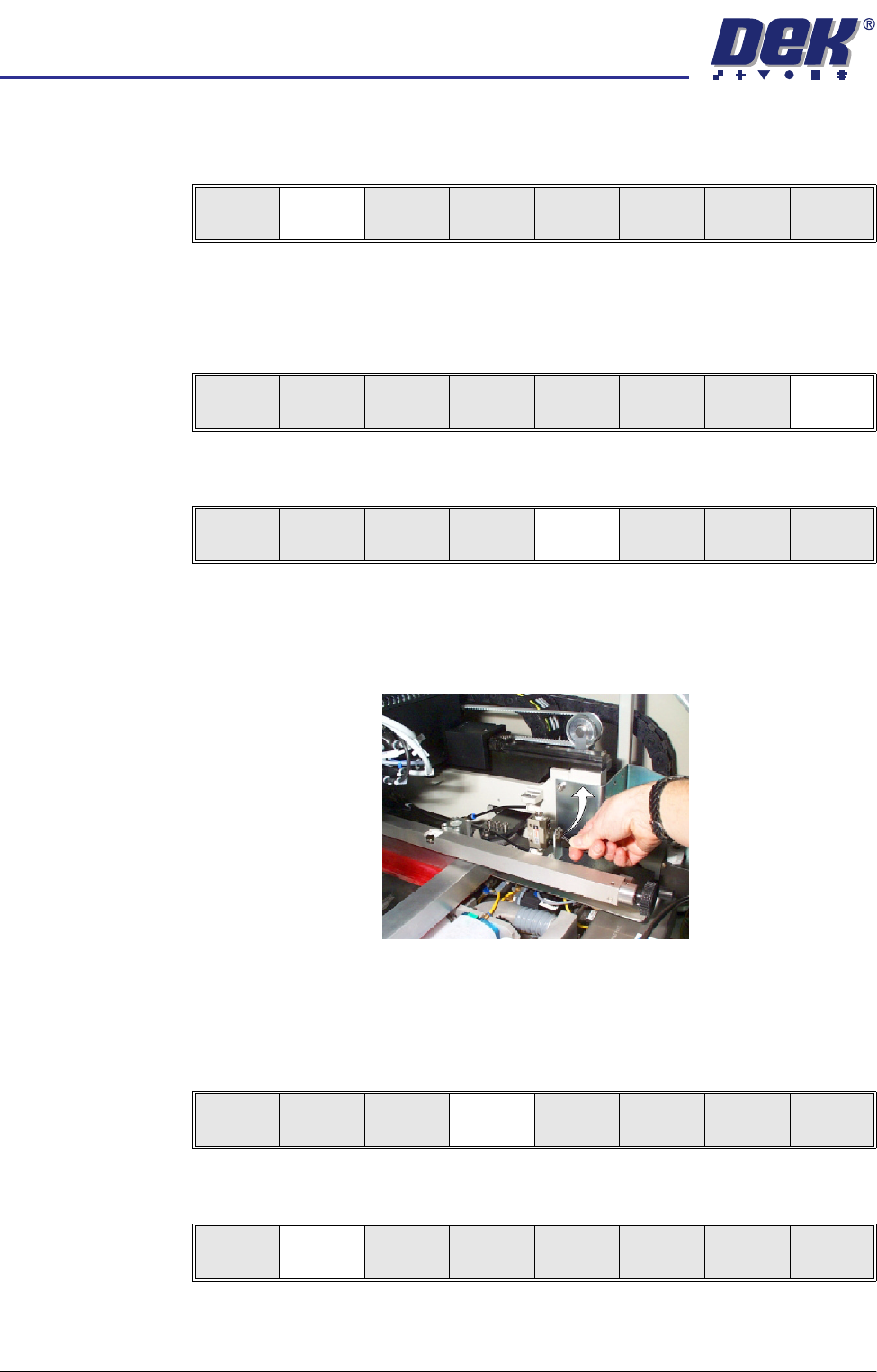

Carry out the following calibration following squeegee change.
1. Select Calibrat Heights (F2).
The message ‘Remove Screen Before Commencing Pressure Calibra-
tion’ is displayed.
2. Press Exit (F8).
3. Press Change Screen (F5).
The message ‘Open Cover and Remove Screen’ is displayed.
4. Raise the printhead cover.
5. Toggle screen clamp switch to the UP position (OFF) (standard chase only).
6. Remove the stencil from the machine.
7. Lower the printhead cover.
8. Press the System button.
9. Press Setup Squeegee (F4).
10. Press Calibrat Heights (F2).
The message ‘Ensure that the Correct Squeegees are fitted ’is dis-
played.
Change
Squeegee
Calibrat
Heights
Exit
Change
Squeegee
Calibrat
Heights
Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Change
Squeegee
Calibrat
Heights
Exit
