Software Version 07SP02 User Manual 8.43
18. Select Proceed (F1). The ProFlow unit is placed in contact with the stencil.
19. Raise the printhead cover.
20. To gain access to the transfer head (1), release the latch on the front of the
pressure mechanism (2) and raise the mechanism forward and upwards to
engage the spring locking device.
21. To release the carrier from the transfer head, unscrew the thumbscrews at
each end of the carrier to loosen the clamp brackets.
Proceed
Select
Another
2
1
Thumbscrew
Thumbscrew
Loosening Carrier Brackets
semi automatic
&21680$%/(5(3/(1,6+0(176
352)/2:
8.44 User Manual Software Version 07SP02

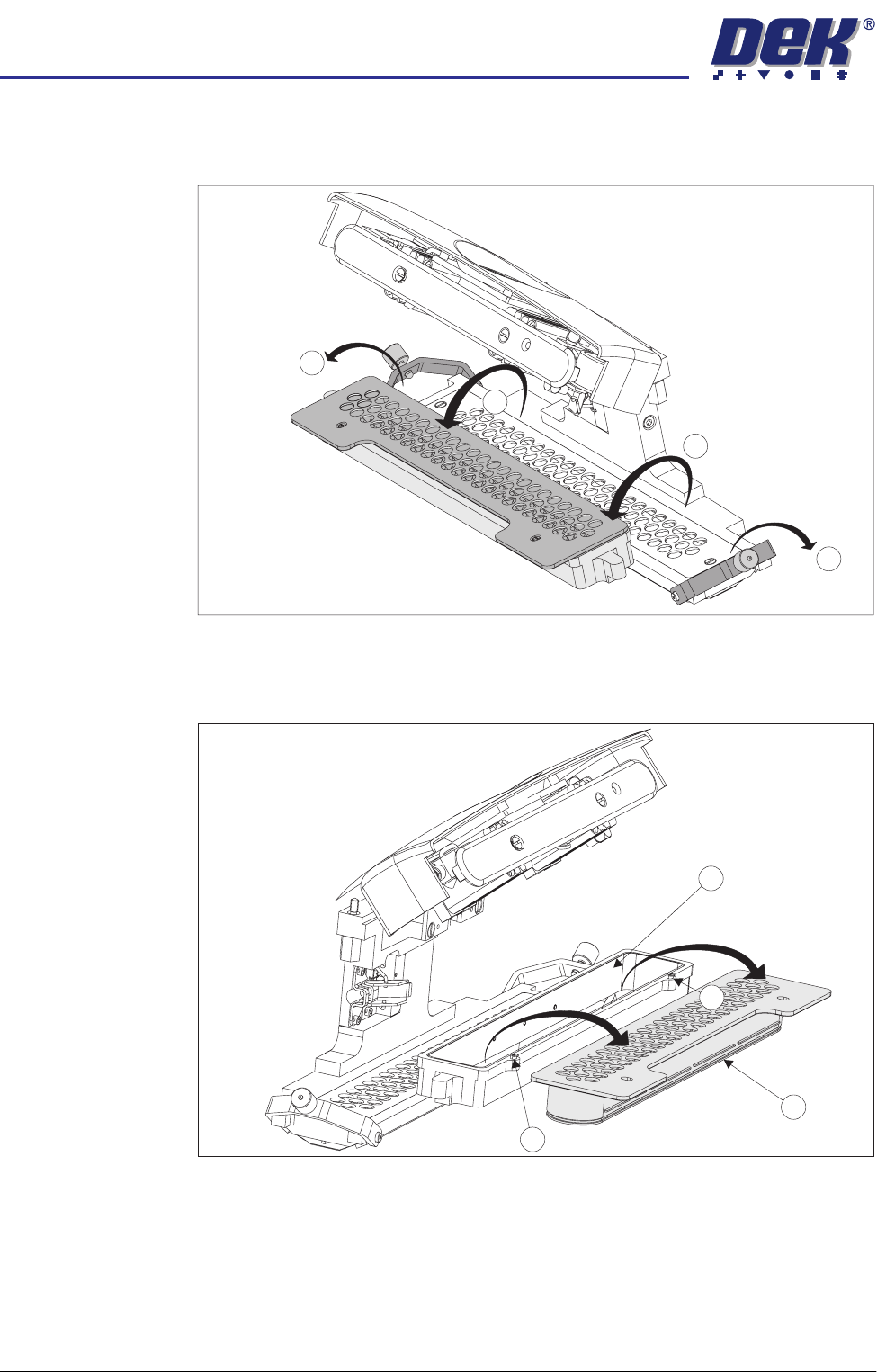

22. Hinge the clamp brackets (1) outwards. Hinge the carrier and cassette (2)
towards the front of the machine exposing the top of the cassette.
23. Carefully remove the empty cassette (1) from the carrier (2) by lifting the
cassette clear of the retaining pins (3) sited at each end of the carrier unit.
24. Dispose of the empty cassette in accordance with local authority guidelines.
2
1
1
2
3
2
3
1
semi automatic
&21680$%/(5(3/(1,6+0(176
352)/2:
Software Version 07SP02 User Manual 8.45
25. Remove the snap fit lid from a new cassette. Fit a new cassette (1) into the
carrier recess (2) and secure into place with the retaining pins (3).
26. Remove the sealing foil from the top of the new cassette.
27. Hinge the clamp brackets (1) inwards to position the cassette onto the
transfer head, secure in place by tightening the thumbscrews (2).
28. Lower the pressure mechanism (3) in place until the latch engages.
29. Lower the printhead cover.
30. Press the System button.
31. Select Setup ProFlow (F4).
3
2
1
3
2
2
3
1
1
Mode
Load
Data
Edit
Data
Setup
ProFlow
Change
Screen
Change
Tooling
Change
Language
Exit
