semi automatic
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.50 User Manual Software Version 07SP02

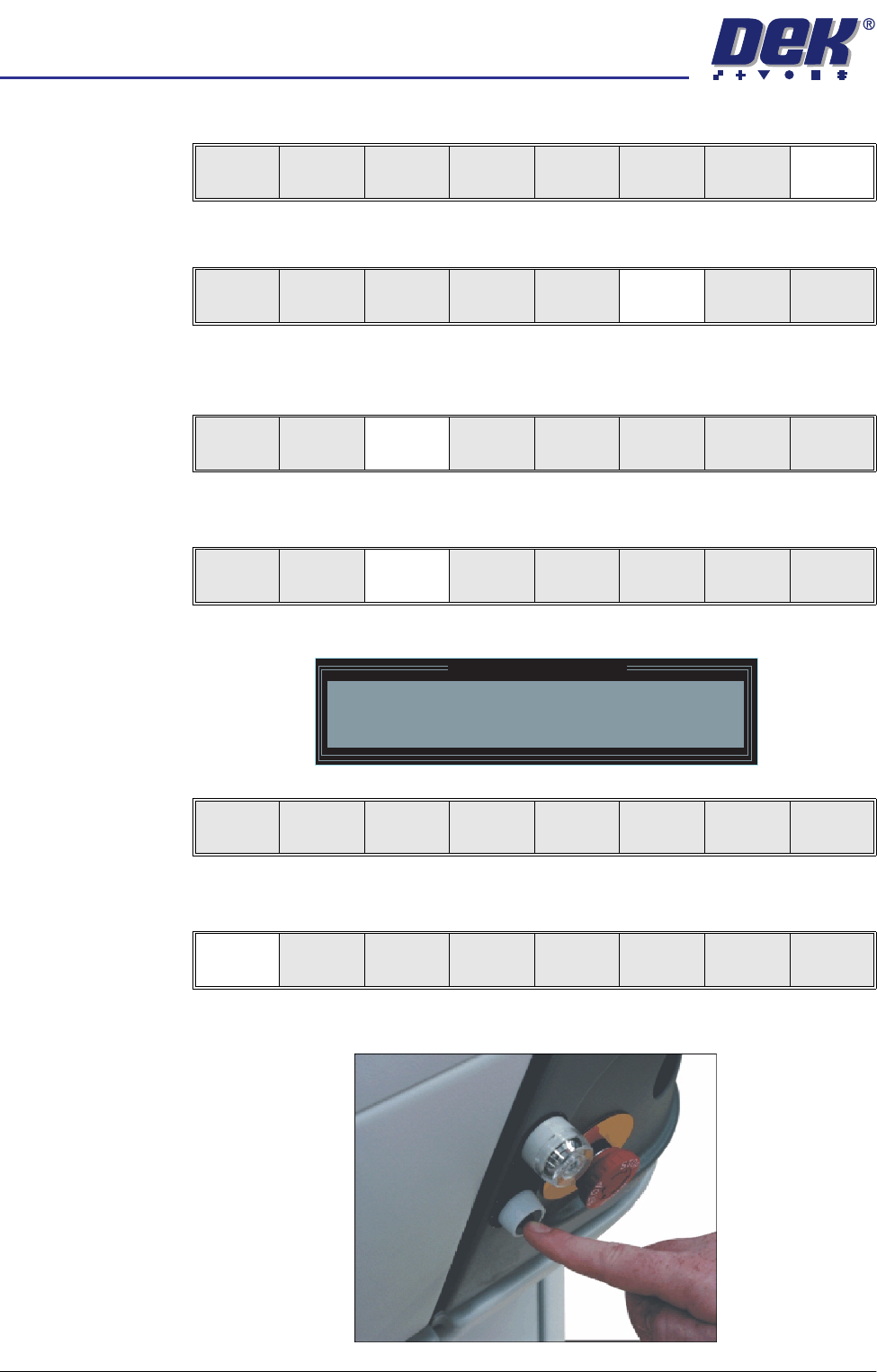

32. Select Exit (F8).
33. Select Change Screen (F5).
34. Select Vision Height (F3). The message ‘Table at Vision Height. Check
Tooling Clearance’ is displayed.
35. Select Contact Height (F3).
The following window and menu bar are displayed:
36. Select Continue (F1). The message ‘Table at Contact Height. Check
Tooling Clearance.’ is displayed.
37. Press the operator switch on the front of the machine covers.
Board
Clamps
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Unload
Vision
Height
Home
Height
Board
Clamps
Change
Screen
Open
Cover
Exit
Contact
Height
Transprt
Height
Change
Screen
Open
Cover
Exit
Contact Height Warning
WARNING Check for obstructions between
the Rails and the Screen
Continue
Open
Cover
Exit
Continue
Open
Cover
Exit
semi automatic
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
Software Version 07SP02 User Manual 1.51
38. Wait until the pneumatic indicator on the front cover displays green.
39. Select Exit (F8).
40. Select Exit (F8).
The following window and menu bar is displayed:
41. Select Continue (F1).
42. Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
43. Remove the board from the rails.
44. Select Continue (F1).
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue
Open
Cover
semi automatic
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.52 User Manual Software Version 07SP02
45. Select Change Screen (F5).
46. Raise the printhead cover.
47. Toggle screen clamp switch to the up position (Off) (standard chase only).
48. Remove the screen from the printer and release the universal set plate from
the screen.
49. Ensuring correct orientation, refit the screen.
50. Toggle screen clamp switch position to down position (On) (standard chase
only).
51. Lower the printhead cover.
52. Press the System button.
53. Go to Stage 8.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
