Software Version 07SP02 User Manual 1.51

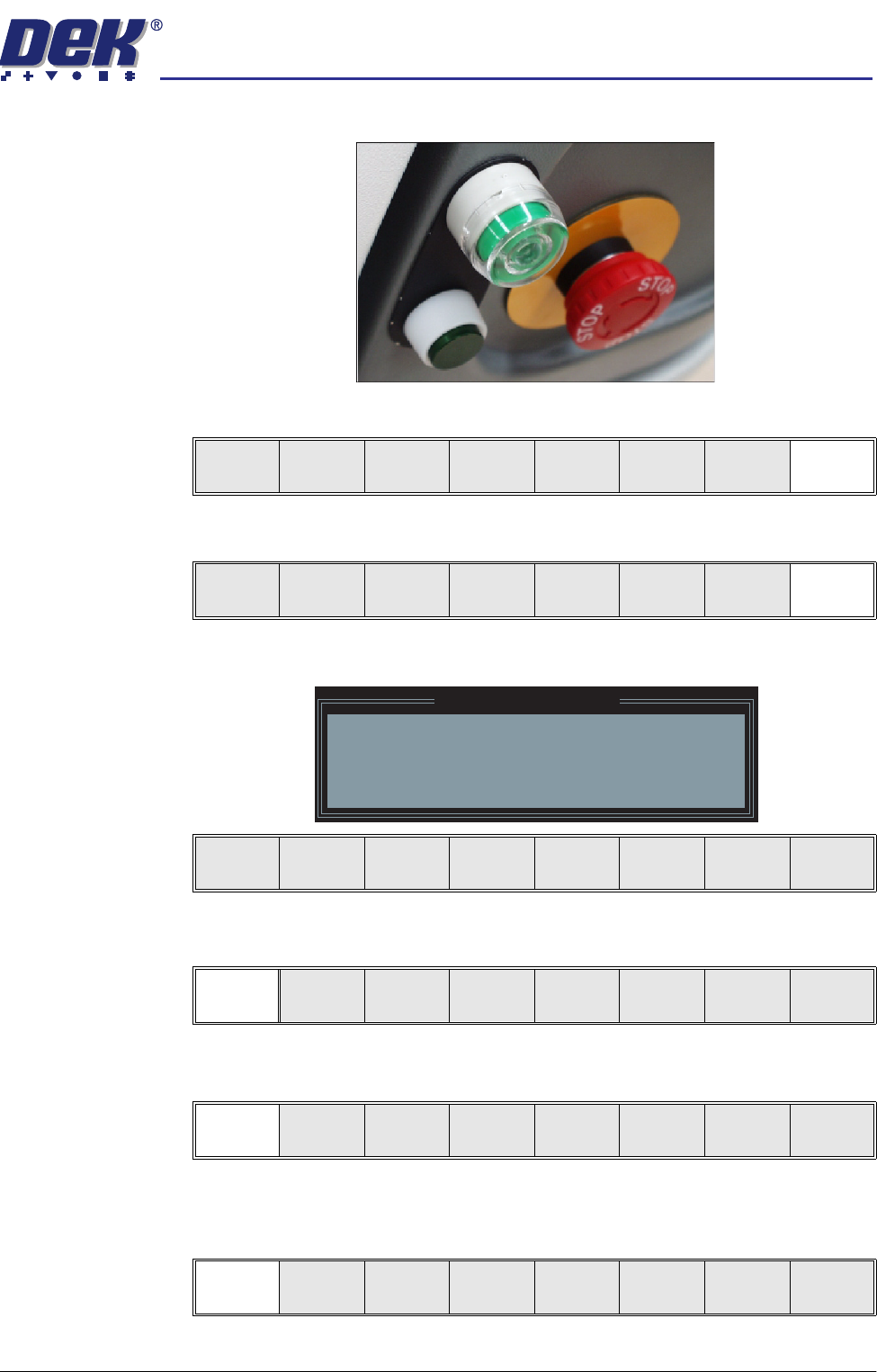

38. Wait until the pneumatic indicator on the front cover displays green.
39. Select Exit (F8).
40. Select Exit (F8).
The following window and menu bar is displayed:
41. Select Continue (F1).
42. Select Auto Board (F1). The message ‘Board on rails, remove and
continue’ is displayed.
43. Remove the board from the rails.
44. Select Continue (F1).
Exit
Vision
Height
Open
Cover
Exit
Leaving Generic Tooling
WARNING You are about to return
to the Setup Page
Clear all tooling setup
equipment before proceeding
Continue Cancel
Continue Cancel
Auto
Board
Manual
Board
Continue
Open
Cover
semi automatic
0$&+,1(352*5$00,1*
67$*(()250)/(;722/,1*
1.52 User Manual Software Version 07SP02
45. Select Change Screen (F5).
46. Raise the printhead cover.
47. Toggle screen clamp switch to the up position (Off) (standard chase only).
48. Remove the screen from the printer and release the universal set plate from
the screen.
49. Ensuring correct orientation, refit the screen.
50. Toggle screen clamp switch position to down position (On) (standard chase
only).
51. Lower the printhead cover.
52. Press the System button.
53. Go to Stage 8.
Mode
Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
semi automatic
0$&+,1(352*5$00,1*
67$*(6&5((1/2$'
Software Version 07SP02 User Manual 1.53

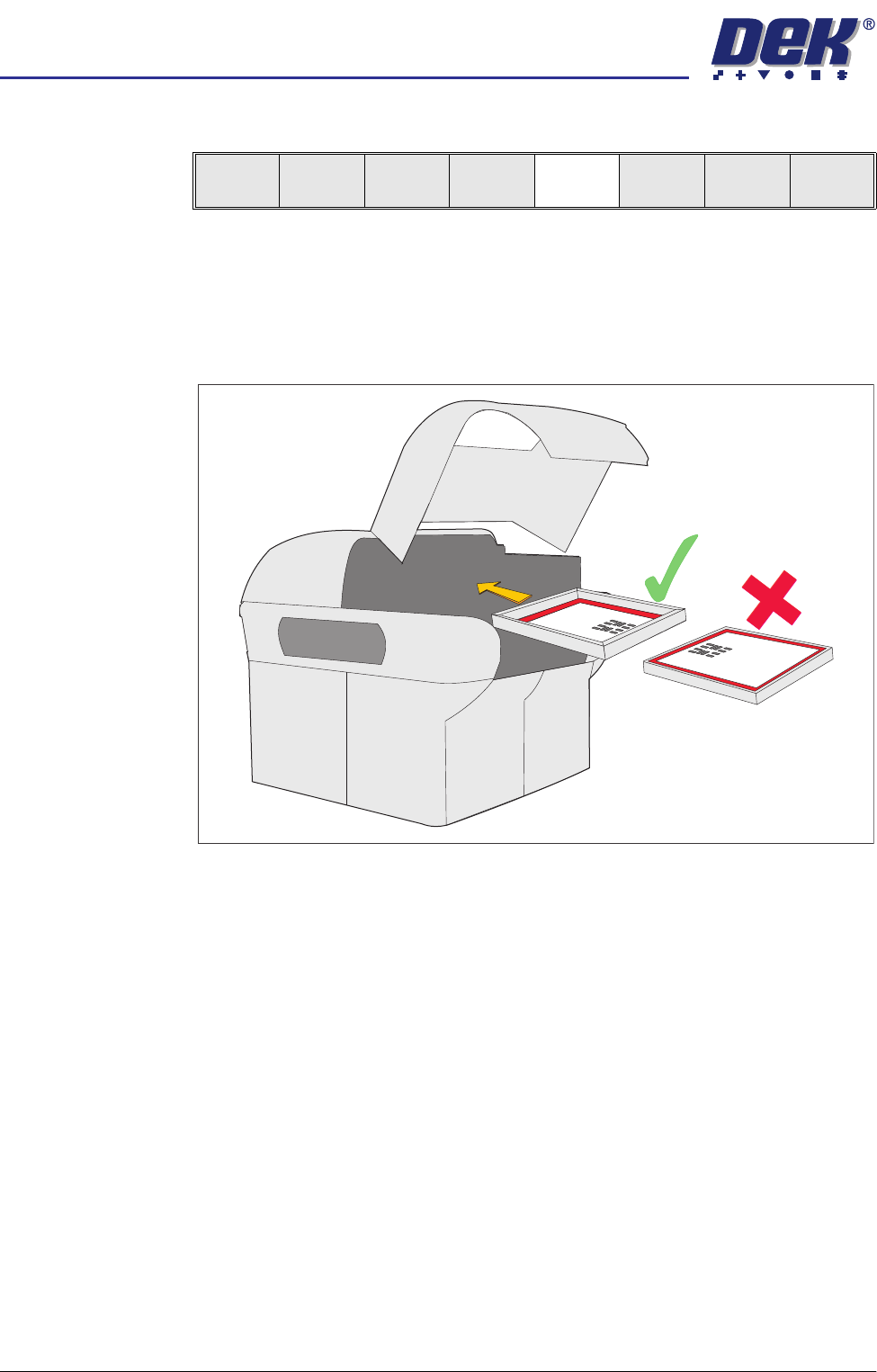

STAGE 7 - SCREEN LOAD
1. Raise the printhead cover.
2. If ASM is fitted continue with Step 3. If the standard chase is fitted go to Step
5b.

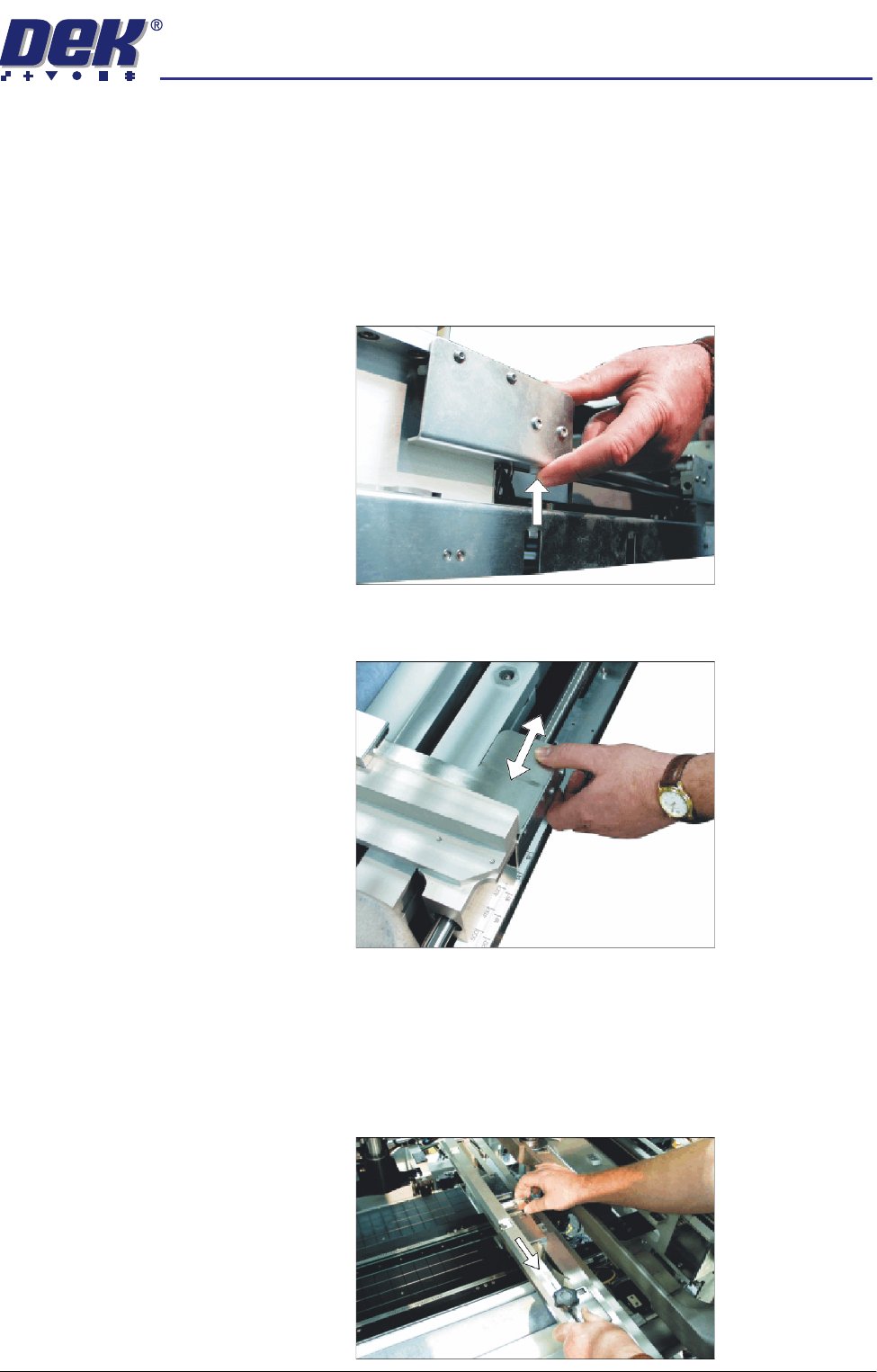

3. To adjust the width of the chase rails to accommodate the stencil for the
product file loaded, carry out the following:
a. Press and hold the left hand chase rail push button valve.
b. Slide the left hand chase rail to the desired position indicated on the
graduated scale.
c. Release the push button valve.
d. Repeat the procedure for the right hand chase rail.
4. If the stencil size is less than 29″ x 29″ the screen depth adjuster position is
to be adjusted as follows:
a. Slide the screen depth adjuster towards the front of the machine.
