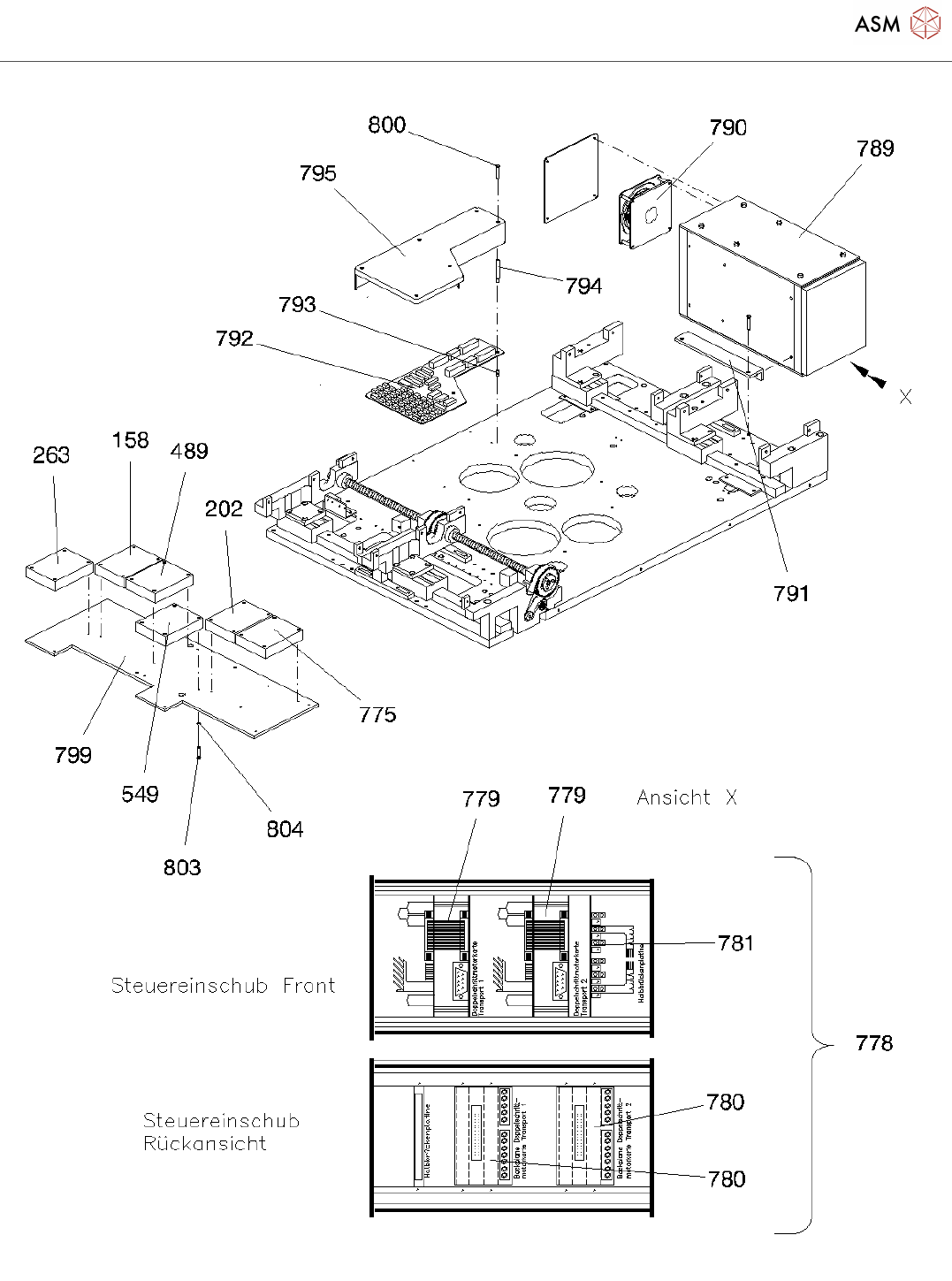

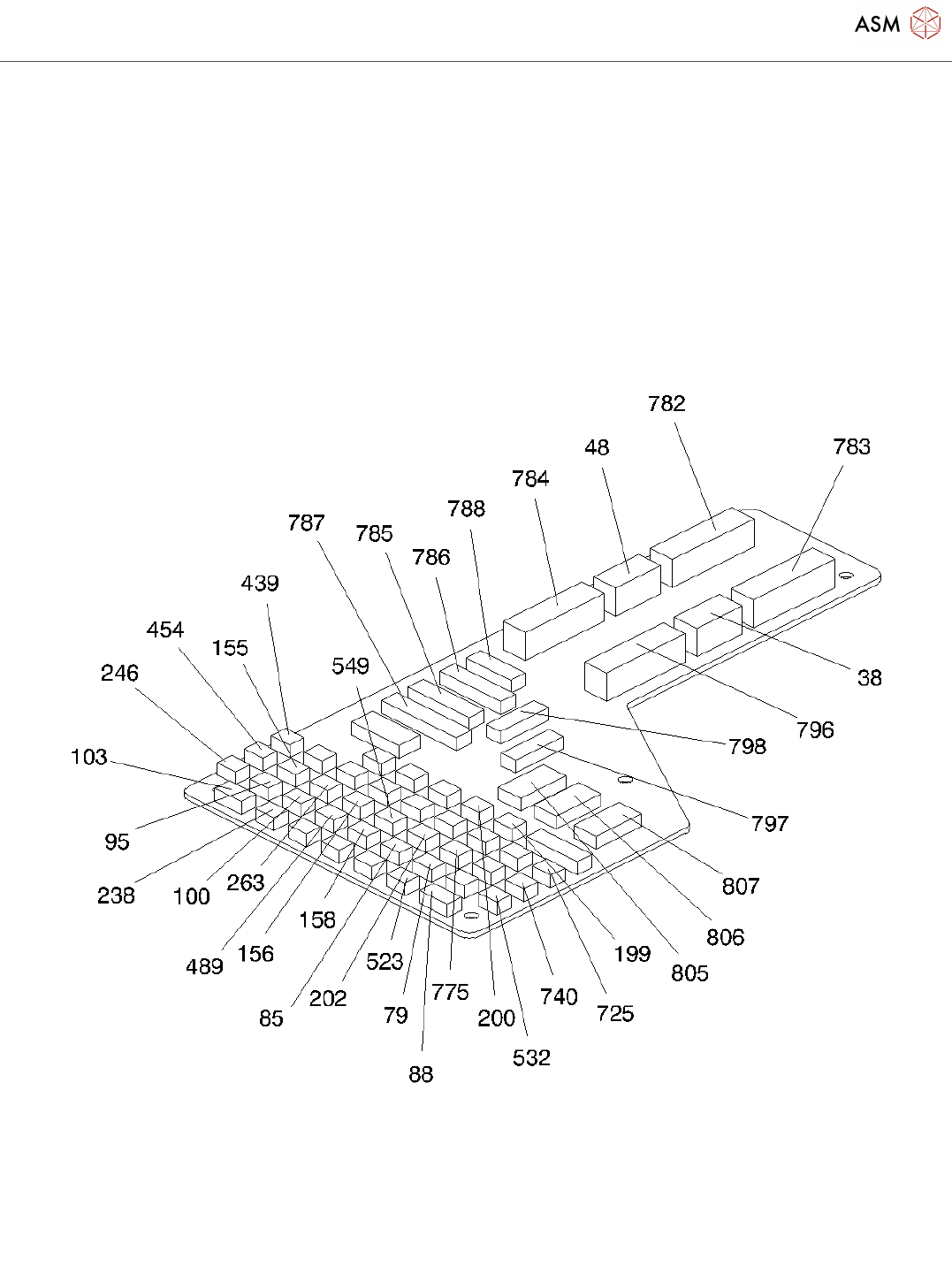

Dual conveyor fixed conveyor side left side
Page 26 / 45 19.11.2021
Dual conveyor fixed conveyor side left side
Page 27 / 45 19.11.2021
Dual conveyor fixed conveyor side left side
Page 28 / 45 19.11.2021
Pos. Item no. Description Part marking
1 00116045-03 DUAL CONVEYOR, FIXED
CONVEYOR RAIL LEFT
2 00325192-02 PCB LIFTING TABLE F. DUAL-
CONVEYOR
4 02100530-01 SHAFT SEALING RING G20X28X4 SPARE PART
5 00302081-01 DIN 908 - M 16 X
1.5-ST,CHEM.VERN.
STANDARD PARTS
6 00317785-03 SYNCHRONIZING GEAR 2 AL T5/Z70 SPARE PART
7 00845024-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 8-8.8
8 00619870-01 PARALLEL PIN
9 00317784-01 THRUST BEARING
10 00845057-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 12-8.8
11 00317782-01 TOOTHED BELT SYNCHROFLEX
16T5/455
WEAR PART
12 00325791-02 BASE PLATE FOR LIFTING DRIVE SPARE PART
13 00325191-02 LIFTING TABLE PLATE 1 F.DUAL-
CONVEYOR
14 00325325-02 LIFTING TABLE PLATE 2 F.DUAL-
CONVEYOR
15 00845027-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 16-8.8
16 00317789-01 BUILT-IN ELEMENT LEL 71001A SPARE PART
17 00321031-03 INTERMEDIATE DISK
18 00321032-01 DU-ACCELERATING DISK
19 00845059-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 20-8.8
20 00321612-01 STOP DISK
21 00335671-01 SPINDLE WITH STOP ASSEMBLED
22 00317783-02 BOTTOM SPINDLE STOP
23 00309723-01 SPRING TYPE STRAIGHT PIN
24 00317791-02 LIFTING SPINDLE
25 00321032-01 DU-ACCELERATING DISK
27 00317792-01 BALL BEARING HOUSING SPARE PART
28 00302071-02 COLUMN SLEEVE Spare Part
29 00317351S01 SEEGER V-RING JV 28 SPARE PART
30 00302288-01 LINEAR BALL BEARING 20*28*30
KH2030
*
