2.11 Energy State After Switching off Main Switch
2
2.11.1 Main Switch on Placement Machines
2

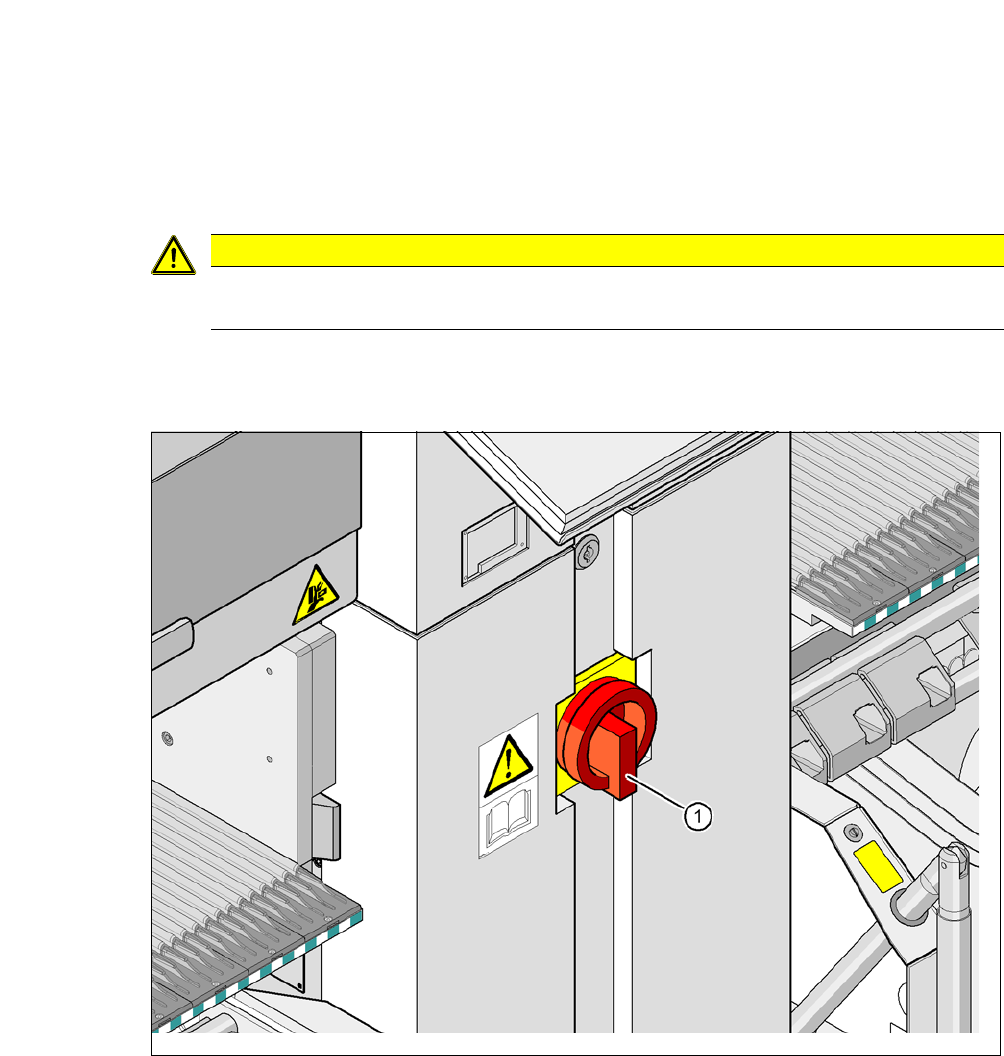

Fig. 2.11 - 1 Position of the power supply on the placement machine
2
CAUTION
Please note that each SWS module has its own main switch.
(1) Main switch
2 Operational Safety User Manual SIPLACE CA-Series
2.11 Energy State After Switching off Main Switch From software version SC.708.0 Edition 12/2014 EN -DRAFT
106
2
DANGER
Dangerous voltage levels!
The machine is supplied with 3 x 208 V~, 3 x 230 V~, 3 x 380 V~, 3 x 400 V~ or
3 x 415 V~ ± 5 %, 50/60 Hz mains voltage. Parts of the system therefore carry lethally
hazardous voltages - even when the main switch is switched off.
Incorrect handling of this machine can therefore result in death or severe injury or consid-
erable damage to equipment.
Always follow the applicable accident prevention and DIN regulations (particularly EN
60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own coun-
try.
The covers over the power supply unit may ONLY be opened by appropriately quali-
fied and trained personnel.
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.11 Energy State After Switching off Main Switch
107
2

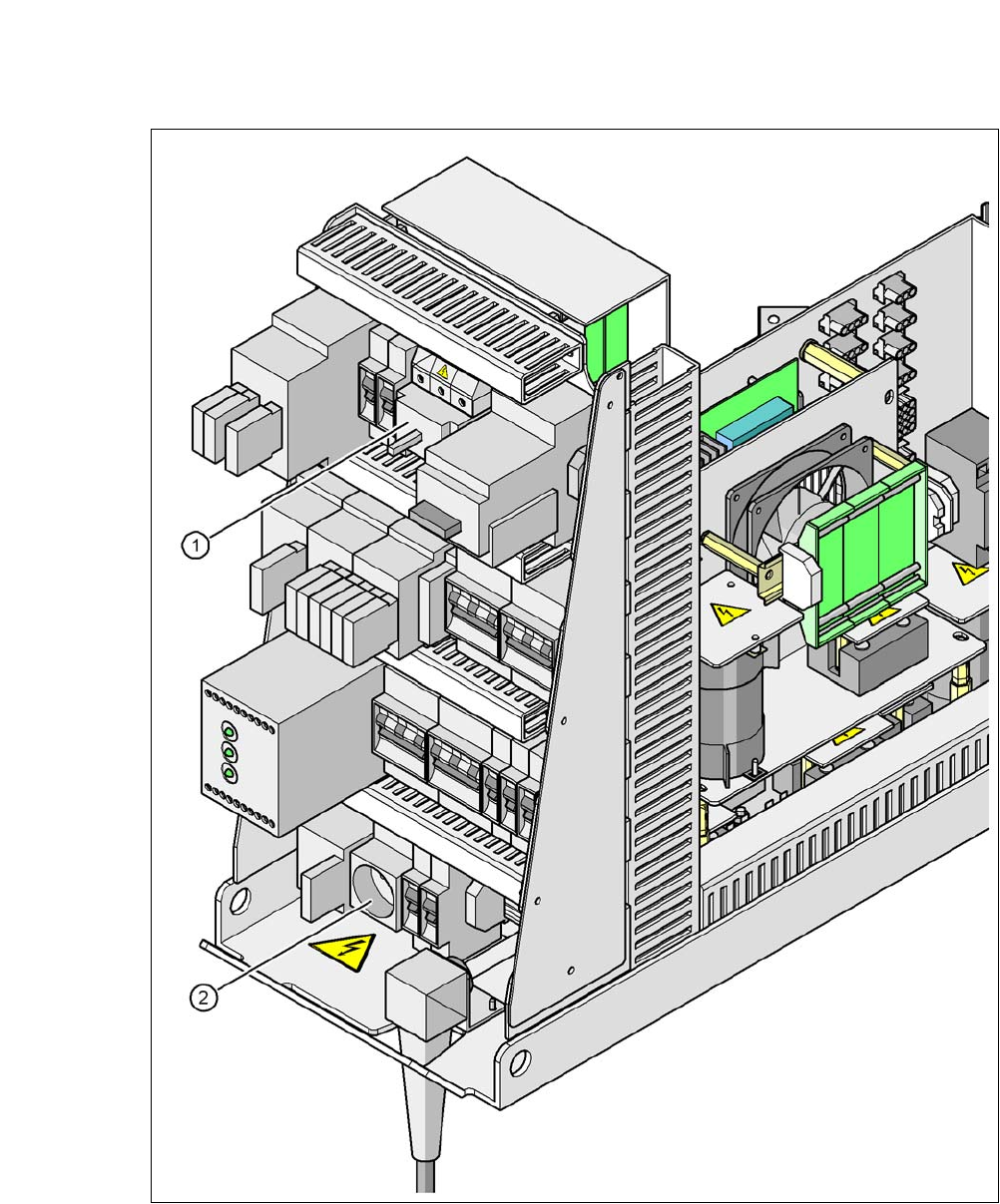

Fig. 2.11 - 2 Position of main switch and service socket
(1) Main switch
(2) Service socket
