User Manual SIPLACE CA-Series 3 Technical Data From software version SC.708.0 Edition 12/20 14 EN -DRAFT 3.4 Dimensions and Weight of th e SIPLACE CA 129 3 Fig. 3.4 - 2 Dimensions of CA4 machine with two SWS in millimete…
3 Technical Data User Manual SIPLACE CA-Series
3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT
128
3.4 Dimensions and Weight of the SIPLACE CA
3.4.1 CA4 Machine Dimensions
3

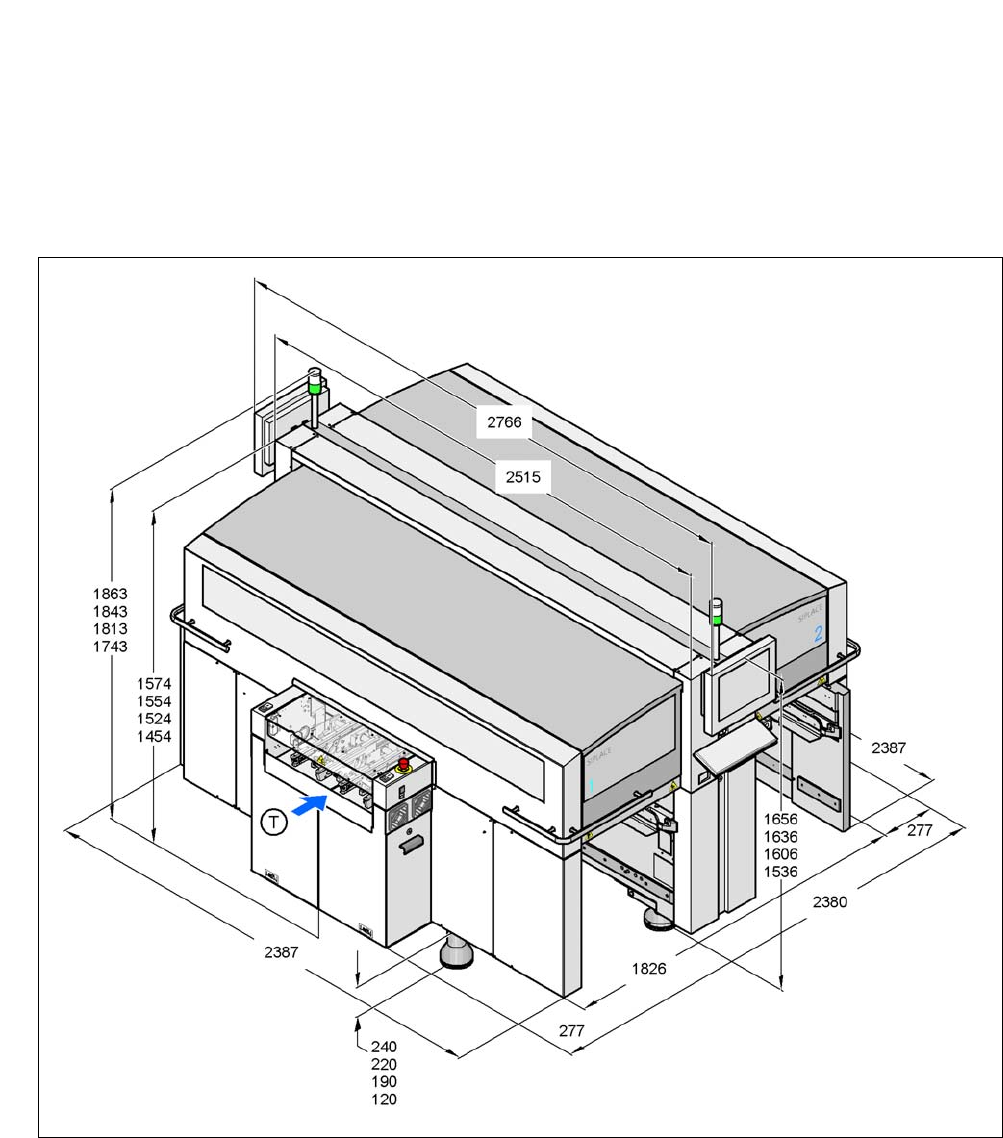

Fig. 3.4 - 1 Dimensions of the CA4 machine (basic machine) in millimeters
(T) Direction of PCB transport
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.4 Dimensions and Weight of the SIPLACE CA
129
3

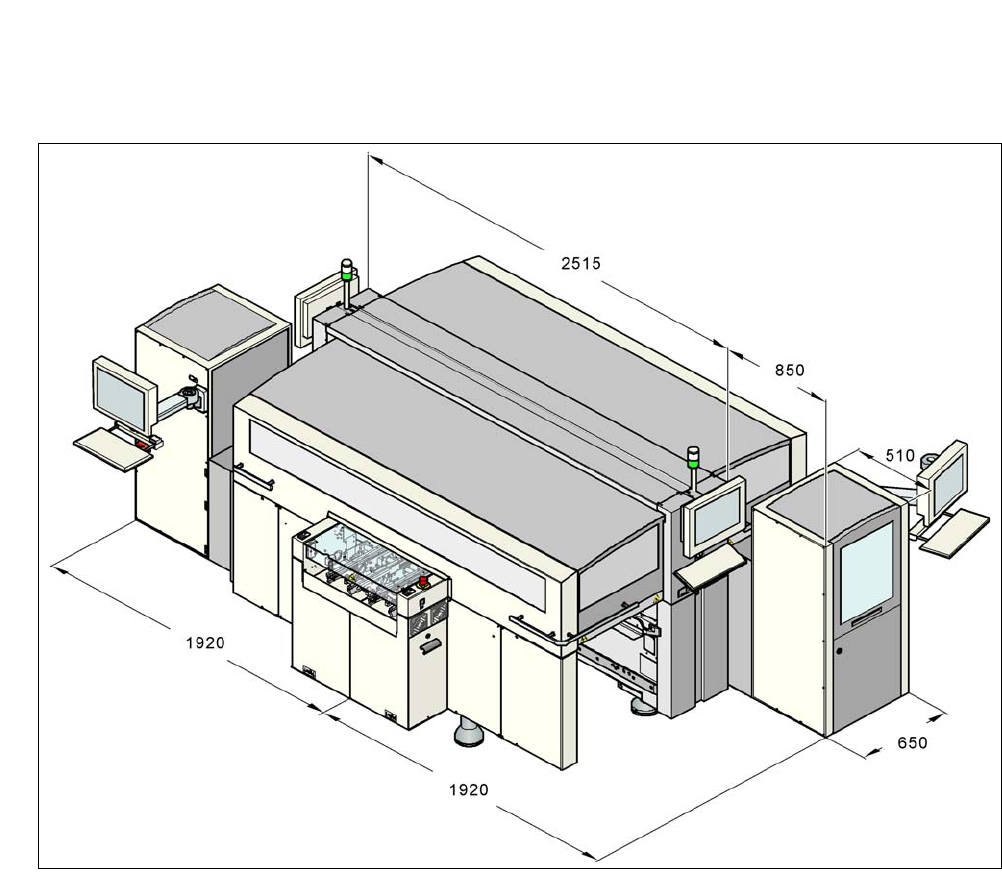

Fig. 3.4 - 2 Dimensions of CA4 machine with two SWS in millimeters
3 Technical Data User Manual SIPLACE CA-Series
3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT
130
3.4.2 Height of Open Protective Covers
3

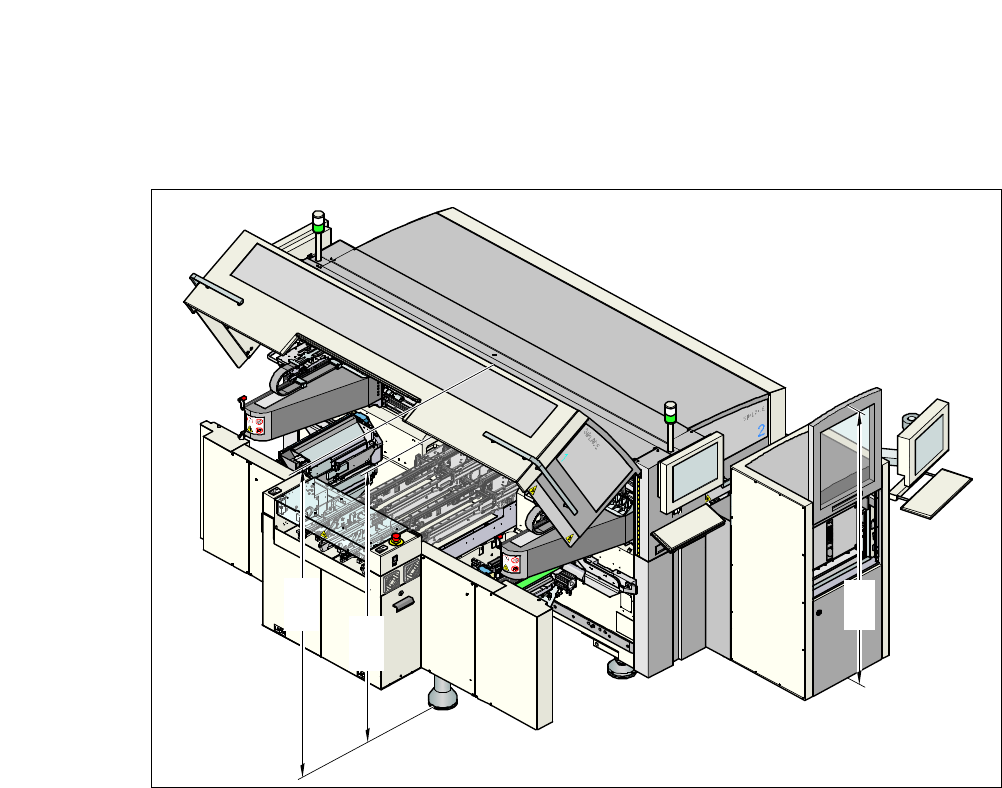

Fig. 3.4 - 3 Height of open protective covers - dimensions in millimeters
2110
2090
2060
1990
1840
1820
1790
1720
1960
1940
1910
1840
