3 Technical Data User Manual SIPLACE CA-Series 3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT 132 3.4.3.2 Machine Foot Clearances and the Fixed Left Edge of Sin gle P…
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.4 Dimensions and Weight of the SIPLACE CA
131
3.4.3 Machine Foot Clearances and the Fixed PCB Conveyor Edges
3.4.3.1 Machine Foot Clearances and the Fixed Right Edge of Single PCB Conveyors
3

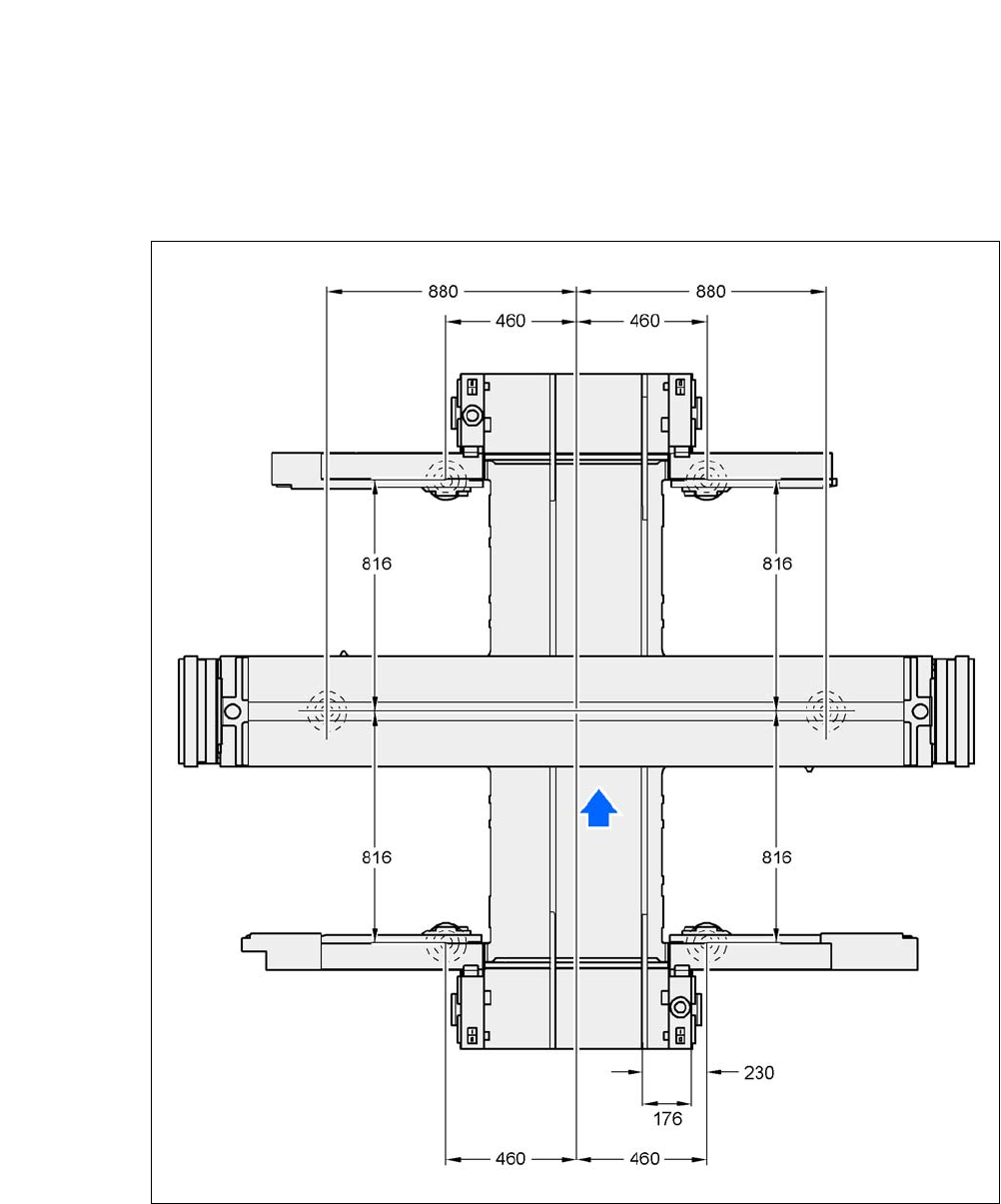

Fig. 3.4 - 4 Machine foot clearances and the fixed right edge of single PCB conveyors in millimeters
3 Technical Data User Manual SIPLACE CA-Series
3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT
132
3.4.3.2 Machine Foot Clearances and the Fixed Left Edge of Single PCB Conveyors
3
Fig. 3.4 - 5 Machine foot clearances and the fixed left edge of single PCB conveyors in millimeters
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.4 Dimensions and Weight of the SIPLACE CA
133
3.4.3.3 Machine Foot Clearances and the Fixed Right Edge of Dual PCB Conveyors
3
Fig. 3.4 - 6 Machine foot clearances and the fixed right edge of dual PCB conveyors in millimeters
