User Manual SIPLACE CA-Series 3 Technical Data From software version SC.708.0 Edition 12/20 14 EN -DRAFT 3.4 Dimensions and Weight of th e SIPLACE CA 137 3.4.6 Maneuvering Dist ance of Com ponent T rolley at CA4 Machines…
3 Technical Data User Manual SIPLACE CA-Series
3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT
136
3.4.5 Technical Data - Weight and Ambient Temperature
3
Weight
CA4 (basic machine)
SWS 12
Changeover table (X)
Changeover table (X),
fully configured with feeder modules
CA4 with 2 SWS
CA4 with 4 SWS
3250 kg
350 kg
95 kg
189 kg
3,950 kg
4,650 kg
Floor space required
CA4 6.70 m²
Load per unit area
*a
*)a The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
CA4 6.88 kN/m²
Number of machine feet 6
Max. noise emissions 75 dB (A)
Room temperature
Between 15°C and 35°C
Atmospheric humidity
30 to 75 %
(on average not higher than 45%, so that there is no
risk of condensation on the machine.)
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.4 Dimensions and Weight of the SIPLACE CA
137
3.4.6 Maneuvering Distance of Component Trolley at CA4 Machines
3
3

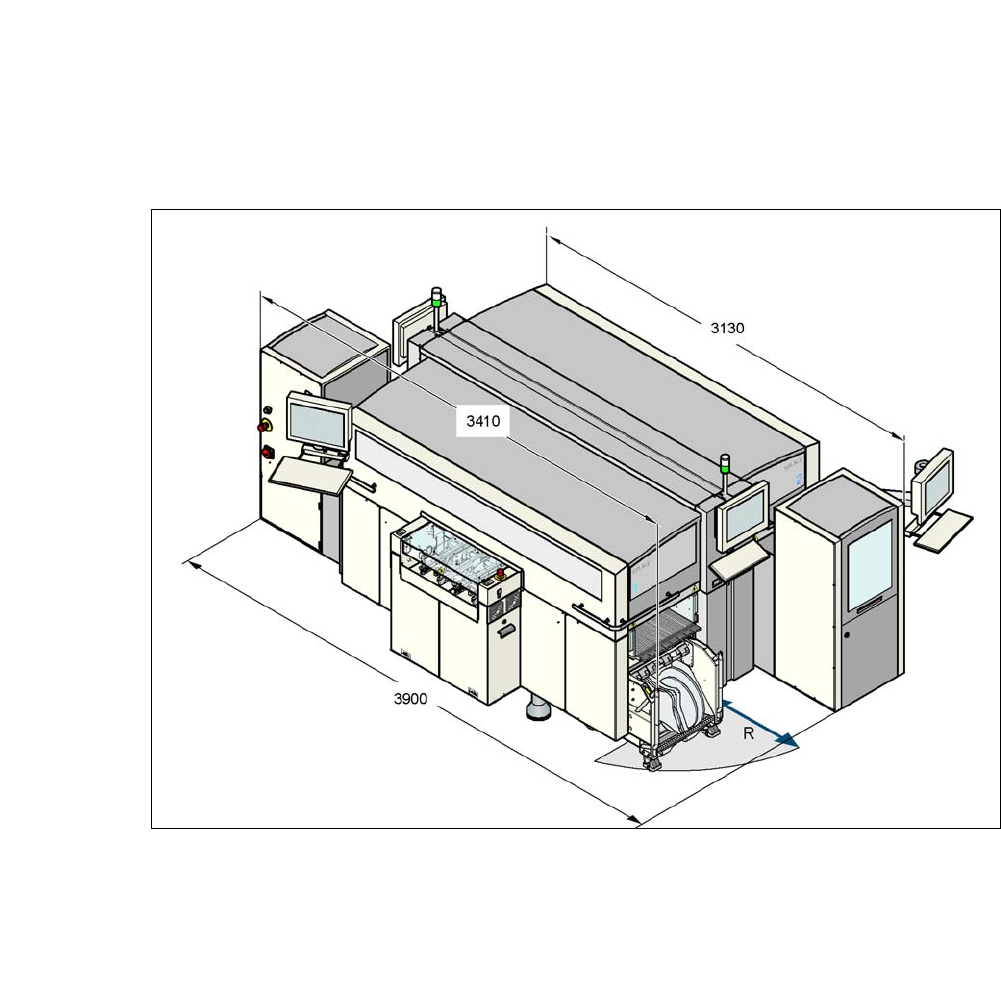

Fig. 3.4 - 8 Maneuvering distance of component trolley at CA4 machines with SWS
The maneuvering distance R of component trolleys at CA4 machines is as follows:
– 750 mm with the handles folded down
– 1050 mm with the handles folded up
3 Technical Data User Manual SIPLACE CA-Series
3.4 Dimensions and Weight of the SIPLACE CA From software version SC.708.0 Edition 12/2014 EN -DRAFT
138
3.4.7 Center of Gravity for CA-Series Machines
3
Fig. 3.4 - 9 Center of gravity for CA-Series machines
3
Center of gravity coordinates:
These center of gravity coordinates relate to placement machines with a PCB conveyor height of
930 mm.
3
CAUTION
Before transportation, remove all changeover tables and SWS from the CA machine.
CA4 machine
Without SWS, without compo-
nent trolley
X coordinate
Y coordinate
Z coordinate
0 mm
0 mm
120 mm height
