User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.7 Placement Heads
159
3.7.2.7 MultiStar in Mixed Mode
The MultiStar processes small to medium sized components in this mode.
3

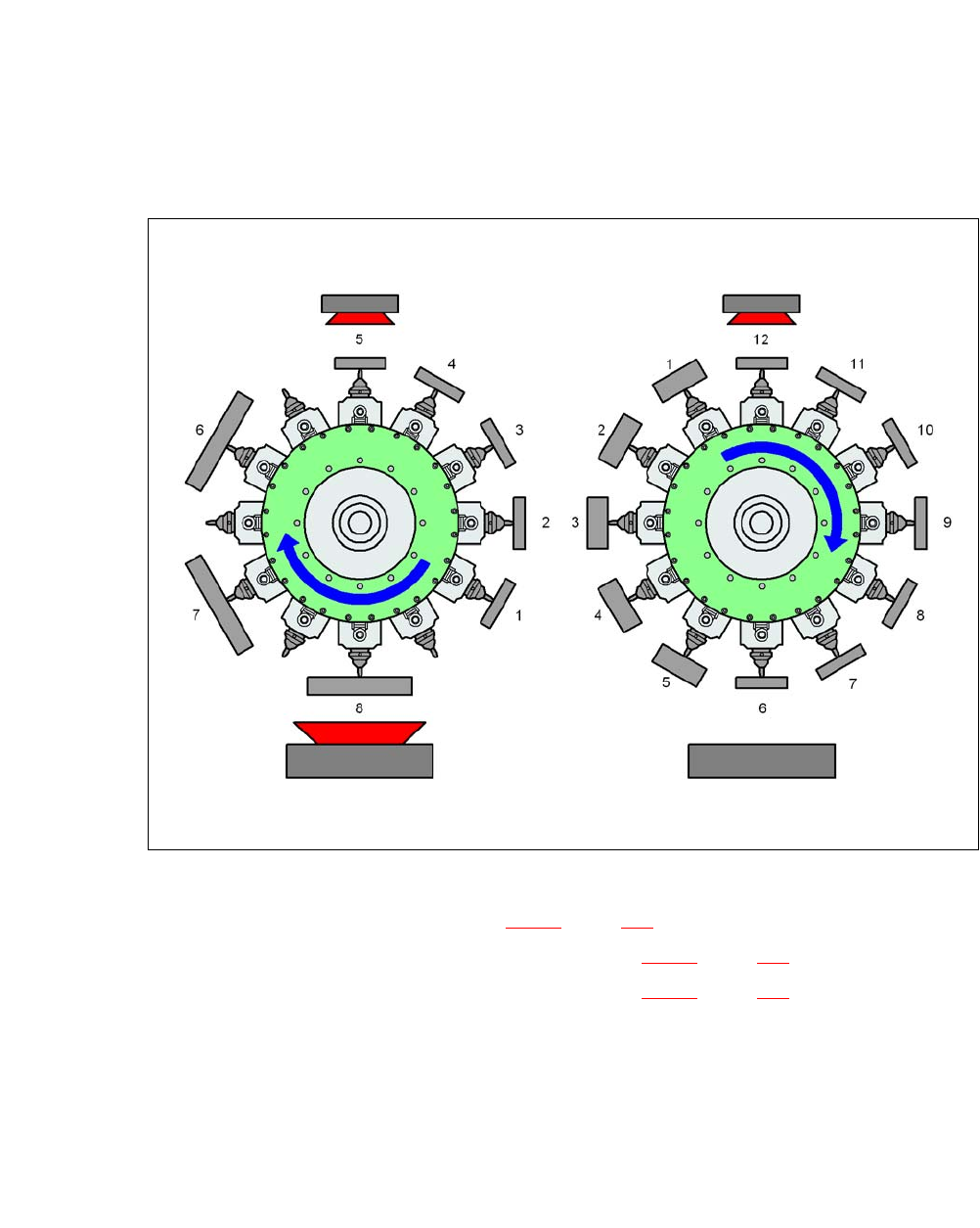

Fig. 3.7 - 8 MultiStar - mixed mode
K_BE Small component (see table 3.7 - 1, page 156)
M_BE_1 Medium sized component, type 1 (see table 3.7 - 1
, page 156)
M_BE_2 Medium sized component, type 2 (see table 3.7 - 1
, page 156)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
1 ... 12 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of type M_BE_2 if the
diagonal length of the medium sized component, type 2 (M_BE_2) is longer than 39.8 mm.
Type 30 Type 30
Type 33 Type 33
K_BE
M_BE_2
M_BE_1
K_BE
3 Technical Data User Manual SIPLACE CA-Series
3.7 Placement Heads From software version SC.708.0 Edition 12/2014 EN -DRAFT
160
3.7.2.8 MultiStar in Advanced Pick&Place Mode
The MultiStar can place the entire component spectrum from 01005 to 50 mm x 40 mm² mm in
this mode. The large components are picked up last, optically centered and then placed as first
components.
3

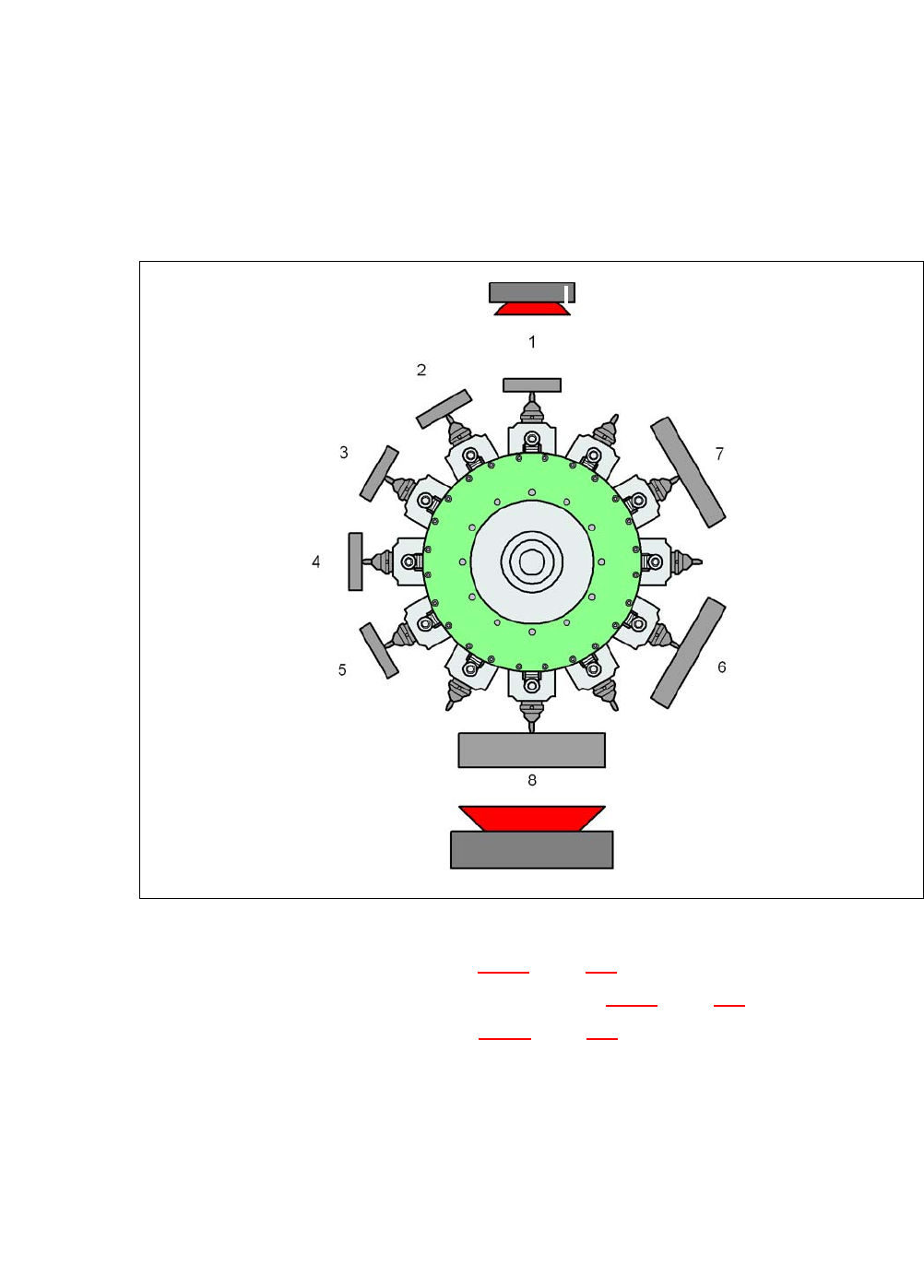

Fig. 3.7 - 9 MultiStar - mixed mode
K_BE Small component (see table 3.7 - 1, page 156)
M_BE_2 Medium sized component, type 2 (see table 3.7 - 1
, page 156)
G_BE Large component (see table 3.7 - 1
, page 156)
Type 30 Component camera, type 30
Type 33 Stationary component camera, type 33
1 ... 8 Order of components taken up
3
Neighboring segments of the CPP head are not able to take up components of types M_BE_2 and
G_BE if the diagonal length of these components is longer than 39.8 mm.
In Pick&Place mode, only one large component is placed per cycle. The CPP head functions as
a Pick&Place head.
Type 30
K_BE
G_BE
Type 33
M_BE_2
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.7 Placement Heads
161
3.7.2.9 Technical Data
3

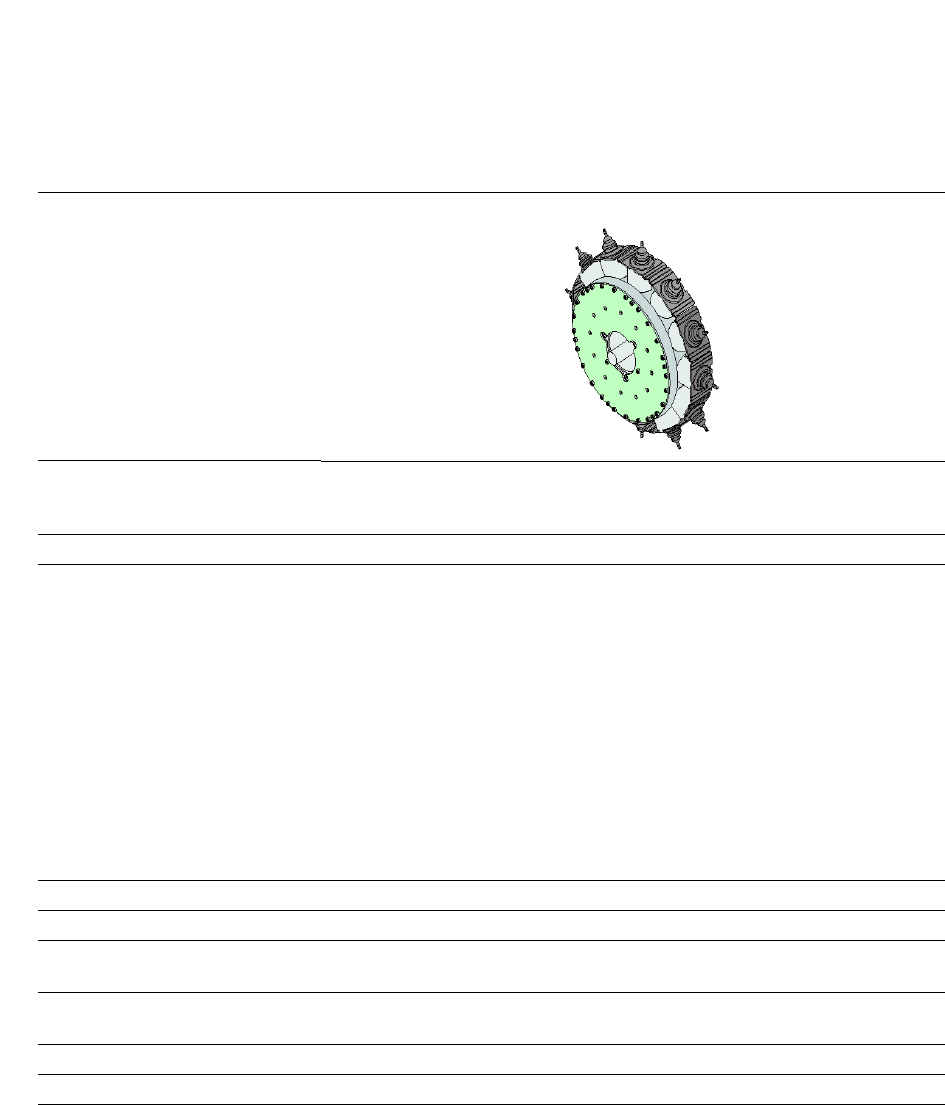

SIPLACE MultiStar (CPP)
with component camera type 30 With component camera
type 33
(stationary camera)
*a
*)a Not in conjunction with SWS and not on location 2/4.
Component range
*b
*)b Please note that the placeable component range is also affected by the pad geometry, the customer-specific stan-
dards, the component packaging tolerances and the component tolerances.
01005 mm to 27 mm x 27 mm 0402 to 50 mm x 40 mm
Component spec.
Max height
*c
Max. height
*d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
*)c CPP head: in low installation position (stationary component camera not possible).
*)d CPP head: in high installation position
6.0 mm
8.5 mm
0.3 mm
0.15 mm
0.25 mm
*e
0.35 mm
*f
0.14 mm
e
0.20 mm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
*)e For components < 18 mm x 18 mm
*)f For components ≥ 18 mm x18 mm
11.5 mm
0.3 mm
0.15 mm
0.35 mm
0.2 mm
1.0 mm x 0.5 mm
50 mm x 40 mm
8 g
Programmable set-down force 1.0 - 10 N 1.0 - 10 N
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
*g
*)g The SIPLACE benchmark value is measured during the machine acceptance tests. It corresponds to the conditions
set out in the SIPLACE scope of service and supply.
± 41 µm / 3σ
± 55 µm / 4σ
± 34 µm / 3σ
± 45 µm / 4σ
Angular accuracy ± 0.4° / 3σ
*h
, ± 0.5° / 3σ
*i
± 0.5° / 4σ
h
, ± 0.7° / 4σ
i
*)h Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
*)i Component dimensions smaller than 6 mm x 6 mm.
± 0.2° / 3σ
± 0.3° / 4σ
Illumination level 5 6
Possible illumination level settings 256
5
256
6
