3 Technical Data User Manual SIPLACE CA-Series 3.8 Electrical and Pneumatic Connections From so ftw are version SC.708.0 Edition 12/2014 EN -DRAFT 166 3.8.2 Pneumatic Connection on the Placement Machine Fig. 3.8 - 2 Pneu…
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.8 Electrical and Pneumatic Connections
165
3.8 Electrical and Pneumatic Connections
3.8.1 Electrical Connection (Placement Machine)
3
Fig. 3.8 - 1 Electrical connection on the placement machine
(1) Main switch
(2) Cover above the power supply unit
(3) Power supply unit
(4) Angled cable gland
(5) Mains connection cable
(T) Direction of PCB transport
3 Technical Data User Manual SIPLACE CA-Series
3.8 Electrical and Pneumatic Connections From software version SC.708.0 Edition 12/2014 EN -DRAFT
166
3.8.2 Pneumatic Connection on the Placement Machine

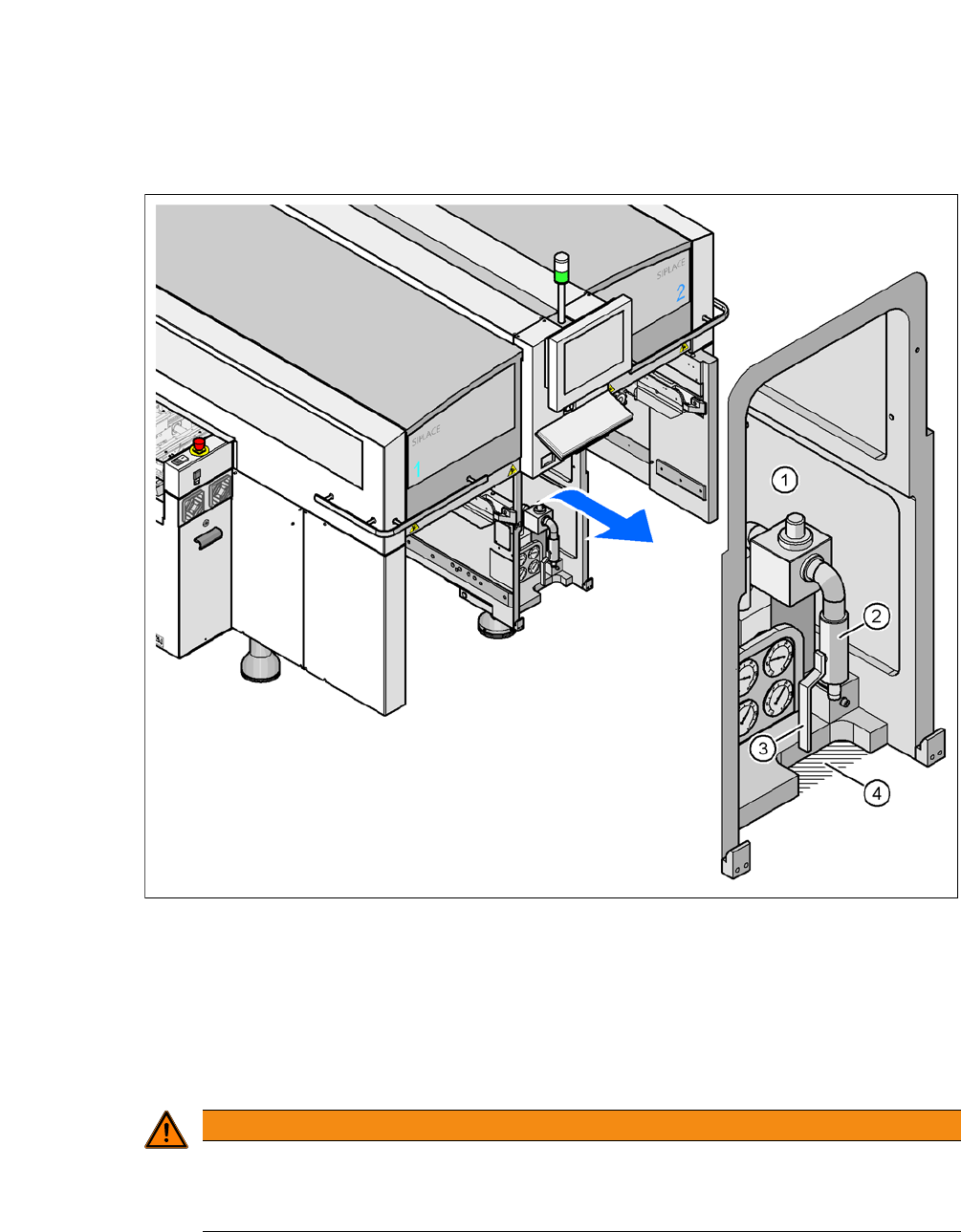

Fig. 3.8 - 2 Pneumatic Connection on the Placement Machine
(1) Pneumatic unit
(2) Connection coupling for the compressed air hose
(3) Shutoff valve
(4) Cutoff for the pneumatic hose
3
WARNING
Risk of injuries!
Risk of injuries from pressurized compressed air lines.
NEVER detach compressed air lines while they are still pressurized.
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.8 Electrical and Pneumatic Connections
167
3.8.3 Electrical and Pneumatic Connection on the SWS
3

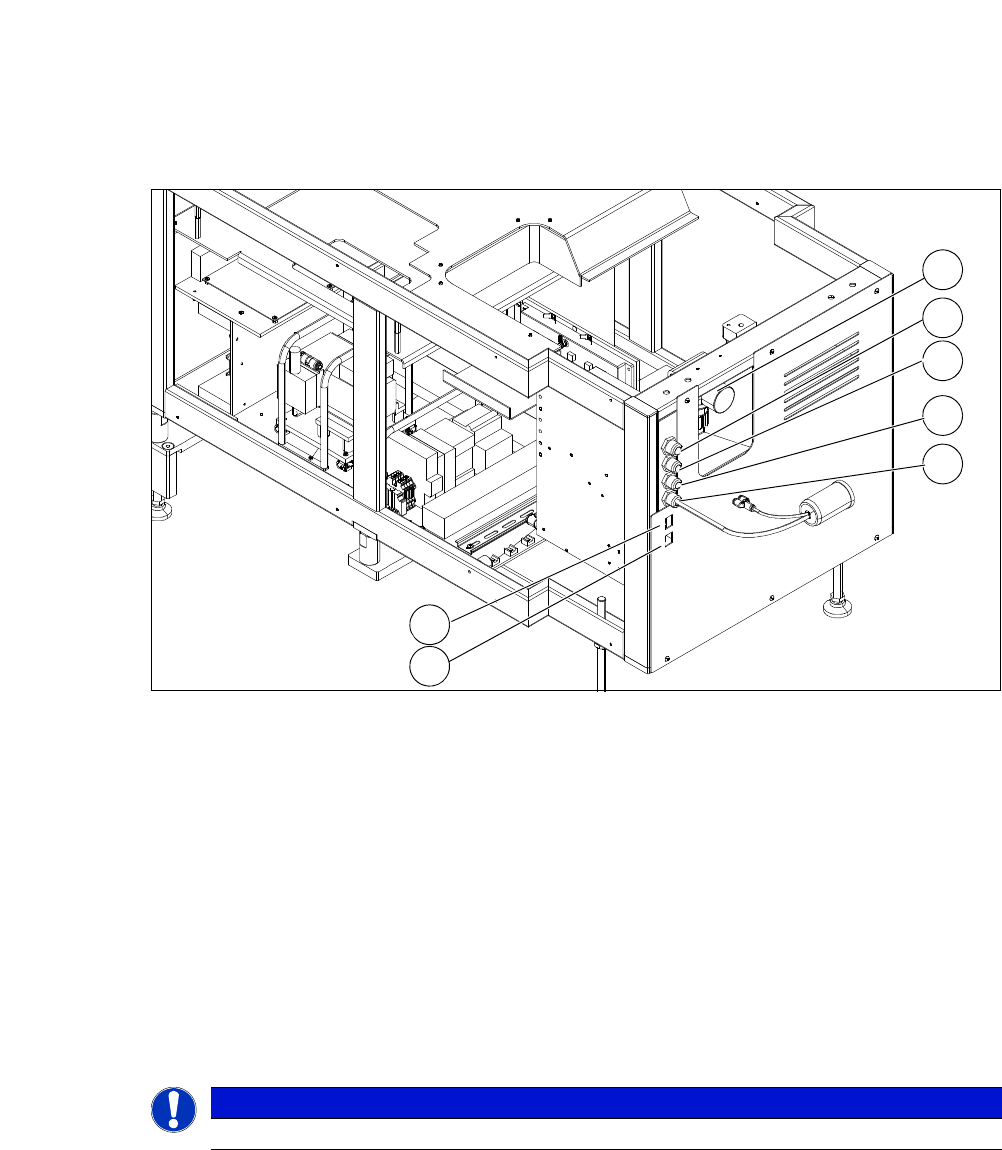

Fig. 3.8 - 3 Electrical and pneumatic connection on the SWS
3
3
3
(1) Manometer for compressed air supply (2) Voltage supply
(3) Communication with SIPLACE machine (4) CAN bus
(5) Compressed air connection (modified
adapter dummy connector [03011592-01])
(6) LAN1
(7) LAN2
PLEASE NOTE
The connection points of the SWS can be easily accessed when the unit is not installed.
2
1
3
4
5
6
7
