User manual SIPLACE CA-Series 1 Introduction From software version SC.708.0 Edition 12/20 14 EN -DRAFT 19 1 Introduction This user manual is a guide or refe rence wo rk for operating and setting up the SIPLACE ® CA- Seri…

Contents User Manual SIPLACE CA-Series

From software version SC.708.0 Edition 12/2014 EN

User manual SIPLACE CA-Series 1 Introduction

From software version SC.708.0 Edition 12/2014 EN -DRAFT

1 Introduction

This user manual is a guide or reference work for operating and setting up the SIPLACE

CA-

Series placement machines.

The CA-Series placement machine are available as SIPLACE CA4 with 4 gantries.

This document is the original user manual.

The header of each chapter contains the release and software version, to which this manual ap-

plies.

1 Introduction User manual SIPLACE CA-Series

1.1 Machine Overview From software version SC.708.0 Edition 12/2014 EN -DRAFT

1.1 Machine Overview

1.1.1 SIPLACE CA4

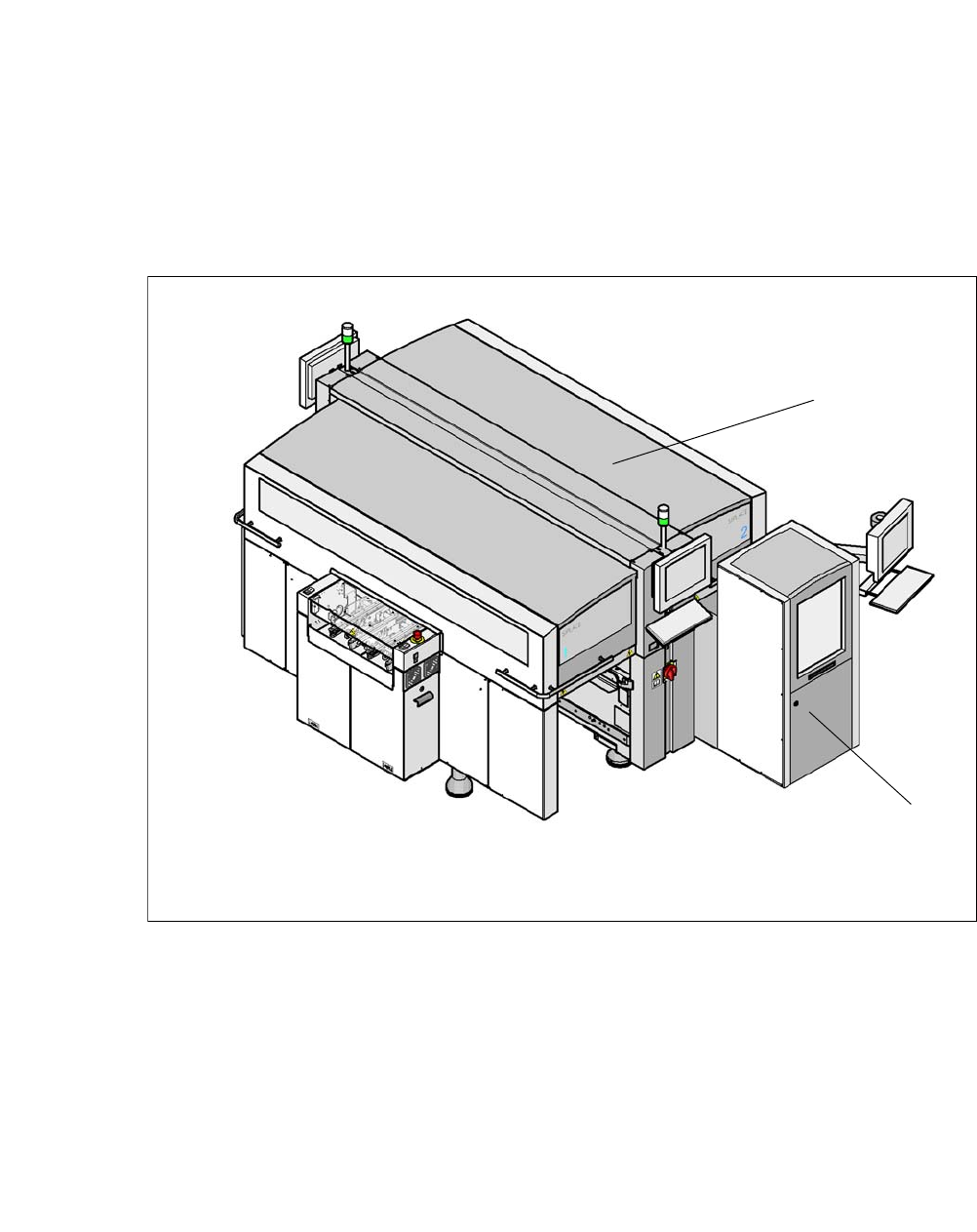

Fig. 1.1 - 1 SIPLACE CA4 placement machine with SIPLACE Wafer System (SWS)

(1) SIPLACE CA4

(2) SIPLACE Wafer System (SWS)

The CA4 placement machine has four gantries, two for each placement area (PA). All the gantry

axes are driven by linear motors. The gantry axes can be positioned quickly and accurately in the

X and Y directions. The gantry arms are lightweight constructions made from a highly rigid carbon

fiber composite material.

The placement machine has at least one SIPLACE Wafer System (SWS) at one of the four loca-

tions, so that dies can be placed from wafers.
