3.14 Flexible Dual PCB Conveyor
[00119627-xx] Modular dual conveyor II, 2380 mm
[00119626-xx] Fixed conveyor side right, HF/X/CA/D-Series
[00119628-xx] Fixed conveyor side left, HF/X/CA/D-Series
[00119929-xx] Conveyor width 250 / 508 mm, HF/X/CA-Series
3.14.1 Structure
3

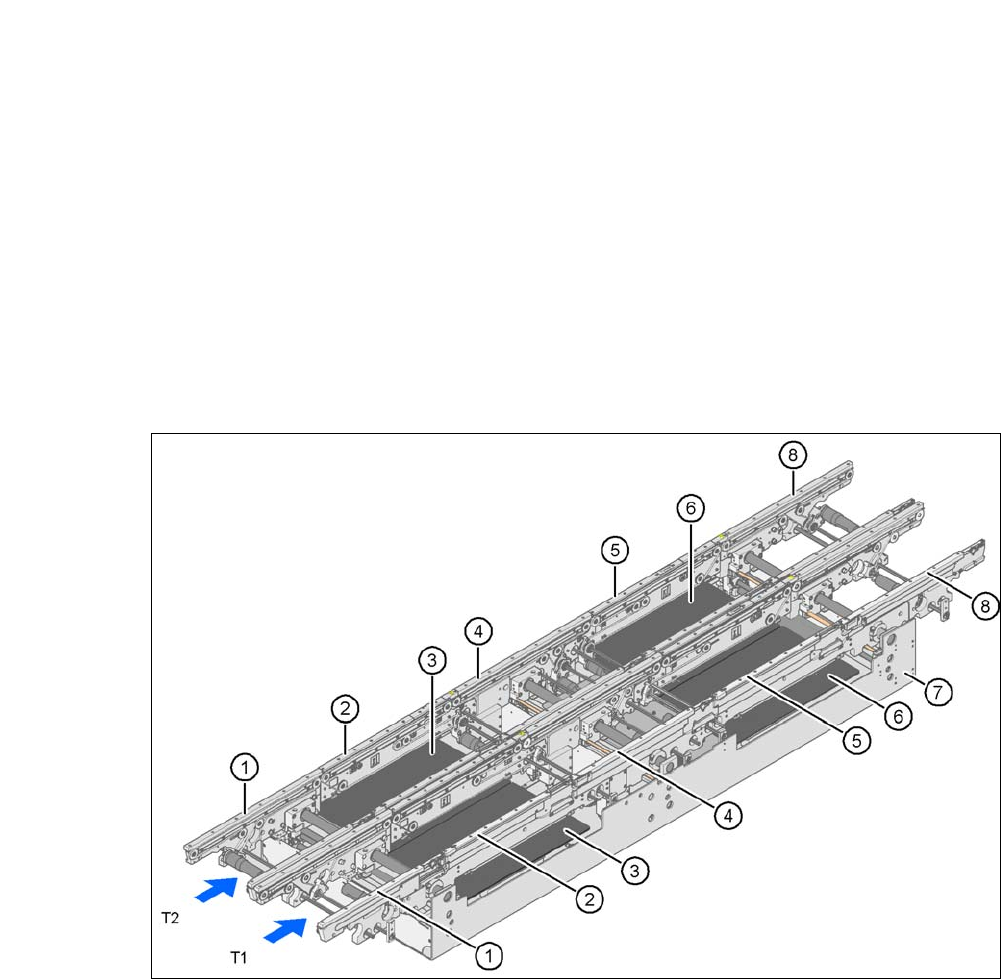

Fig. 3.14 - 1 Structure of the PCB dual conveyor
(1) Input conveyor
(2) Processing conveyor 1
(3) Lifting table 1
(4) Intermediate conveyor
(5) Processing conveyor 2
(6) Lifting table 2
(7) Assembly tub
(8) Output conveyor
T1 Conveyor track 1
T2 Conveyor track 2
3 Technical Data User Manual SIPLACE CA-Series
3.14 Flexible Dual PCB Conveyor From software version SC.708.0 Edition 12/2014 EN -DRAFT
190
3.14.2 Technical Data
3
Stationary conveyor side Right or left
PCB dimensions
Standard (length x width)
"Long Board with stepping" option
Dual conveyor in "single conveyor" mode
Standard
"Long Board with stepping" option
50 mm x 50 mm to 450 mm x 216 mm
50 mm x 80 mm to 850 mm
*a
x 216 mm
50 mm x 50 mm to 450 mm x 450 mm
50 mm x 80 mm to 850 mm
a
x 450 mm
*)a 850 mm on request
PCB thickness
Standard
0.3 mm to 4.5 mm (± 0.2 mm)
(Standard, thicker on request)
Vacuum accessories on request
Thin boards on carrier
PCB warpage See page 195
PCB weight
*b
*)b Higher weight on request.
Up to 3 kg
Clearance on PCB underside
Standard
Option
25 mm ± 0.2 mm
Max. 40 mm ± 0.2 mm
PCB conveyor height 900 mm ± 15 mm (option)
930 mm ± 15 mm (standard)
950 mm ± 15 mm (SMEMA option)
Type of interface SMEMA / Siemens
Component-free PCB handling edge 3 mm
PCB changeover time < 2.5 s
PCB positioning accuracy ± 0.5 mm
Conveyor mode synchronous or asynchronous
Components on each conveyor same or different
PCB width on each conveyor same or different
Inkspot detection on the PCB synchronous: Possible (no global inkspot)
Asynchronous: possible
Virtual ink spot handler Optional
Automatic width adjustment synchronous: possible
Asynchronous: possible
User Manual SIPLACE CA-Series 3 Technical Data
From software version SC.708.0 Edition 12/2014 EN -DRAFT 3.14 Flexible Dual PCB Conveyor
191
3.14.3 Functions
The flexible dual conveyor has two conveyor tracks that are electrically and mechanically inde-
pendent of one another. The same function as the single conveyor applies (see section 3.13.3
,
page 188
.
3.14.4 "Flexible Dual Conveyor" Features
The "flexible dual conveyor" performance feature allows the conveyor track to be widened beyond
the standard width of 216 mm. Over-wide PCBs can then be processed in a machine with a dual
conveyor. The conveyor sides of the second conveyor track are moved fully together, which de-
activates the conveyor track at the same time.
3

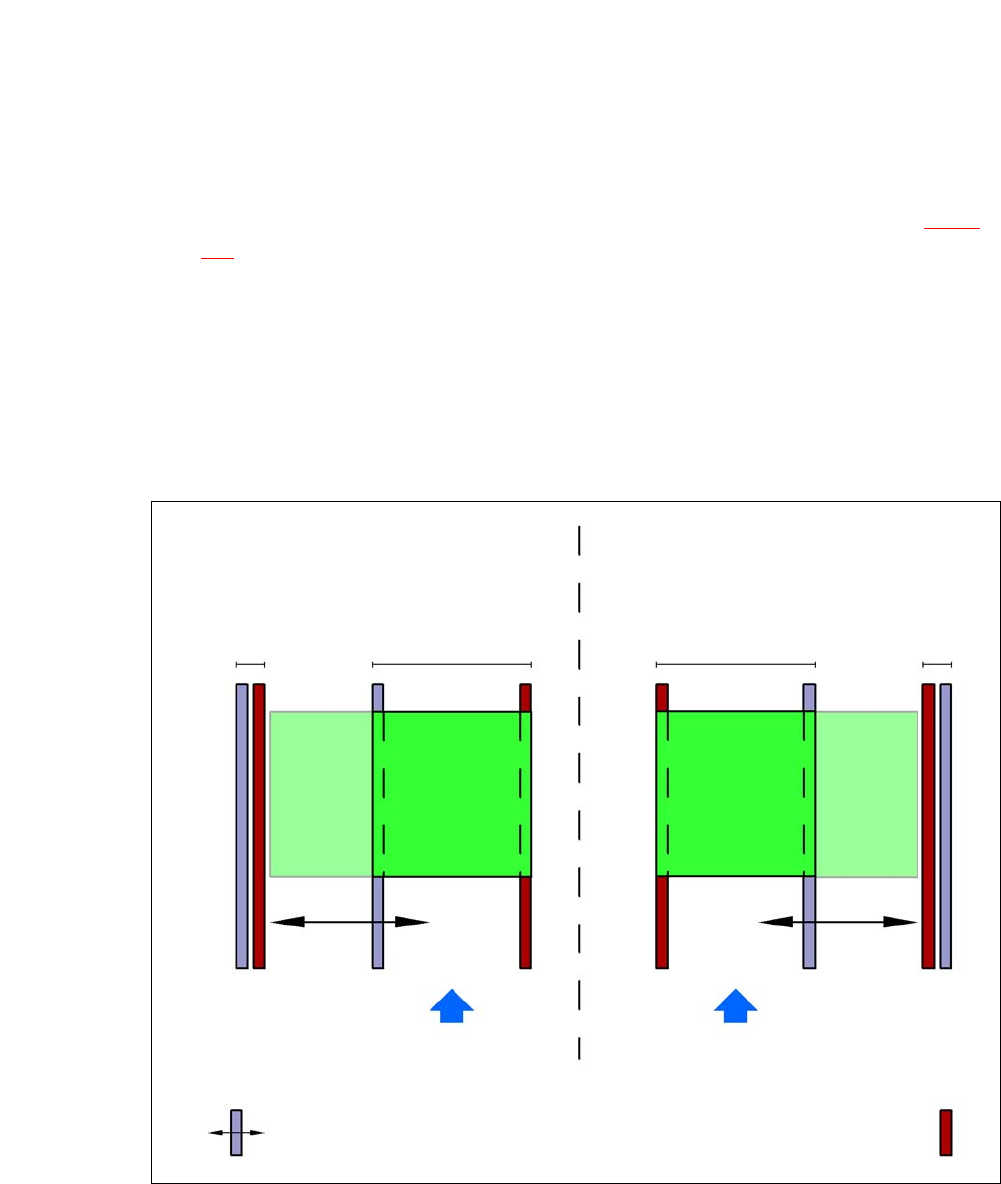

Fig. 3.14 - 2 Flexible dual conveyor in "single conveyor" mode
3
3
Dual conveyor with widened conveyor track 2
(fixed conveyor side on left)
Conveyor track 2
deactivated
Conveyor track 1 Conveyor track 2 Conveyor track 1
deactivated
PCB transport direction PCB transport direction
Fixed conveyor side
Dual conveyor with widened conveyor track 1
(fixed conveyor side on right)
Flexible conveyor side
