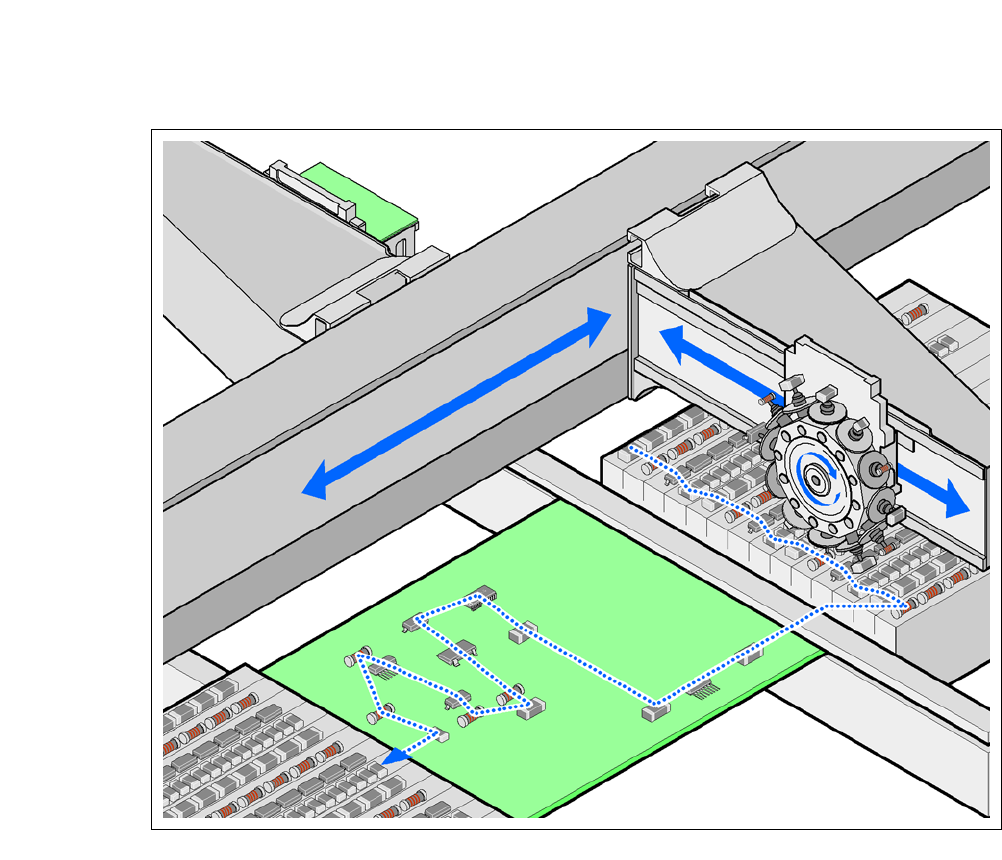

Fig. 1.2 - 1 Placement principle according to the Collect&Place procedure
User manual SIPLACE CA-Series 1 Introduction
From software version SC.708.0 Edition 12/2014 EN -DRAFT 1.2 Machine Description
25
1.2.3 Serial Number of SIPLACE CA Placement Machines
1

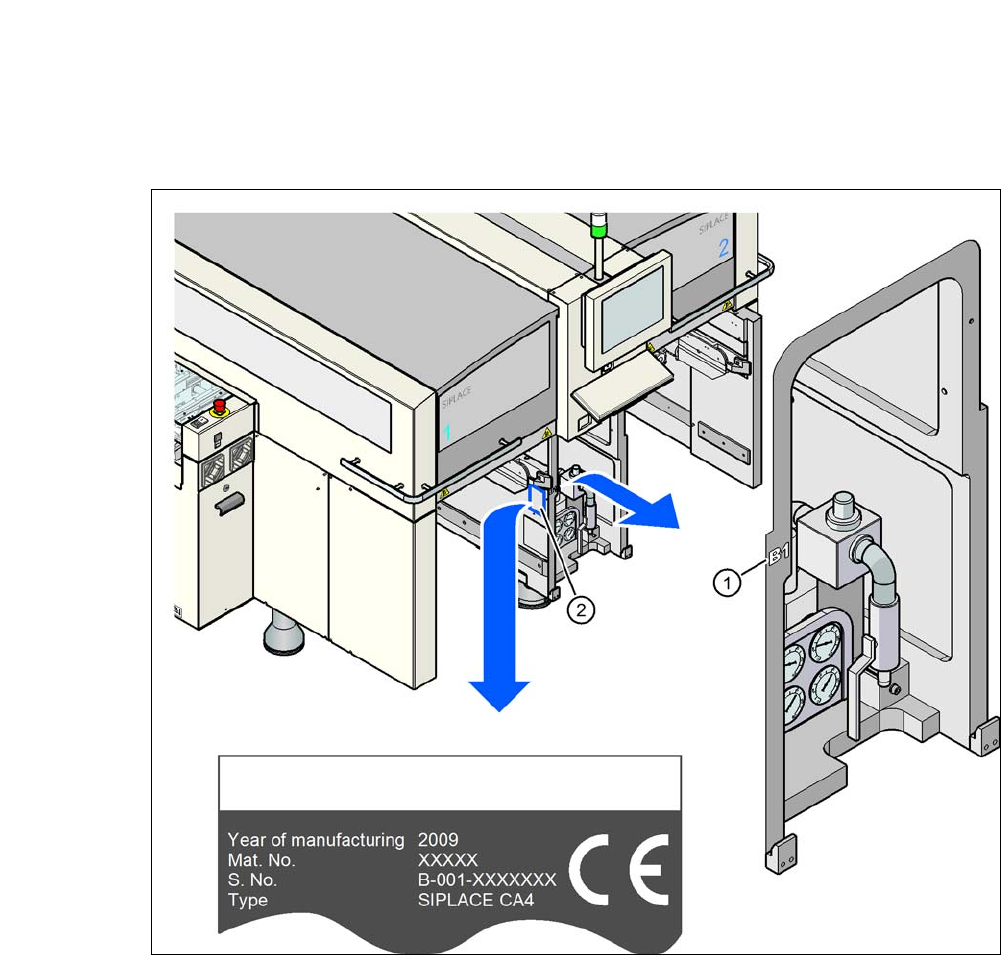

Fig. 1.2 - 2 Position of serial numbers on the placement machines
The serial number of SIPLACE CA placement machines can be found in two places.
– Without prefix zeros, e.g. B-1, the serial number can be found stamped onto the side of the
pneumatic unit (1), on the left side of the machine frame.
– With prefix zeros, e.g. B-001, the serial number can be found stamped onto the type plate (2).
1 Introduction User manual SIPLACE CA-Series
1.2 Machine Description From software version SC.708.0 Edition 12/2014 EN -DRAFT
26
1.2.4 EC Declaration of Conformity
The product/device described below 1
Product: Placement machine
Type: SIPLACE CA4
Item no.: 00519780 1
Manufactured by
ASM GmbH & Co. KG
Rupert-Mayer-Str. 44
D-81379 Munich 1
conforms to the regulations and standards listed in the EC Declaration of Conformity provided.
1.2.5 Correct Usage
The product may only be used for the areas of application specified in the catalogs and technical
descriptions i.e. for the placement of SMD components and bare dies from a wafer and may only
be used together with the third party devices and components recommended or approved by ASM
Assembly Systems GmbH & Co. KG. Use for a different or extended purpose is not prescribed.
In the case of incorrect usage, ASM Assembly Systems GmbH & Co. KG will not assume liability
for any damage which occurs and will not guarantee the correct and proper function of machine
components.
Use as prescribed also includes compliance with all the instructions in the user manual.
For the product to operate correctly and reliably, it must have been transported, stored, erected
and assembled correctly and must be operated and maintained with care.
