User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.1 Dimensions and Weight
257
5 Setting up and Commissioning
5.1 Dimensions and Weight
For details of the dimensions and weight of the placement machine, refer to section 3.4, page 128.
5.2 Delivery Configuration and Transportation of
Placement Machine
5.2.1 Shipping Packaging
Within Europe the placement machine is transported on a wooden pallet and is wrapped in plastic
foil. Outside Europe, the machine is supplied in a wooden crate mounted on a stable wooden pal-
let.
5.2.1.1 Dimensions of Transportation Packaging
The dimension of the wooden transport crate are as follows:
Length 2404 mm
Width 2790 mm
Height 1600 mm 5
5

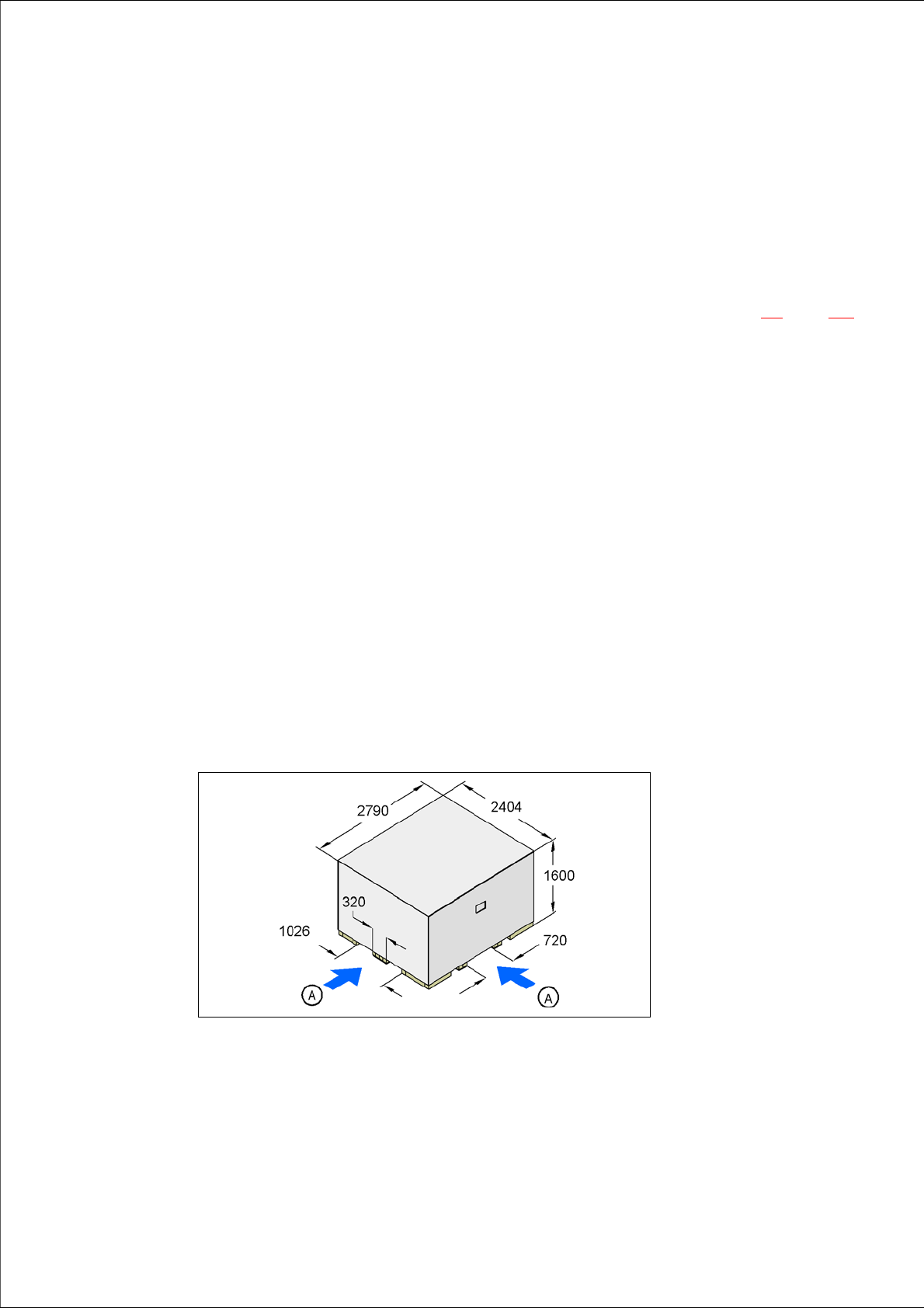

Fig. 5.2 - 1 Transport crate - dimensions in millimeters
(A) Fork-lift attachment points
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.2 Delivery Configuration and Transportation of Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
258
5.2.1.2 Weight of Machine When Ready For Dispatch
The following table contains the weights of the machines prepared for dispatch, including packag-
ing.
5
5.2.2 Configuration When Delivered
The placement machine is delivered with the following configuration:
– The extension kit on the PCB output side (item 1 in fig. 5.2 - 2
) has been removed from the
base machine and dismantled.
– The axis unit (item 2 in fig. 5.2 - 2
) in the extension kit on the PCB output side has been placed
down on a transportation cushion. All cables are attached to the axis unit.
– The track on the single conveyor is set to a width of 210 mm. On the dual conveyor, the width
of conveyor track 1 is 100 mm and of conveyor track 2 is 210 mm. This width setting is sig-
nificant for fine adjustment of the placement machine.
On the dual conveyor, the electrical plug-in connectors for the conveyor motor and light bar-
rier on the left-hand conveyor track are easily accessible and there is still enough space to fit
the output conveyor.
– The output conveyors (item 4 in fig. 5.2 - 2
) from the single and dual conveyor models have
been dismantled. The electrical cables to the conveyor motors and light barriers are discon-
nected.
– Both keyboards (item 6 in fig. 5.2 - 2
) have been disconnected.
– The supporting plates for the keyboards (item 5 in fig. 5.2 - 2
) have been unhooked.
– Both monitors (item 7 in fig. 5.2 - 2
) have been dismantled.
– Both main malfunction displays (item 8 in fig. 5.2 - 2
) have been dismantled.
– All the gantry axes are fixed with shipping braces.
Placement
machine
Dispatch within Europe Dispatch overseas
CA4 4,004 kg 4,504 kg
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.2 Delivery Configuration and Transportation of Placement Machine
259
5

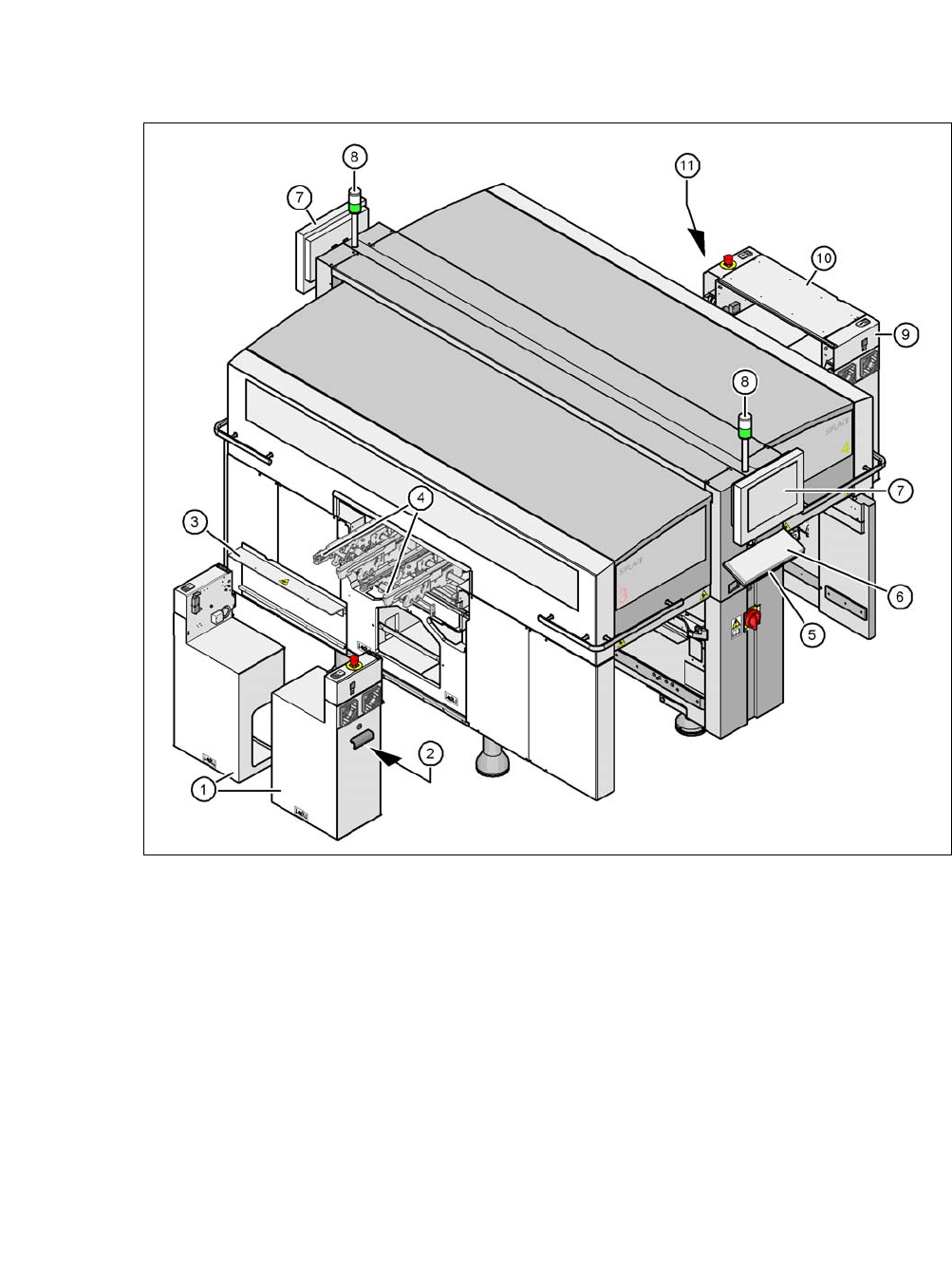

Fig. 5.2 - 2 Delivery configuration of placement machine
(1) Extension kit on the PCB output side - removed and dismantled for delivery
(2) Axis unit on the PCB output side - CA4: Gantries 2 and 3
(3) Transportation cover
(4) Output conveyor
(5) Keyboard supporting plate
(6) Keyboard
(7) Monitor
(8) Main fault indicator
(9) Computer unit on the PCB input side
(10) Extension kit at the PCB input side - can be disassembled if necessary
(11) Axis unit on the PCB output side - CA4: Gantries 1 and 4
