5.2.3.4 Fork-lift Attachment Points on the Transport Crate or Pallet
Position the fork-lift truck only at the points marked (A). in fig. 5.2 - 1. We recommend that you
keep the crate or the pallet with packaging for later use.
5
5
5.2.4 Transporting the Placement Machine Without a Crate or Pallet
5.2.4.1 Safety instructions
5
5
5
5
WARNING
Damage to the machine!
Risk of damaging the machine if it is transported without crate or pallet.
Observe the information in the next section.
WARNING
Observe the applicable accident prevention regulations!
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear special protective shoes.
WARNING
Damage to the machine!
Risk of damaging the machine if it is transported without crate or pallet.
Read this section through completely before transporting the machine.
WARNING
Risk of damage!
The thread for the machine feet in the machine frame could be damaged by being dragged
along the floor or from impact.
When you are transporting the machine, make sure that all the feet are clear of the
floor.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.2 Delivery Configuration and Transportation of Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
262
5.2.4.2 Means of Transport
Use a fork-lift truck with the following specification to carry the machine:
5.2.4.3 Fork Lift Attachment Points on the Placement Machine
The next two diagrams show the attachment points of the fork-lift truck forks on the placement ma-
chine, for lifting the machine off the pallet or transporting it without a pallet.
5
Forks parallel to PCB conveyor 5
5
5
Fork length Min. 1,800 mm
Lifting power Min. 6,000 kg
Distance between forks with the forks running parallel
to the direction of PCB transport
420 mm
Distance between forks with the forks running across
the direction of PCB transport
800 mm - 900 mm
PLEASE NOTE
Avoiding damage to the machine
When transporting the machine over longer distances, always use a pallet and fork
lift.
WARNING
Please note the following points before you raise the machine, in order to avoid irre-
versible damage to the machine.
WARNING
Risk of damage due to excessive fork spacing!
The distance between the machine feet is 776 mm. Increased fork spacing, which means
that the machine is raised at points outside its contact surface, could lead to deformation
of the machine frame and cause damage to cables and lines.
The forks may only be opened to a degree which ensures that they are still within the
contact area of the machine underside (for contact surfaces see fig. 5.2 - 3
).
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.2 Delivery Configuration and Transportation of Placement Machine
263
5
5

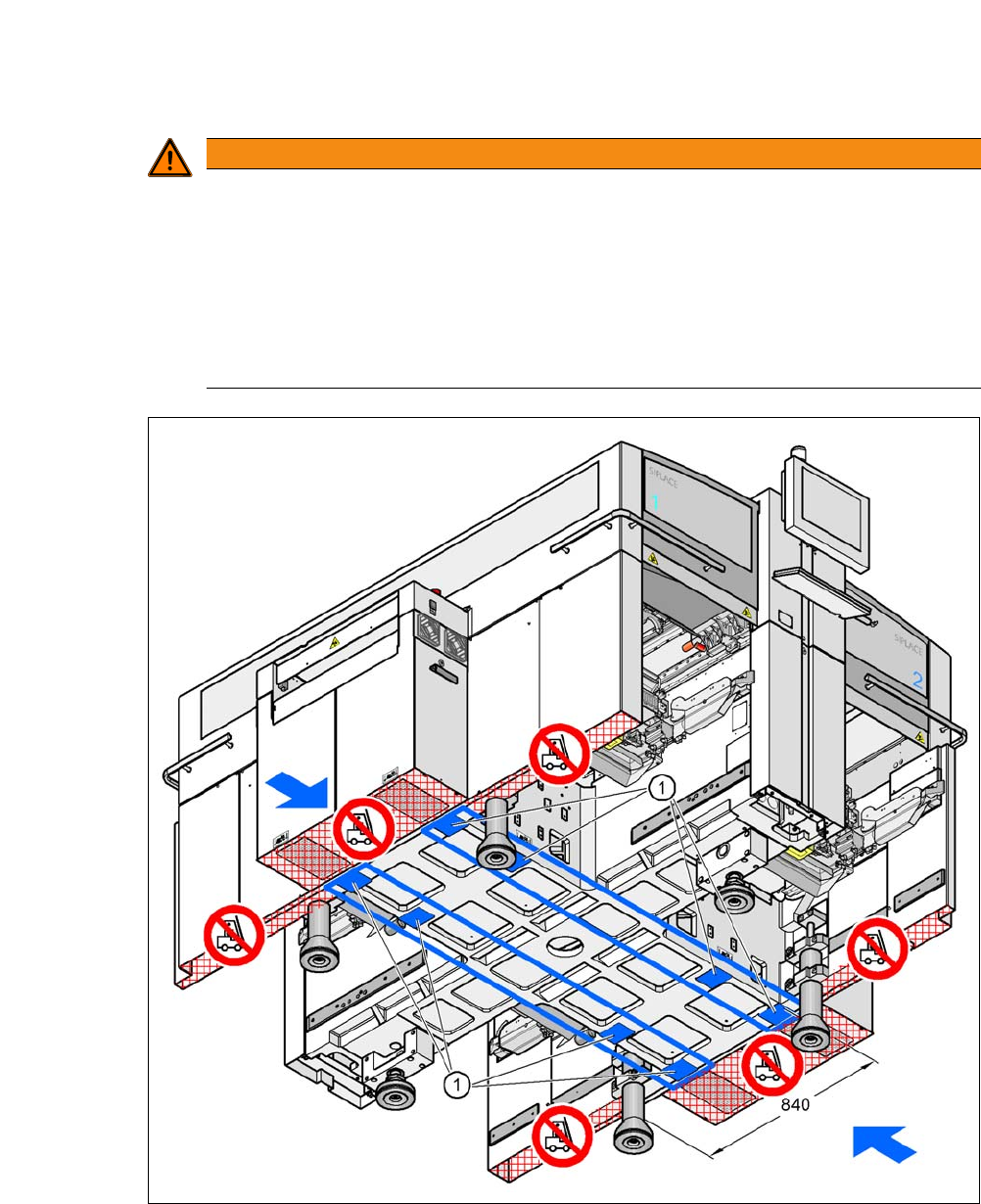

Fig. 5.2 - 3 Contact surfaces - Forks parallel to the direction of PCB transport
(1) Contact surfaces for fork lift truck forks
WARNING
Risk of damage due to one-sided loading!
One-sided loading of the machine feet e.g. from tilting the machine, could lead to defor-
mation of the machine feet.
Make sure that the forks are evenly loaded when you lift the machine.
Use a firm support layer between the forks and the machine.
Enlist the help of a second person to watch while you lift the machine and make sure
that the machine does not tip over to one side.
