User Manual SIPLACE CA-Series 5 Setting up and Commissioning From software version SC.708.0 Edition 12/20 14 EN -DRAFT 5.3 Delivery Configuration and Transpo rtation of SWS 267 5.3.2 T ransporting the SWS in a Crate 5.3.…
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.3 Delivery Configuration and Transportation of SWS From software version SC.708.0 Edition 12/2014 EN -DRAFT
266
5.3 Delivery Configuration and Transportation of SWS
5.3.1 Shipping Packaging
Within Europe the SWS is transported on a wooden pallet and is wrapped in plastic foil. Outside
Europe, the machine is supplied in a wooden crate mounted on a stable wooden pallet.
5.3.1.1 Dimensions of Transportation Packaging
The dimension of the wooden transport crate are as follows:
Length 1700 mm
Width 1250 mm
Height 1600 mm
5
5

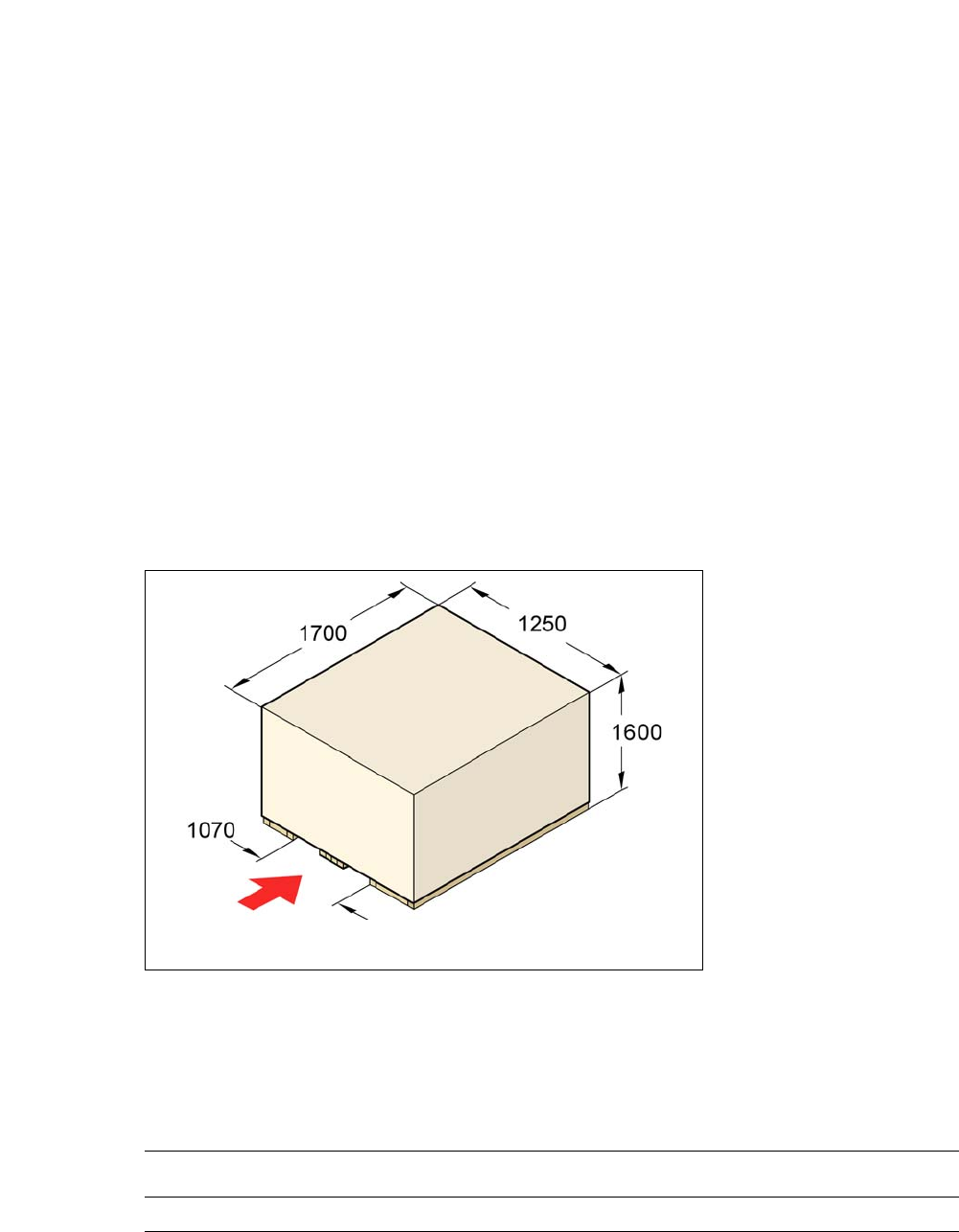

Fig. 5.3 - 1 Transport crate SWS - dimensions in millimeters
5.3.1.2 Weight of Machine When Ready For Dispatch
The following table contains the weights of the machines prepared for dispatch, including packag-
ing.
5
fork-lift attachment
point
Machine Dispatch within Europe Dispatch overseas
SWS 390 kg 473 kg
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.3 Delivery Configuration and Transportation of SWS
267
5.3.2 Transporting the SWS in a Crate
5.3.2.1 Services
One of the services provided by ASM Assembly Systems GmbH & Co.KG is the complete inte-
gration of CA-Series placement machines into your production line. With our extensive expertise
and by using the right tools and equipment, we can ensure that the installation process runs
smoothly and efficiently. However, this will require you to clarify the infrastructure aspects in ad-
vance and make any necessary changes at your production facility.
Please note that the safest way to transport the machine is always in the transport crate - or at the
very least on the pallet. This will prevent serious damage to the machine caused by the feet col-
liding with obstacles, for example.
5.3.2.2 Safety instructions
5
5
5
5.3.2.3 Means of Transport
To transport the SWS on the wooden pallet or in the transport crate, use a fork-lift truck with the
following specifications:
Fork length:Min. 1800 mm
Carrying power:Min. 1500 kg
Clear width between forks: Min. 420 mm 5
WARNING
Observe the applicable accident prevention regulations!
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
Risk of tilting!
This risk occurs if the required specifications for the means of transportation are not ob-
served (section 5.3.2.3
) !
Always use the specified means of transportation.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear special protective shoes.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.3 Delivery Configuration and Transportation of SWS From software version SC.708.0 Edition 12/2014 EN -DRAFT
268
5.3.3 Transporting the SWS Without a Crate or Pallet
5.3.3.1 Safety instructions
5
5
5
5.3.3.2 Means of Transport
Use a fork-lift truck or suitable hand lift with the following specification to carry the machine:
5
5
WARNING
Observe the applicable accident prevention regulations!
The applicable accident prevention regulations concerning the transportation of
heavy goods must be followed.
WARNING
DANGER OF CRUSHING!
Risk of crushing feet when transporting the machine.
Wear special protective shoes.
WARNING
Damage to the machine!
Risk of damaging the machine if it is transported without crate or pallet.
Read this section through completely before transporting the machine.
Fork length Min. 1600 mm
Lifting power Min. 1500 kg
Outer fork width Min. 450 mm
Max. 520 mm
PLEASE NOTE
Hand Lift Specifications
The necessary width of the fork lift presents a critical measure.
Make sure that the hand lift used fulfills the specified requirements.
