5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
290
5.5.6 Fitting the Output Conveyor
5.5.6.1 Tools
– Allen keys, DIN 911, set
– Phillips screwdriver, size 1
5.5.6.2 Assembly
5
Fig. 5.5 - 7 Output conveyor - dual conveyor
(1) Side panel, output conveyor
(2) Side panel, processing conveyor 2
(3) Cable cover 20 x 200
(4) Countersunk screw, ISO 7046, M3x6, 2x per cable cover
(5) Cable cover 20 x 310
(6) Fillister head screw DIN 912, M3x5, 1x per cable cover
(7) Fillister head screw DIN 912, M6x16, and washer, 4 per panel
(8) Hexagonal shaft guidance
(9) Hexagonal shaft (single conveyor: one, dual conveyor: two)
(10) Drive unit
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
291
Dismantle the cable covers (item 3 and 5 in fig. 5.5 - 7) from the sides (item 1 in fig. 5.5 - 7)
from the output conveyor.
Place the side (item 1 in fig. 5.5 - 7) carefully against the side of the processing conveyor (item
2 in fig. 5.5 - 7
).
5
Fasten each side with 4 fillister head screws M6x16 and the corresponding discs (item 7 in
fig. 5.5 - 7
).
Connect the power cable to the light barriers and drive motors.
Fasten the cable covers (item 3 and 5 in fig. 5.5 - 7).
Insert the hexagonal shaft (item 9 in fig. 5.5 - 7) into the drive unit (item 10 in fig. 5.5 - 7).
Make sure that the hexagonal shaft guidance (item 8 in fig. 5.5 - 7) always points to the con-
veyor side to which the drive unit (item 10 in fig. 5.5 - 7
) is fixed.
5.5.7 Fitting the Extension Kit to the PCB Output Side
5.5.7.1 Tools
– Allen keys, DIN 911, set
– Machine key
CAUTION
Be careful not to cut through any of the light barrier or drive motor cables.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
292
5.5.7.2 Assembly
5

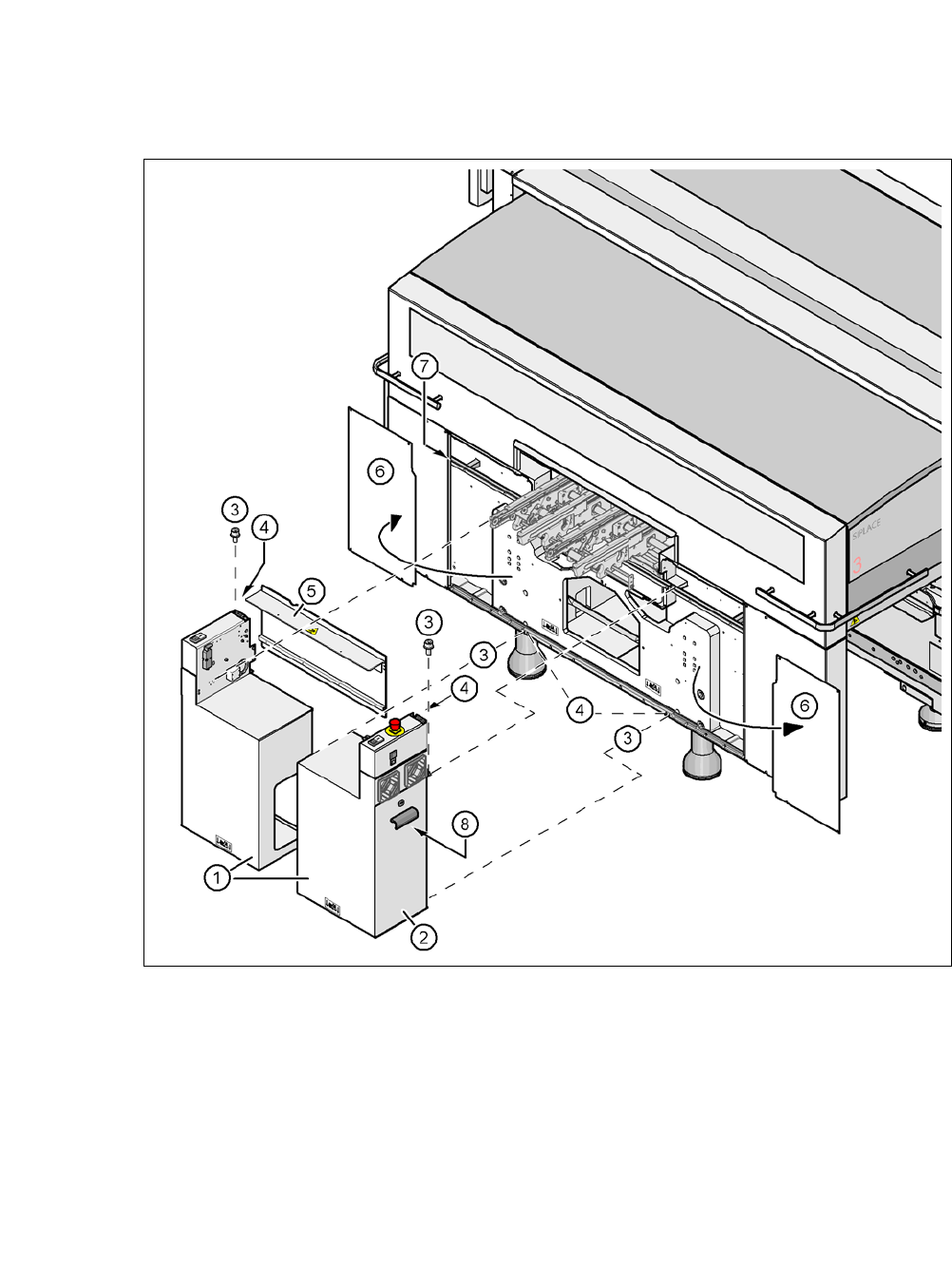

Fig. 5.5 - 8 Fitting the extension kit to the PCB output side
(1) Extension kit
(2) Door
(3) Fillister head screw DIN 912, M6x16 and washer
(4) Grounding connection
(5) Transport cover
(6) Side plate, dismantled
(7) Insert rail
(8) Axis unit gantries 2 and 3 (CA4)
