5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
312
5.5.11.3 Box PC Unit for CA4 - Press-Fit Connections on the Back
5
5
5.5.11.4 Fitting the Box PC Unit
Establish the press-fit connections on the back of the box PC unit (see section 5.5.11.3).
Carefully lift the box PC unit onto the rail in the extension kit.
Make sure that you do not squash any cables.
Push the box PC unit into the extension kit as far as the stop.
Establish the press-fit connections on the front of the box PC unit (see section 5.5.11.2).
Fix the cables to the front panel with cable ties.
Secure the box PC unit with the fillister head screw.
Fasten the ground cable to the door (item 2 in fig. 5.5 - 14, page 303), as shown in fig. 5.5 -
16 on page 307.
Lock the doors.
5
Box PC unit, rear
side
(fig. 5.5 - 19
)
Plug
Connection cable Please note
Plug Cable
PE1 Cable ring Grounding cable
Fasten as in fig. 5.5 - 16
,
page 307
.
X1rz X1rz 03051757 Insert as far as the stop
X3rz X3rz 03050907 Insert as far as the stop
X1pd X1pd 03051751 Insert as far as the stop
X2pd X2pd 03051752 Insert as far as the stop
X3pd X3pd 03051753 Insert as far as the stop
X4pd X4pd 03051754 Insert as far as the stop
PLEASE NOTE
For CA4 machines, continue with section 5.5.13 "Installing the Axis Unit on the CA4"
on page 319
.
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
313
5.5.11.5 Fitting the Side Plates
Fasten the ground cable to each side plate (item 6 in fig. 5.5 - 14, page 303), as shown in fig.
5.5 - 16
page 307.
Fix the side plate to the machine frame with 6 fillister head screws.
Continue with section 5.5.14 " Fitting the Main Fault Indicators", page 321.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
314

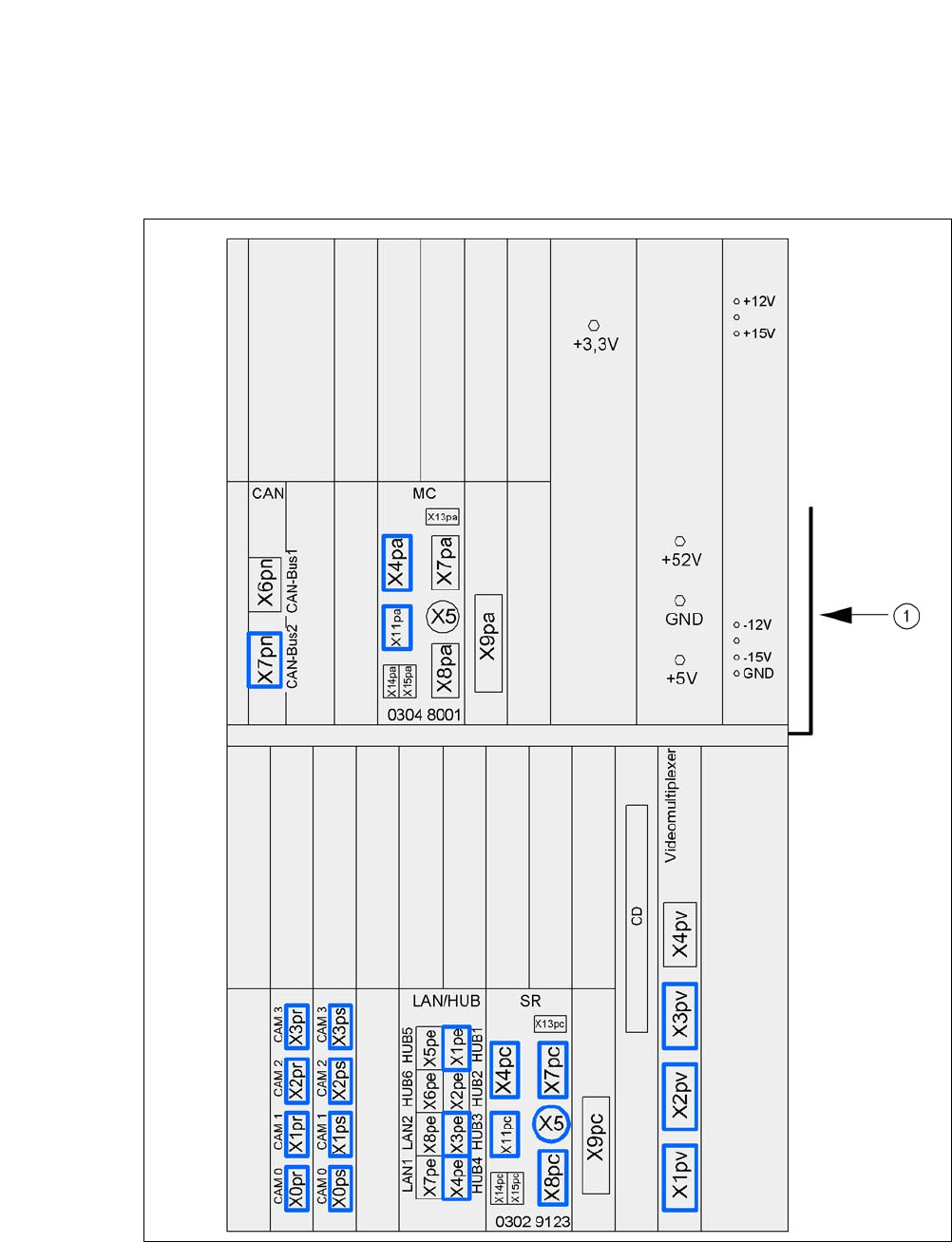

5.5.12 Installing the Computer Unit for the CA4
5.5.12.1 Computer Unit - Electrical Connection Points
5
Fig. 5.5 - 20 Computer unit, front - connecting plugs
(1) Cable guide plate
