5 Setting up and Commissioning User Manual SIPLACE CA-Series 5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DR AFT 328 Use the hook wrench to unscrew the middle machine feet rou…
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
327
5

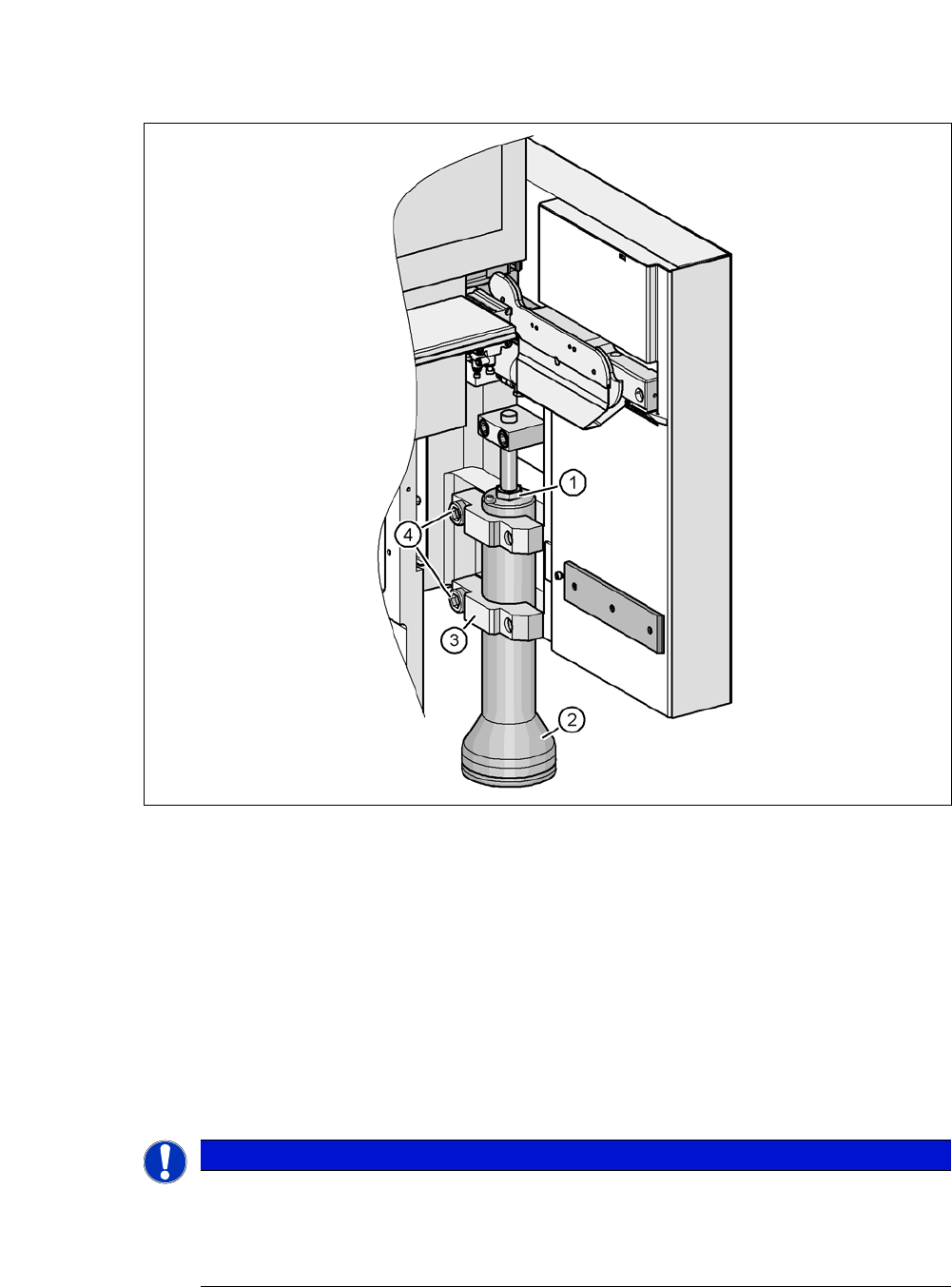

Fig. 5.5 - 27 Setting the height for the outer machine feet
(1) Setting screw M24x2x120 for height adjustment
(2) Outer machine foot
(3) Clamping piece
(4) Hexagon socket-head screw M24x90
Check the required board conveyor height.
Once the placement machine has been correctly aligned, use the torque wrench to tighten
the hexagon socket-head screws M24x90 (item 4) to clamp the clamping pieces on all outer
machine feet (item 3).
5
PLEASE NOTE
Vibration at low tightening torques
The tightening torque is 130 Nm. If you use a lower tightening torque, the placement ma-
chine may tend to vibrate.
Use a sufficiently high tightening torque.
5 Setting up and Commissioning User Manual SIPLACE CA-Series
5.5 Setting Up the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
328
Use the hook wrench to unscrew the middle machine feet roughly 135 - 145, until these are
positioned firmly on the ground.
Make sure that the middle machine feet are not unscrewed too far, otherwise they may mis-
align the placement machine.
5

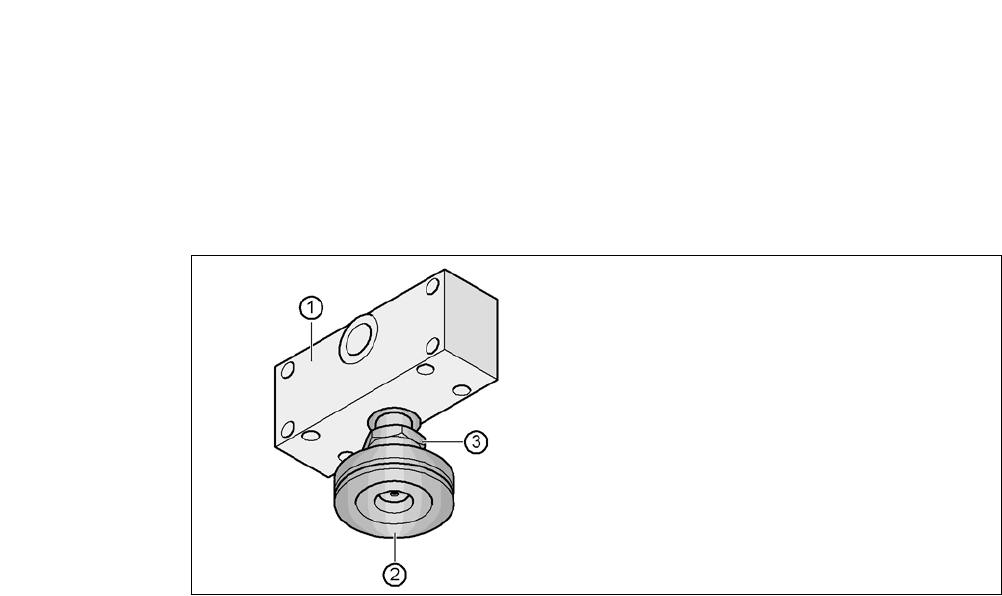

Fig. 5.5 - 28 Aligning and locking the middle machine feet
Recheck the exact alignment of the placement machine with the machine spirit level.
Use the fork wrench SW65 to tighten the lock nut M24 (item 3).
5.5.18 Removing the Shipping Braces
– Remove all the shipping braces from the gantry axes.
(1) Spacer
(2) Middle machine foot
(3) Lock nut M24
User Manual SIPLACE CA-Series 5 Setting up and Commissioning
From software version SC.708.0 Edition 12/2014 EN -DRAFT 5.5 Setting Up the Placement Machine
329
5.5.19 Removing the Corrosion Protection from the Guide Rails
The placement machine is treated with a corrosion protection agent before delivery.
5
5
CAUTION
Reduced product life of bearings and guide rails!
If the corrosion protection agent is mixed with the bearing grease on the axes this can
greatly reduce the service life of the bearings and guide rails.
You should therefore remove the corrosion protection from all the axes and bearings
when you traverse the machine axes for the first time during commissioning.
Grease all the axes and bearings with the grease described in the maintenance in-
structions.
CAUTION
Risk of damaging bearing grease!
Alcohol will damage the bearing grease in the guide carriages.
When cleaning the guide rails and scales, make sure that alcohol does not get into
the guide trolley.
