X-Series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
reels can be positioned above the tape container.
6 Working with the Machine User Manual SIPLACE CA-Series
6.6 Performing a Sight Check From software version SC.708.0 Edition 12/2014 EN -DRAFT
368
6.6.5 Inserting Separating Plates into the Tape Container
The separating plate has different edges and can be inserted into the tape container in two
ways. If spindles are used, the recesses for the spindles in the separating plate point upwards
(see item 4 in fig. 6.6 - 3
). If you do not use spindles, the rounded edge of the separating
plate points up (see item 5 in fig.
6.6 - 3
).
Insert the separating plates as shown in fig. 6.6 - 3 and remember that the smallest division
of the tape container is a 2x division. This will help avoid placement errors.
Check that the separating plates engage in the same positions on the three guide rails. Oth-
erwise the separating plate will be offset or bent.
6

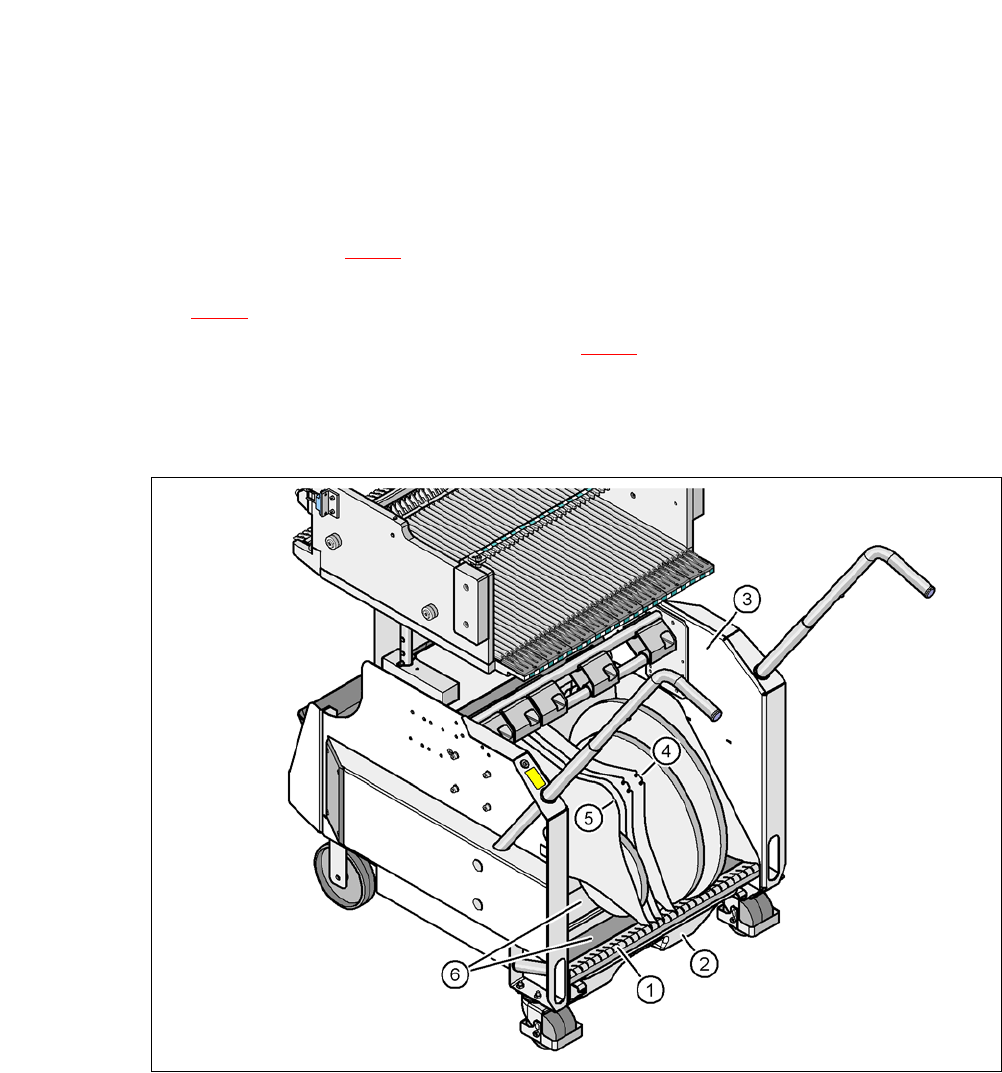

Fig. 6.6 - 3 Separating plates in the tape container
(1) Guide rail for the separating plates
(2) Waste tape container
(3) Tape container
(4) Position of the separating plate if spindles are used
(5) Position of the separating plate if no spindles are used
(6) Sliding support for tape reels
User Manual SIPLACE CA-Series 6 Working with the Machine
From software version SC.708.0 Edition 12/2014 EN -DRAFT 6.6 Performing a Sight Check
369
6.6.6 Using Spindles for Large Tape Reels
6
6
Fig. 6.6 - 4 SIPLACE X-Series component trolley, with tape container and spindle
(1) Component trolley
(2) Position of the spindle
(3) Waste tape container
(4) Tape container
(5) Separating plate
(6) Spindle (zoom)
6
PLEASE NOTE
Using spindles
SIPLACE X-Series component trolleys do not generally need spindles.
Use spindles if the error message "Timeout" appears frequently on the X feeder mod-
ule.
