7.1.2.3 Tape Feeder Module 8 mm X
7

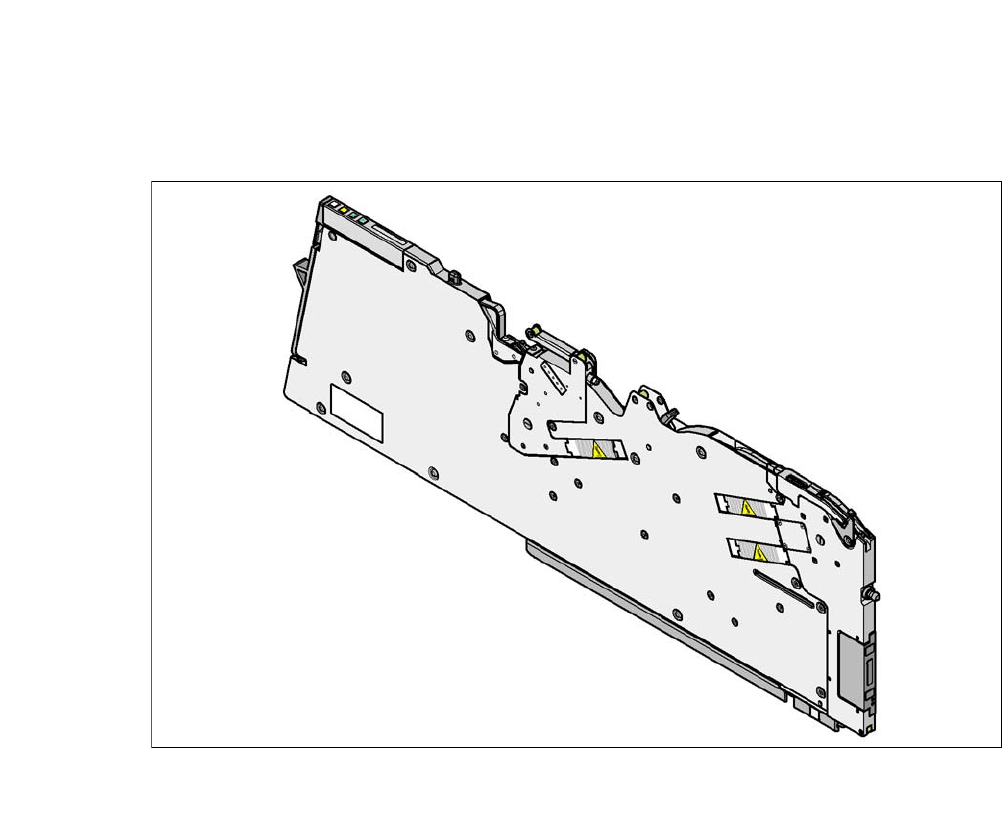

Fig. 7.1 - 5 Tape Feeder Module 8 mm X
7
Tape Feeder Module 8 mm X Item no. 00141270-xx
Tape feeder module 8 mm X with splice sensor Item no. 00141290-xx
Width 10.8 mm
Feeder module locations filled 1
Conveyor increment 1 mm / 2 mm / 4 mm / 8 mm
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.1 X Feeder Modules for SIPLACE X-Series
405
7.1.2.4 SIPLACE Smart Feeder 12 mm X
7

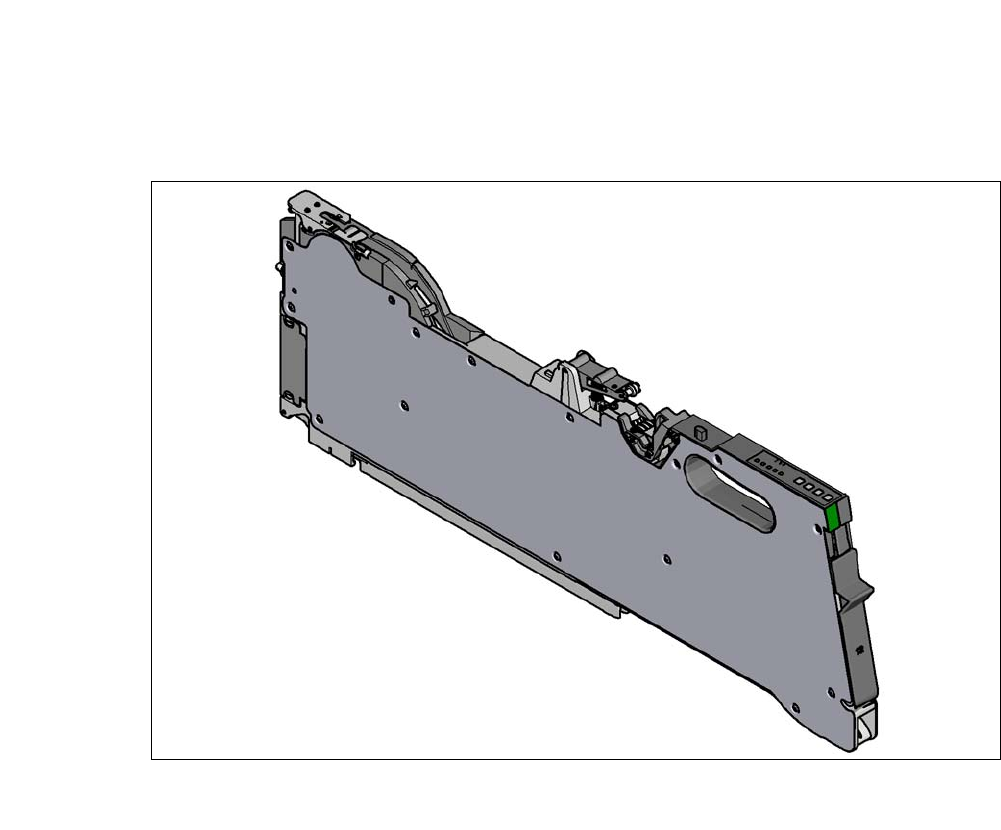

Fig. 7.1 - 6 SIPLACE Smart Feeder 12 mm X
7
7
SIPLACE Smart Feeder 12 mm X Item no. 00141371-xx
SIPLACE Smart Feeder12 mm X with splice sensor Item no. 00141391-xx
Width 22.6 mm
Feeder module locations filled 2
Conveyor increment From 4 mm to 16 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
406
7.1.2.5 SIPLACE Smart Feeder 16 mm
7

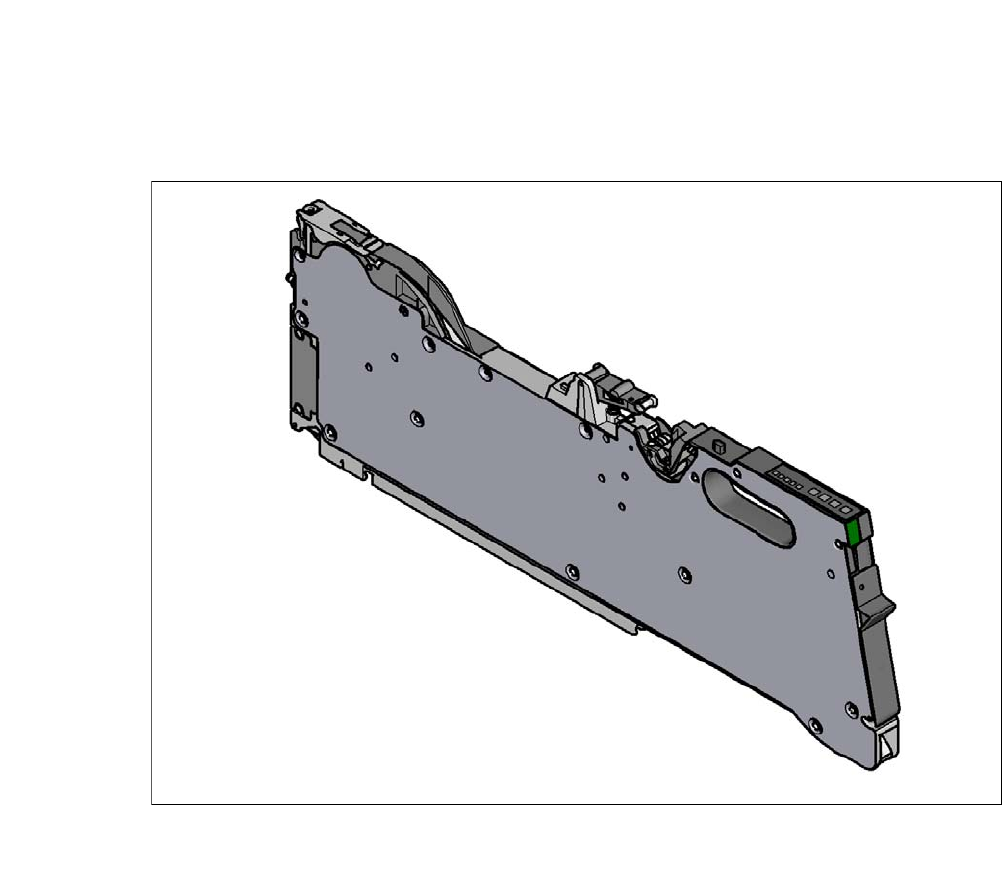

Fig. 7.1 - 7 SIPLACE Smart Feeder 16 mm X
7
SIPLACE Smart Feeder 16 mm X Item no. 00141372-xx
SIPLACE Smart Feeder 16 mm X with splice sensor Item no. 00141392-xx
Width 22.6 mm
Feeder module locations filled 3
Conveyor increment From 4 mm to 20 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
