7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
408
7.1.2.7 Tape Feeder Module 32 mm X
7

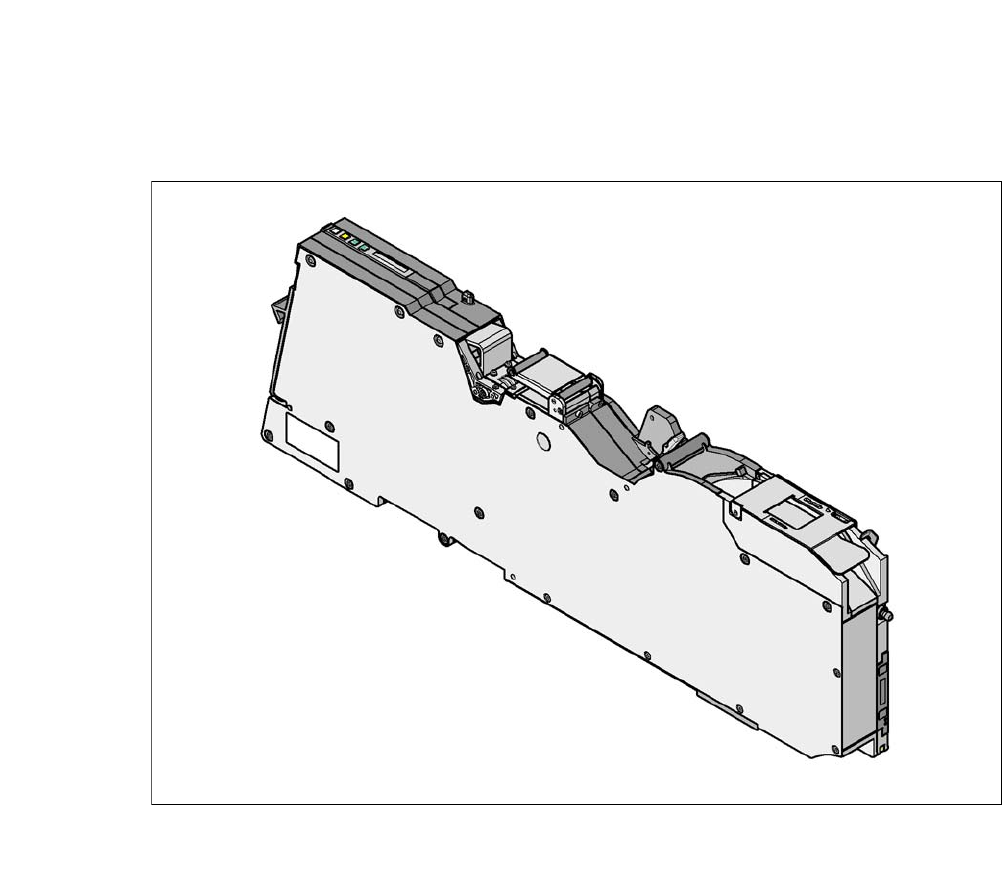

Fig. 7.1 - 9 Tape Feeder Module 32 mm X
7
7
Tape Feeder Module 32 mm X Item no. 00141274-xx
32 mm X tape feeder module with splice sensor Item no. 00141294-xx
Width 46.2 mm
Feeder module locations filled 4
Conveyor increment From 4 mm to 40 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.1 X Feeder Modules for SIPLACE X-Series
409
7.1.2.8 Tape Feeder Module 44 mm X
7

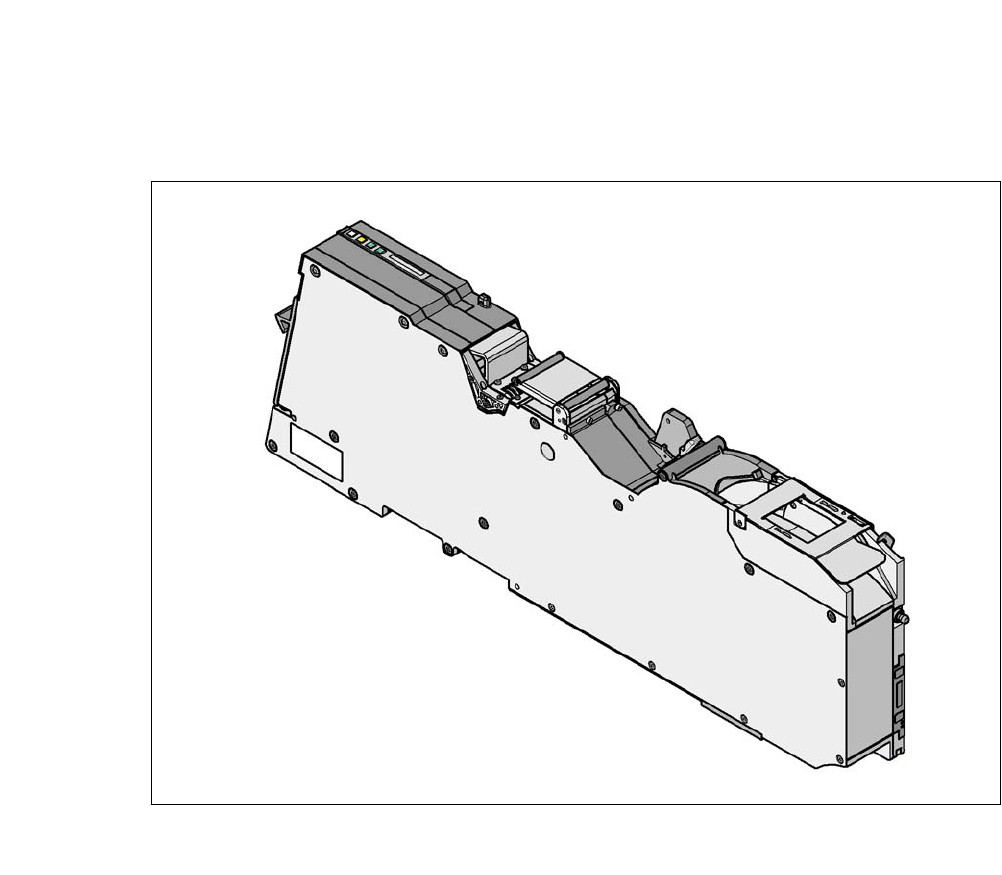

Fig. 7.1 - 10 Tape Feeder Module 44 mm X
7
7
7
7
Tape Feeder Module 44 mm X Item no. 00141275-xx
44 mm X tape feeder module with splice sensor Item no. 00141295-xx
Width 58.0
Feeder module locations filled 5
Conveyor increment From 4 mm to 52 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
410
7.1.2.9 Tape Feeder Module 56 mm X
7

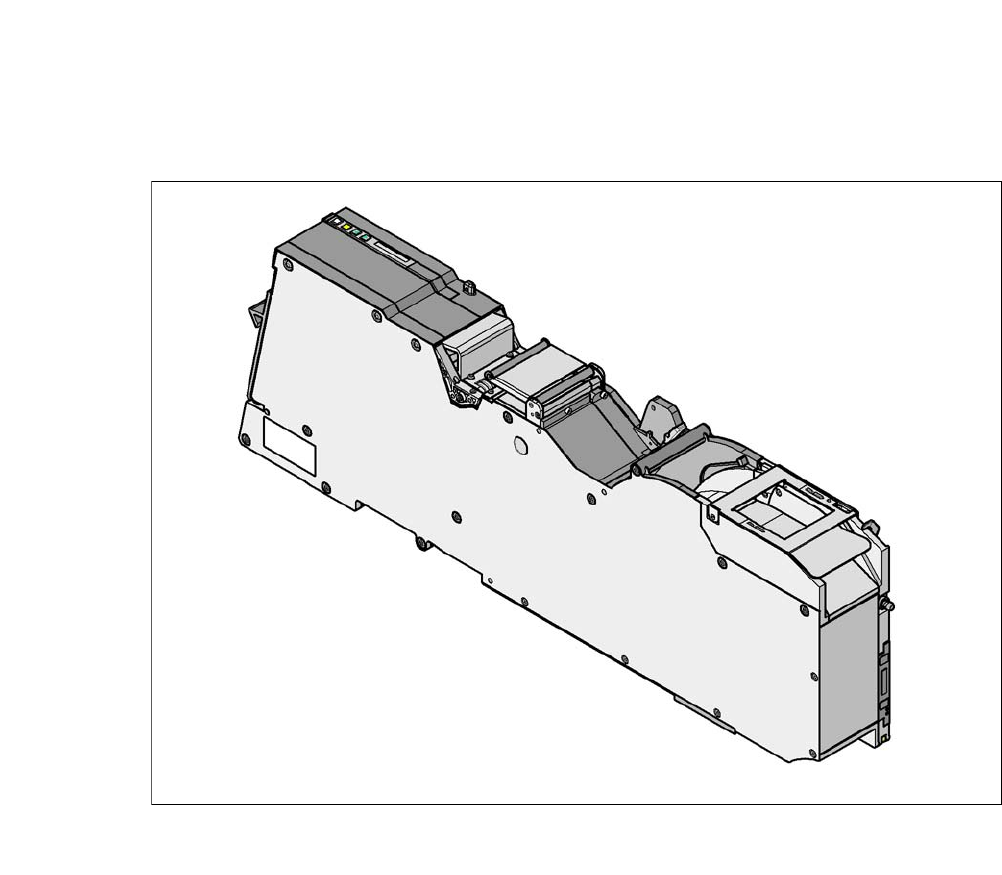

Fig. 7.1 - 11 Tape Feeder Module 56 mm X
7
7
7
Tape feeder module 56 mm X Item no. 00141276-xx
56 mm X tape feeder module with splice sensor Item no. 00141296-xx
Width 69.8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the preset feeder module
on the machine
≤ 8 s
