User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.1 X Feeder Modules for SIPLACE X-Series
417
7.1.4.3 Restrictions
– The LDU-X must be manually configured in the setup.
– The LDU-X may only be set up on tracks 7 – 26.
– You can only configure one LDU-X per component trolley.
– Linear vibratory feeders may not be set up directly next to a LDU-X.
– MTC or WPC and LDU-X may only be set up in one placement area with one gantry.
– A gantry can only pick up from one LDU-X, even if it can pick up from two placement locations.
7.1.4.4 Dip Plates for Specified Flux Layer Thicknesses
Dip plate depth Item no.
30 μm 00117023-xx
60 μm 00117026-xx
70 μm 00117027-xx
75 μm 00117021-xx
80 μm 00117028-xx
90 μm 00117029-xx
100 μm 00117030-xx
110 μm 00117038-xx
120 μm 00117031-xx
130 μm 00117039-xx
170 μm 00117054-xx
210 μm 00117042-xx
220 μm 00117032-xx
230 μm 00117033-xx
240 μm 00117037-xx
280 μm 00117034-xx
300 μm 00117041-xx
320 μm 00117035-xx
360 μm 00117036-xx
400 μm 00117040-xx
7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
418
7.1.5 Feeder Module Adapter for the X-Series
Item no. 00141305-xx Adapter for X-Series feeder modules
Item no. 00141308-xx Adapter plate for reject conveyor
Item no. 00141310-xx Adapter plate for label presenter
7
The spectrum of X tape feeder modules has been extended to include the linear vibratory feeder,
the label presenter and the reject conveyor. With an adapter, you can also convert the S linear
vibratory feeder, label presenter and reject conveyor for use with X-Series component trolleys.
The adapter performs electronic as well as mechanical functions: It converts the communication
signals from the S feeder modules into signals conforming to the extended X-Series protocol. Ad-
ditional functions, such as feeder module identification, have also been implemented.
7
PLEASE NOTE
S linear vibratory feeders, label presenters and reject conveyors can not be set up at
component trolleys if these are in the access range of a SpeedStar (C&P20).
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.1 X Feeder Modules for SIPLACE X-Series
419
7.1.5.1 Feeder module adapter for the X-Series with label presenter
7

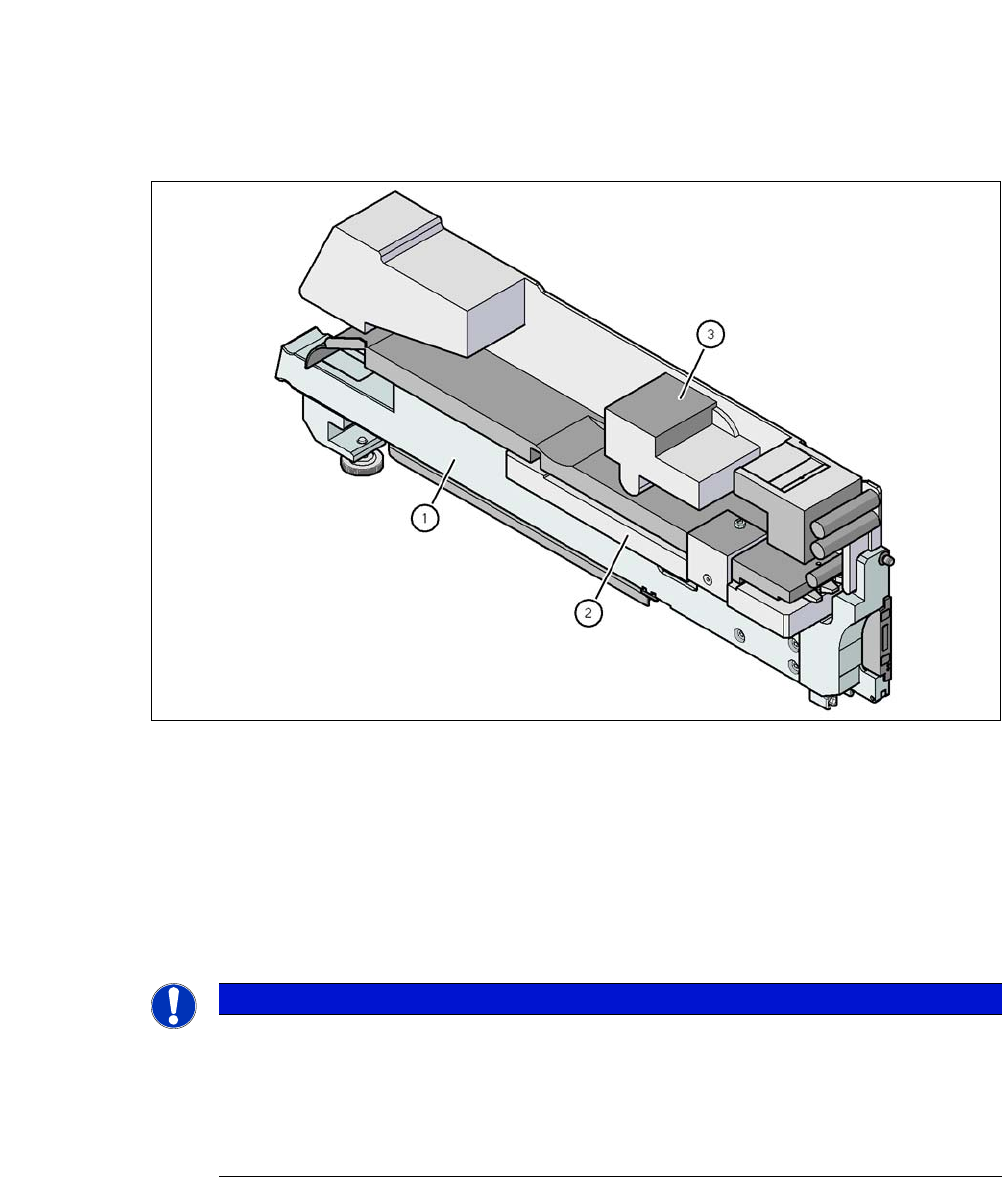

Fig. 7.1 - 16 Feeder module adapter for the X-Series with label presenter
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for label presenter (item no. 00141310-xx)
(3) Label presenter
7.1.5.2 Feeder Module Adapter for the X-Series with Linear Vibratory Feeder
7
7
PLEASE NOTE
Use of adapter plate
An adapter plate is supplied as standard with the adapter for X-Series feeder modules:
The adapter plate should be used for component heights up to 16.5 mm.
Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
