7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
420
7
Fig. 7.1 - 17 Feeder module adapter for the X-Series with linear vibratory feeder
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder module 1, 2 or 3 7
Occupied feeder module locations 3 7
Stock of components Up to 150 per steel stick magazine, 7
depending on the component length 7
Specific data for stick magazines 9.5 mm wide / x 3 7
15 mm wide / x 2 7
> 15 mm wide / x 1 7
30 mm wide / 1 x 7
Vibrating time Variable with SIPLACE Pro from 400 to
over 1000 ms 7
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.1 X Feeder Modules for SIPLACE X-Series
421
7.1.5.3 Feeder module adapter for the X-Series with reject conveyor
7

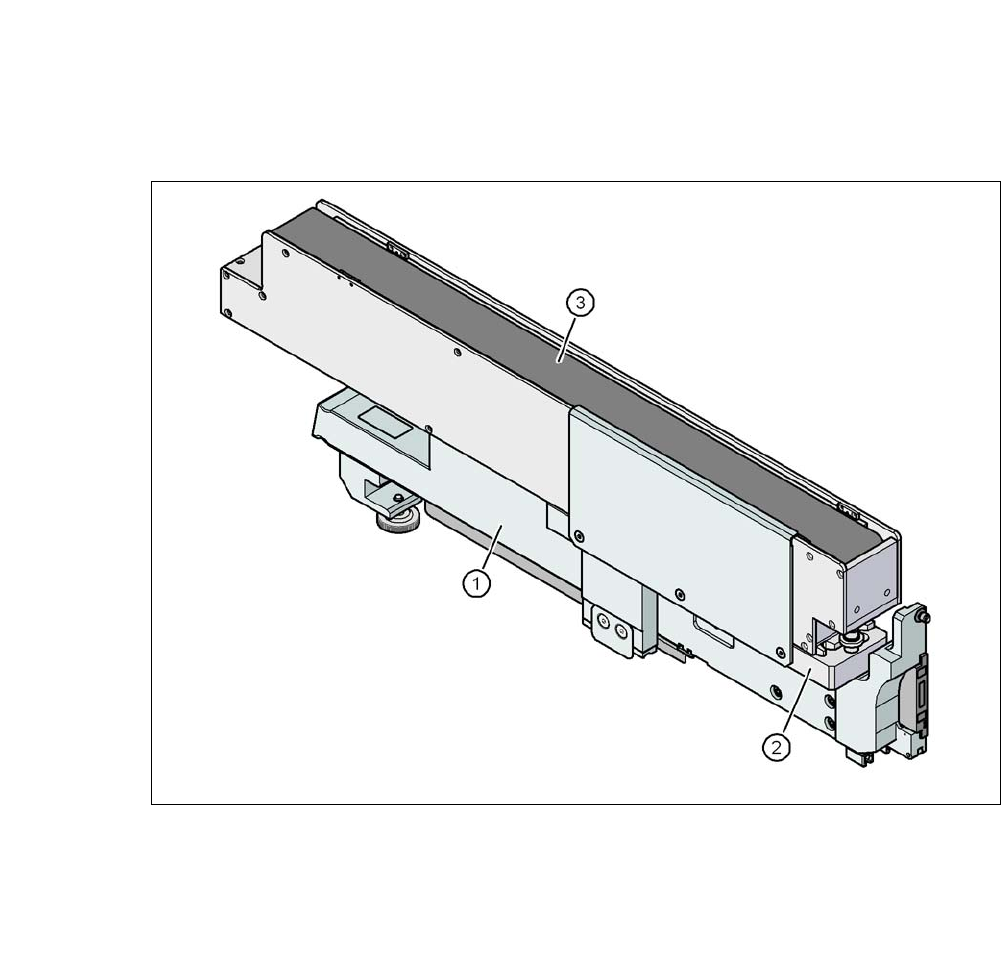

Fig. 7.1 - 18 Feeder module adapter for the X-Series with reject conveyor
(1) Adapter for X-Series feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor (reject module)
7 Component and Die Handling User Manual SIPLACE CA-Series
7.1 X Feeder Modules for SIPLACE X-Series From software version SC.708.0 Edition 12/2014 EN -DRAFT
422
7.1.6 Energy and Data Interface for X Feeder Modules
Item no. 00141247-xx Energy and data interface for X feeder modules
7

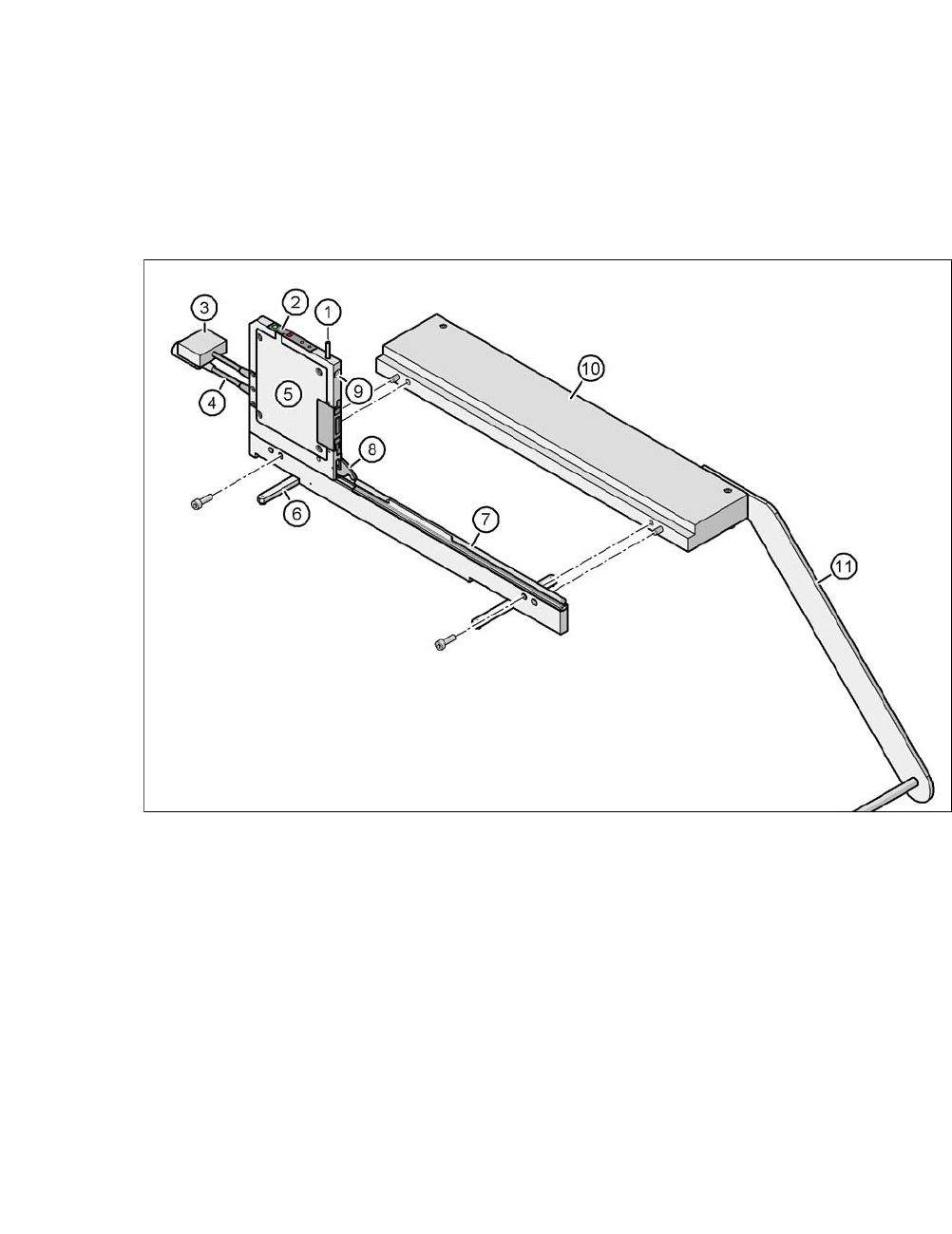

Fig. 7.1 - 19 Energy and data interface for X feeder modules
(1) Unlocking button for locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronics housing
(6) Fold-out feet
(7) Omega profile for guiding feeder modules
(8) Locking latch
(9) Locating hole for front centering pin of feeder module
(10) Base plate
(11) Tape reel holder
