7 Component and Die Handling User Manual SIPLACE CA-Series 7.2 SIPLACE X-Series Component Trolley From software version SC.708.0 Edition 12/2014 EN -DR AFT 430 7.2.5 SIPLACE X-Series Changeover T able The front slider gu…
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.2 SIPLACE X-Series Component Trolley
429
7.2.4 Dimensions of SIPLACE X-Series Component Trolley
7

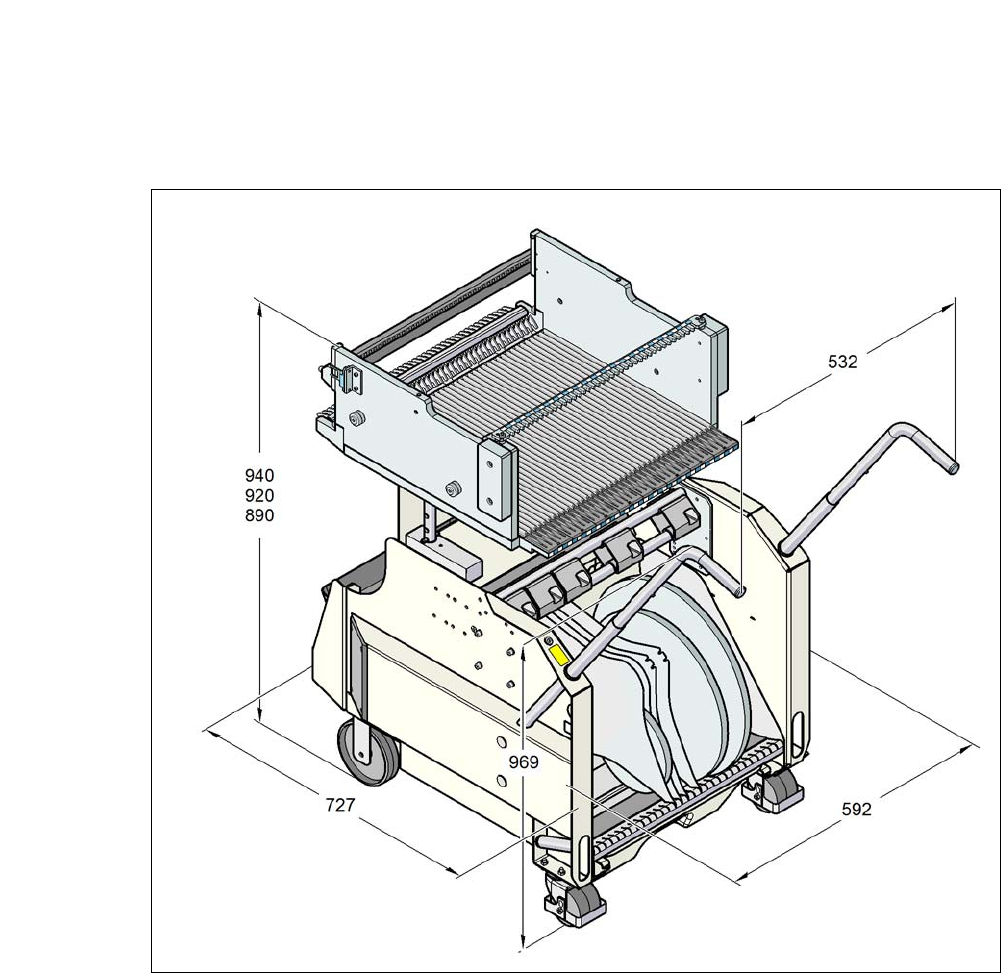

Fig. 7.2 - 5 Dimensions of the SIPLACE X-Series component trolley; all dimensions in millimeters
7 Component and Die Handling User Manual SIPLACE CA-Series
7.2 SIPLACE X-Series Component Trolley From software version SC.708.0 Edition 12/2014 EN -DRAFT
430
7.2.5 SIPLACE X-Series Changeover Table
The front slider guides of the feeder modules are placed on the insertion aid (item 1 in fig. 7.2 - 6).
When pushed in, the slider guides of the
feeder module (item 12 and 13 in fig. 7.1 - 2
) slide on the guide profile (item 2 in fig. 7.2 - 6) up to
the stop rail (item 4 in fig. 7.2 - 6
). A centering hole (item 5 in fig. 7.2 - 6) on the stop rail accom-
modates the X feeder module centering pin "front" (item 4 in fig. 7.1 - 1
). At the same time, the
changeover table locking latch (item 1 in fig. 7.2 - 7
) engages with the locking roller (item 1 in fig.
7.1 - 1
) of the feeder module. The centering pin "rear" (item 12 in fig. 7.1 - 1) on the upper side of
the feeder module is accommodated by the recess in the centering bar (item 3 in fig. 7.2 - 6
).
7

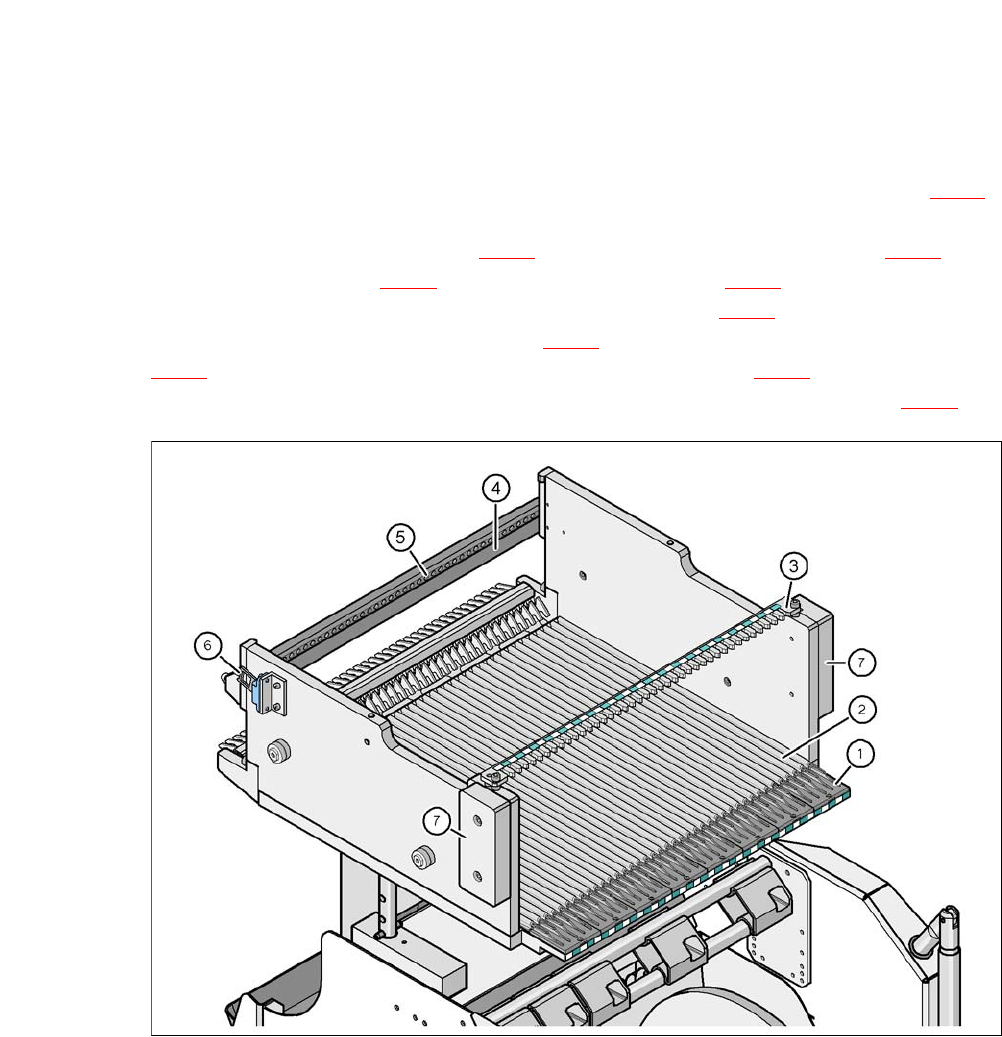

Fig. 7.2 - 6 Changeover table, SIPLACE X-Series, rear view
(1) Insertion aid
(2) Guide profile (Ω profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Contact for switching the safety switch of the EMERGENCY STOP circuit
(7) Hand guard
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.2 SIPLACE X-Series Component Trolley
431
7
Fig. 7.2 - 7 SIPLACE X-Series changeover table, front view
(1) Locking latches
(2) Centering pin on the changeover table
(3) Compressed air coupling
(4) Earthing (ground) pin
(5) Centering hole on the changeover table
