7 Component and Die Handling User Manual SIPLACE CA-Series 7.2 SIPLACE X-Series Component Trolley From software version SC.708.0 Edition 12/2014 EN -DR AFT 432 7.2.6 Mount for Additional T ape Reel (X-Series) 7 Fig. 7.2 …
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.2 SIPLACE X-Series Component Trolley
431
7

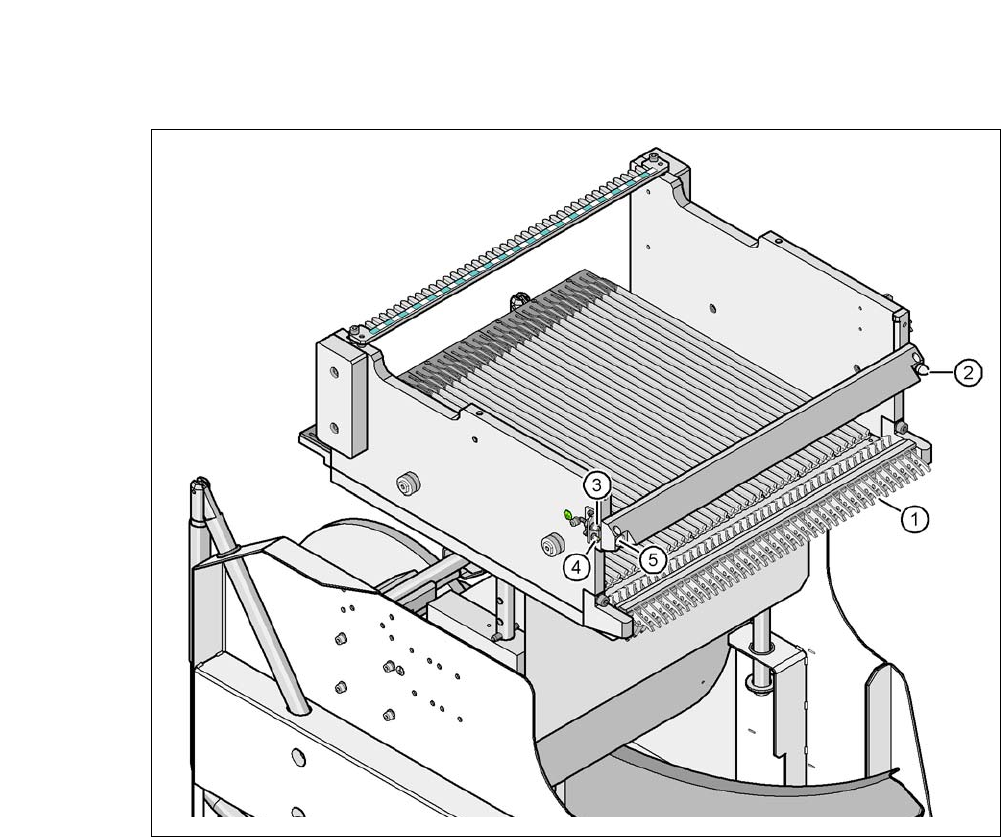

Fig. 7.2 - 7 SIPLACE X-Series changeover table, front view
(1) Locking latches
(2) Centering pin on the changeover table
(3) Compressed air coupling
(4) Earthing (ground) pin
(5) Centering hole on the changeover table
7 Component and Die Handling User Manual SIPLACE CA-Series
7.2 SIPLACE X-Series Component Trolley From software version SC.708.0 Edition 12/2014 EN -DRAFT
432
7.2.6 Mount for Additional Tape Reel (X-Series)
7

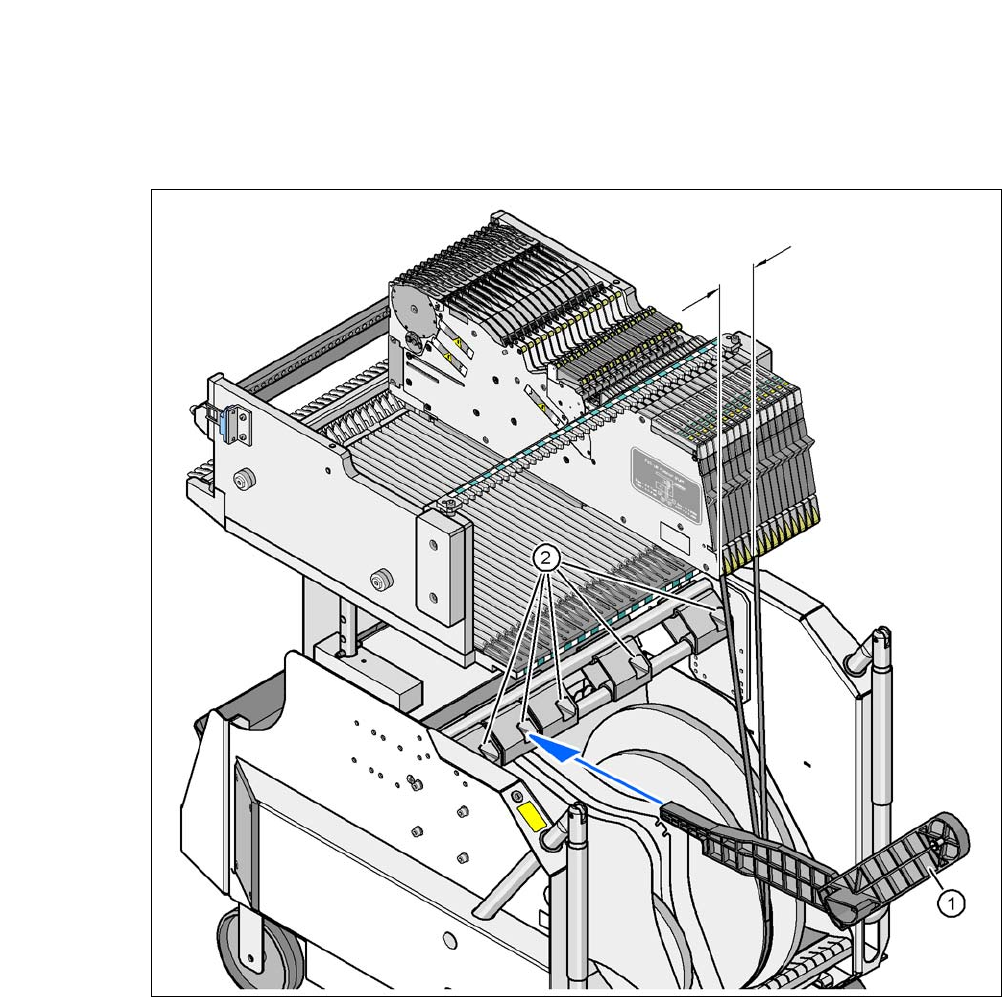

Fig. 7.2 - 8 Mount for Additional Tape Reel (X-Series)
(1) Mount for additional tape reel [00141217-xx]
(2) Mounting device for the support
X-Series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
reels can be positioned above the tape container.
Max. 60 mm
User Manual SIPLACE CA-Series 7 Component and Die Handling
From software version SC.708.0 Edition 12/2014 EN -DRAFT 7.2 SIPLACE X-Series Component Trolley
433
7.2.7 SIPLACE X-Series Tape Container
7.2.7.1 Description
The tape container can hold reels up to 19" (483 mm) in diameter. The insertion of separating
plates is described in section 6.6.5
page 368.
7

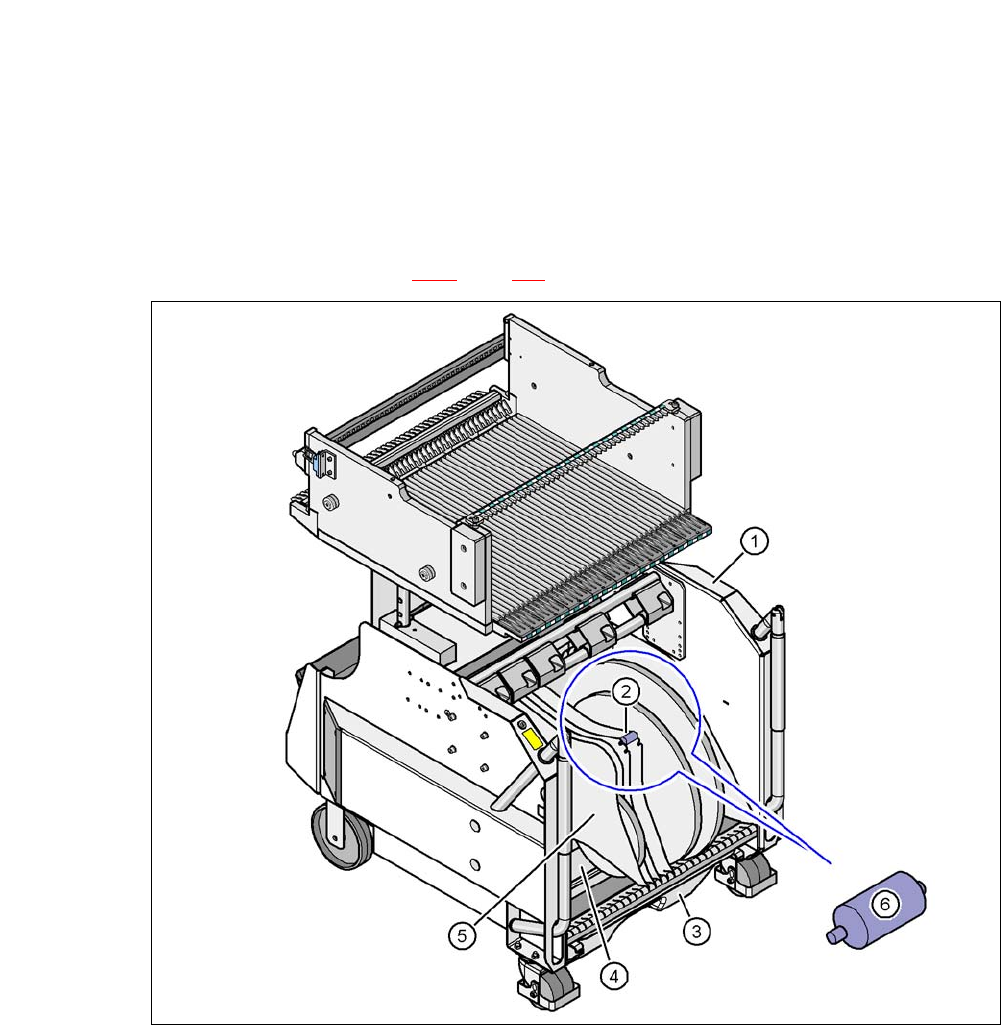

Fig. 7.2 - 9 SIPLACE X-Series component trolley, with tape container
(1) Component trolley
(2) Position of spindles
(3) Waste tape container
(4) Tape container
(5) Separating plate
(6) Spindle (zoom)
