User manual SIPLACE CA-Series 8 Station Extensions From software version SC.708.0 Edition 12/20 14 EN -DRAFT 8.1 Nozzle Changers 461 Nozzle magazine for 28xx nozzles 8 8 Fig. 8.1 - 12 Nozzle m agazine for 28xx nozzles (1…
8 Station Extensions User manual SIPLACE CA-Series
8.1 Nozzle Changers From software version SC.708.0 Edition 12/2014 EN -DRAFT
460
Nozzle magazine for 20xx nozzles 8
8

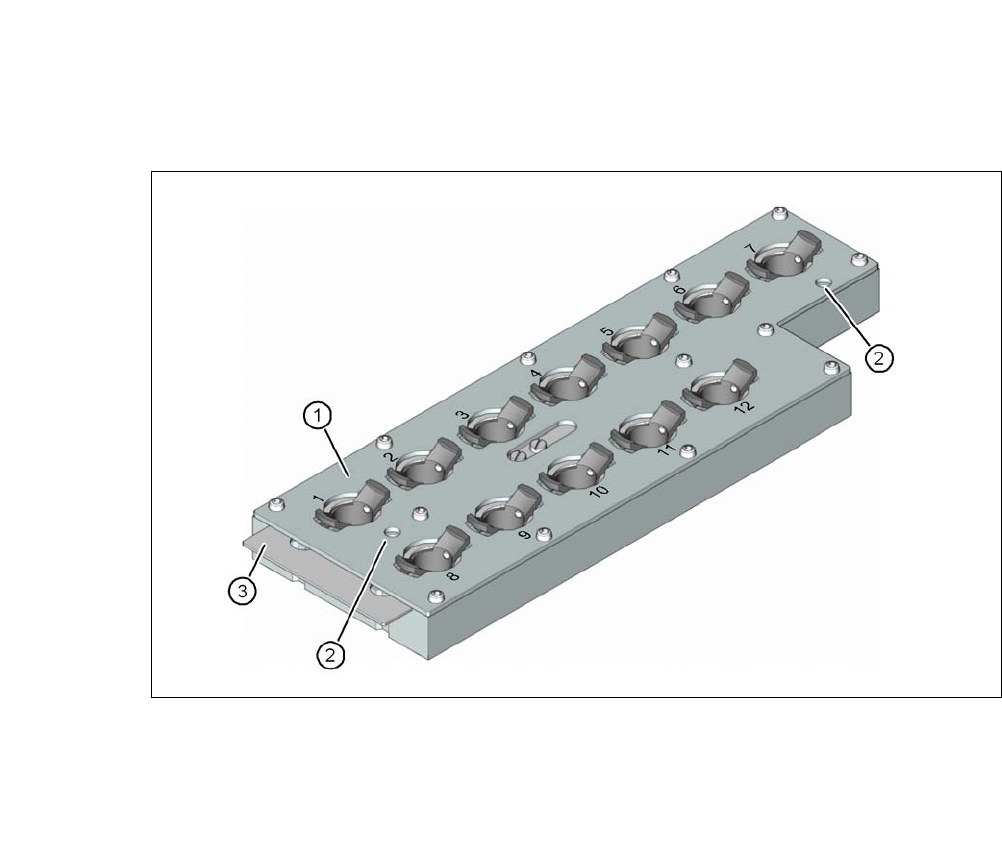

Fig. 8.1 - 11 Nozzle magazine for 20xx nozzles - locking plate open
(1) 12 garages for 20xx nozzles
(2) Fiducials (only visible when locking plate open)
(3) Locking plate
8
8
8
User manual SIPLACE CA-Series 8 Station Extensions
From software version SC.708.0 Edition 12/2014 EN -DRAFT 8.1 Nozzle Changers
461
Nozzle magazine for 28xx nozzles 8
8
Fig. 8.1 - 12 Nozzle magazine for 28xx nozzles
(1) 5 garages for 28xx nozzles with a maximum nozzle length of 12.5 mm
(garage numbers 1, 5, 6, 8 and 9)
(2) 4 garages for 28xx nozzles with a maximum nozzle length of 16.5 mm
(garage numbers 2, 3, , 4 and 7)
(3) Fiducials (only visible when locking plate open)
8 Station Extensions User manual SIPLACE CA-Series
8.1 Nozzle Changers From software version SC.708.0 Edition 12/2014 EN -DRAFT
462
8.1.3.2 Technical Data
8
8.1.3.3 Nozzle Changer "Row 2" for the SIPLACE MultiStar
The "nozzle changer for row 2" option enables you to configure an additional row of nozzle chang-
ers for the SIPLACE MultiStar.
The retrofit package contains the nozzle changer and an assembly kit.
Nozzle changer for the SIPLACE MultiStar and SIPLACE SpeedStar
Dimensions (length x width x height) 449 x 94.5 x 55 mm³
Number of nozzle holders
Type 20xx 60
Type 28xx 9
Type 10xx, 11xx, 12xx 72
Nozzle types 20xx (CPP head)
28xx (CPP head)
10xx, 11xx, 12xx (C&P20 head)
Nozzle changeover time Approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
