8 Station Extensions User manua l SIPLACE CA-Series 8.6 Matrix Tray Changer From software version SC.708.0 Edition 12/2014 EN -DR AFT 484 8.6.4.1 Dimensions 8 Fig. 8.6 - 1 Matrix tray changer , dimensions, all data in mi…
User manual SIPLACE CA-Series 8 Station Extensions
From software version SC.708.0 Edition 12/2014 EN -DRAFT 8.6 Matrix Tray Changer
483
8.6.4 Installation Notes for the MTC
An MTC can be docked onto locations 2 and 4 of the SIPLACE CA-Series, in place of the compo-
nent trolley.
8
PLEASE NOTE
On request only
– If you want to use an MTC, please contact ASM Assembly Systems GmbH & Co.KG.
8 Station Extensions User manual SIPLACE CA-Series
8.6 Matrix Tray Changer From software version SC.708.0 Edition 12/2014 EN -DRAFT
484
8.6.4.1 Dimensions
8

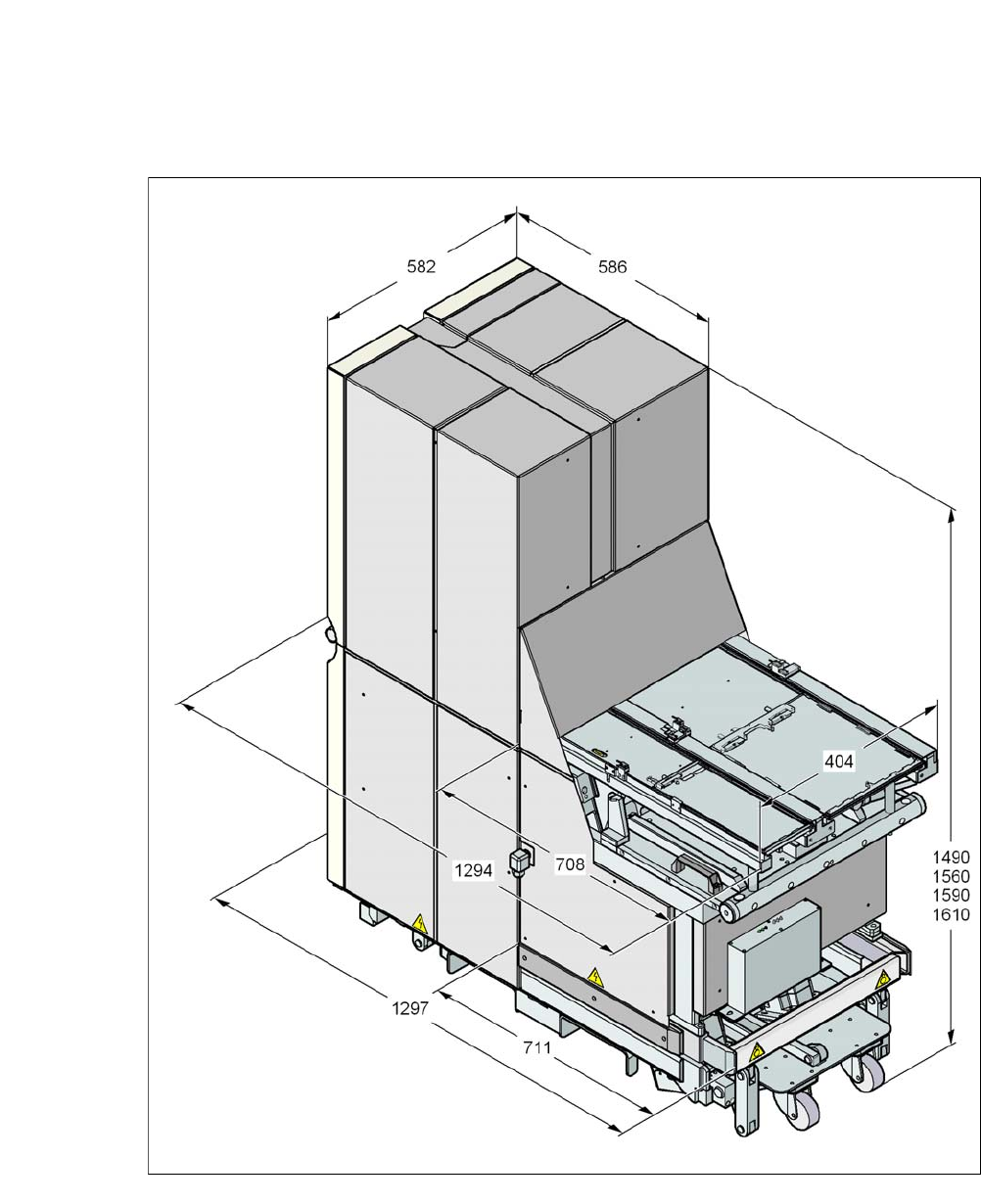

Fig. 8.6 - 1 Matrix tray changer, dimensions, all data in millimeters
User manual SIPLACE CA-Series 8 Station Extensions
From software version SC.708.0 Edition 12/2014 EN -DRAFT 8.6 Matrix Tray Changer
485
8.6.4.2 Controls
8
Fig. 8.6 - 2 Matrix tray changer, back view
(1) Main switch
(2) EMERGENCY STOP button
(3) Tower 1 for accommodating max. 30 waffle pack tray carriers (up to 60 JEDEC trays)
(4) Tower 2 for accommodating max. 40 waffle pack tray carriers (up to 40 JEDEC trays)
(5) Attachment point for crank used to adjust the matrix tray changer height
