User Manual SIPLACE CA-Series 2 Operational Safety From software version SC.708.0 Edition 12/20 14 EN -DRAFT 2.2 Warning Labels on the Placement Machine 53 2.2.5 W arning Label W and Informat ion Plate H on the Power Sup…
2 Operational Safety User Manual SIPLACE CA-Series
2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
52
2.2.4 Warning Label W206 and W1 on the Power Supply
2
W206 in fig. 2.2 - 6 [03009345-01] (quantity per machine: 1) and item W1
Fig. 2.2 - 6 Warning label W206 on service socket X102 and W1 on main power switch Q1
Item W206 [03009345-01]
item W1, warning label on main switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.2 Warning Labels on the Placement Machine
53

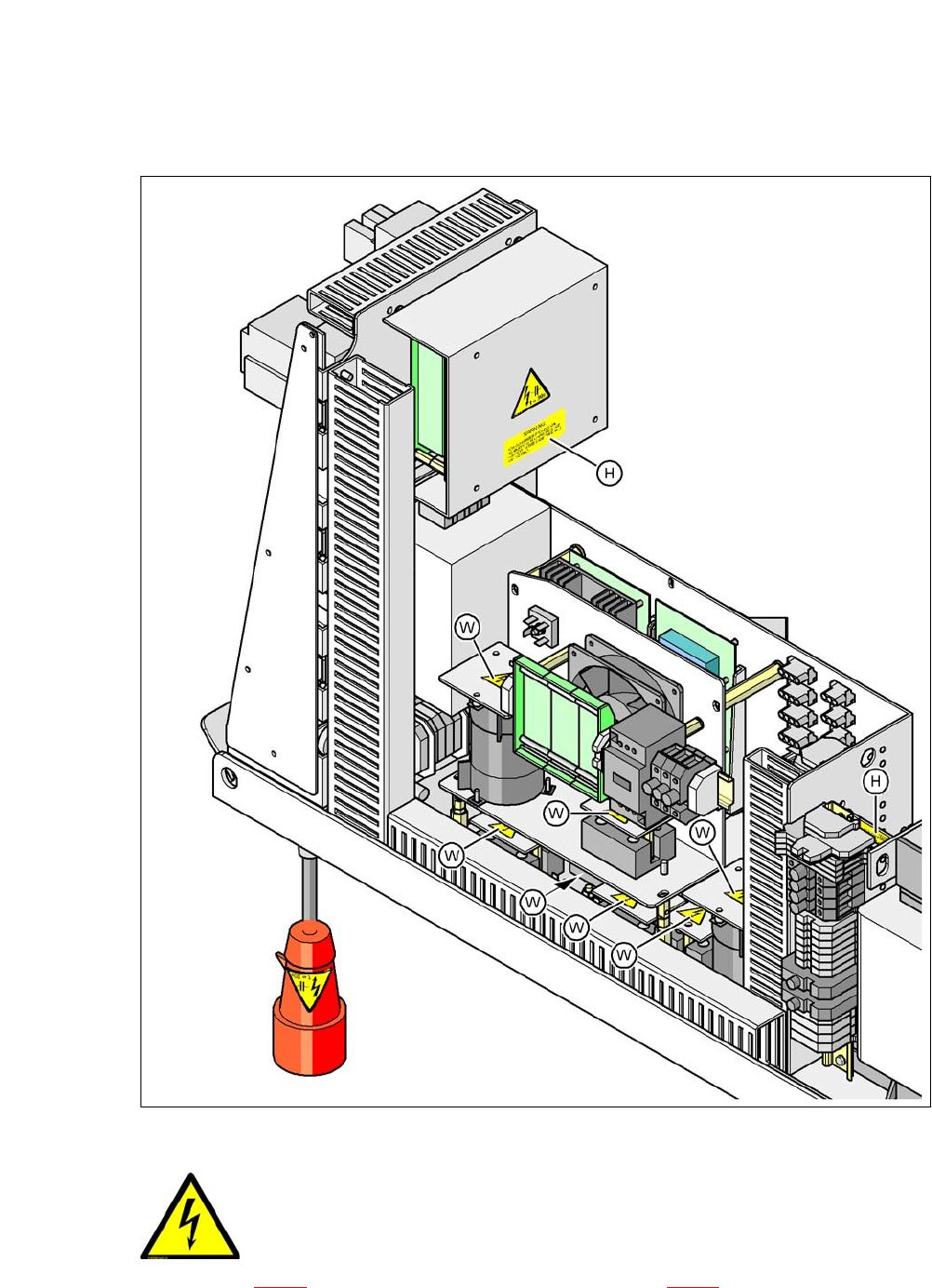

2.2.5 Warning Label W and Information Plate H on the Power Supply
Fig. 2.2 - 7 Danger Sign W and Information Plate H at the Power Supply
2
Item W in fig. 2.2 - 7 (quantity per power supply: 8) see also fig. 2.2 - 8
2 Operational Safety User Manual SIPLACE CA-Series
2.2 Warning Labels on the Placement Machine From software version SC.708.0 Edition 12/2014 EN -DRAFT
54
Item H in fig. 2.2 - 7
(quantity per power supply: 2)

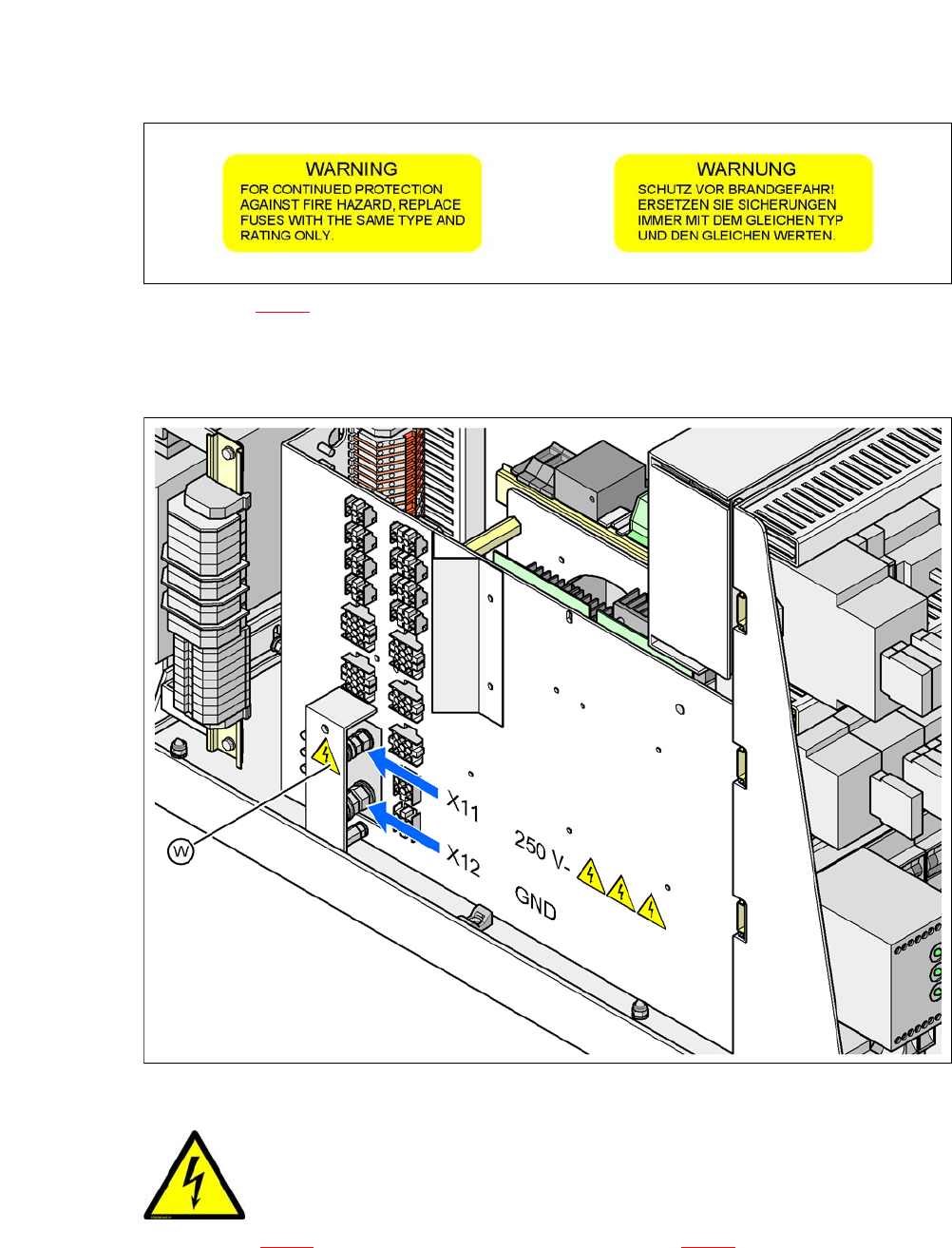

2.2.6 Warning Label W on the Cover of the Servo Amplifier Power Supply
Fig. 2.2 - 8 Warning Label W on the Cover above the Power Supply Unit for the Servo Amplifier
2
Item W in fig. 2.2 - 8 (quantity per power supply: 8) see also fig. 2.2 - 7
