2 Operational Safety User Manual SIPLACE CA-Series
2.8 Safety Features From software version SC.708.0 Edition 12/2014 EN -DRAFT
98
2.8.5 Hand Guard on the Locations for the Component Trolley, SIPLACE X-Series
2

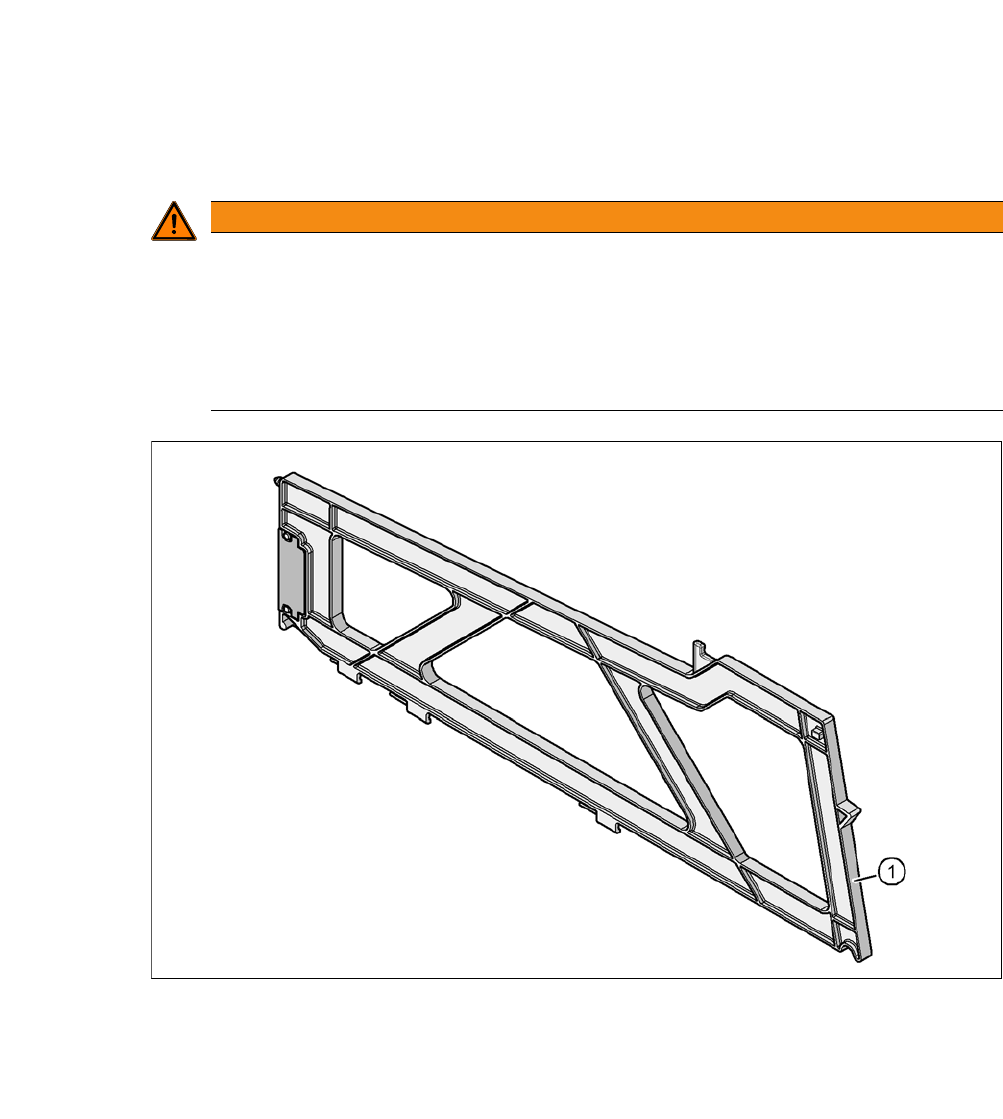

Fig. 2.8 - 9 Hand guard on the component trolley locations, SIPLACE X-Series
2
(1) Hand guard for 1 location [03028842-01]
The hand guard occupies an 8 mm - location and can be changed during placement operations.
WARNING
Operational
Operational safety by occupying every second location!
The operational safety of the component trolley in the SIPLACE X-Series is ensured if at
least every second free location is occupied with a feeder module or a hand guard (dum-
my feeder).
Even when configuring a holder for waffle pack trays, secure every second location
with a hand guard.
User Manual SIPLACE CA-Series 2 Operational Safety
From software version SC.708.0 Edition 12/2014 EN -DRAFT 2.9 Residual Voltages and Discharge Times
99
2.9 Residual Voltages and Discharge Times
2.9.1 (Placement) Machine
If the EMERGENCY STOP button is pressed or the placement system is switched off, the 250
VDC link voltage for the gantry axes and the 145 VDC link voltage for the star axes are reduced
to harmless residual voltages in a very short time.
2
2
Fig. 2.9 - 1 Power supply unit
(1) Padlock with bolt in the cover
(2) Main switch
(3) Power supply unit behind the cover
(4) Axis unit
DANGER
Dangerous voltage levels!
The machine is supplied with 3 x 208 V~, 3 x 230 V~, 3 x 380 V~, 3 x 400 V~ or
3 x 415 V~ ± 5 %, 50/60 Hz mains voltage. Parts of the system therefore carry lethally
hazardous voltages - even when the main switch is switched off.
Incorrect handling of this machine can therefore result in death or severe injury or consid-
erable damage to equipment.
Always follow the applicable accident prevention and DIN regulations (particularly EN
60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own coun-
try.
The covers over the power supply unit may ONLY be opened by appropriately quali-
fied and trained personnel.
2 Operational Safety User Manual SIPLACE CA-Series
2.9 Residual Voltages and Discharge Times From software version SC.708.0 Edition 12/2014 EN -DRAFT
100

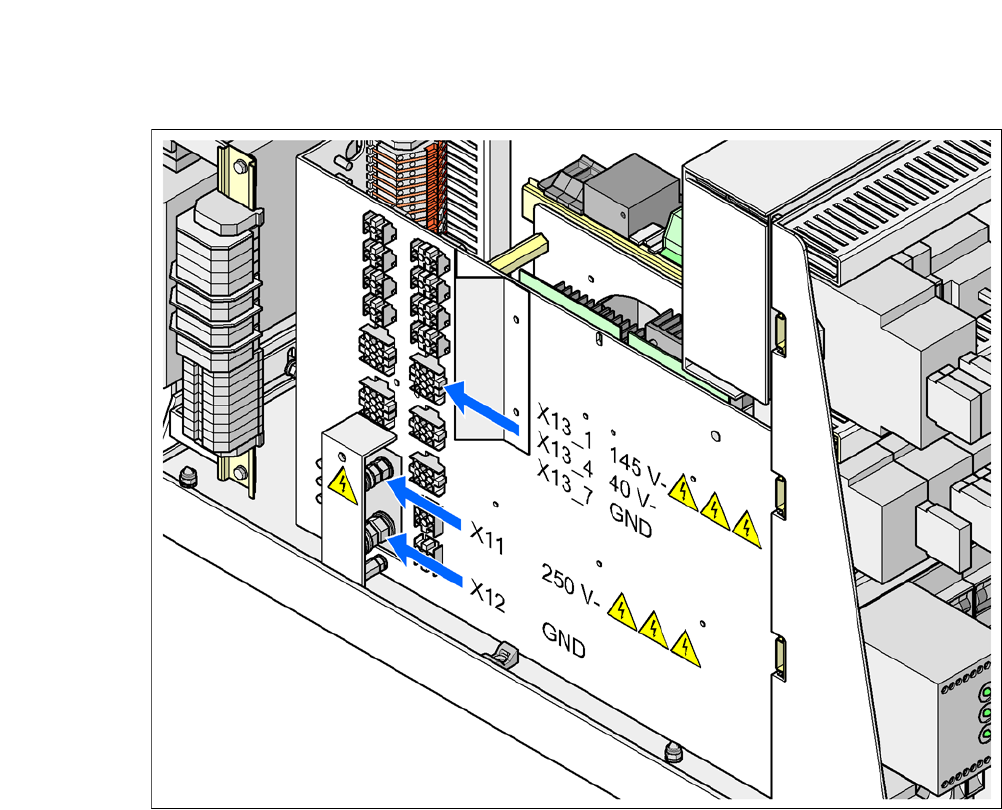

Fig. 2.9 - 2 Measuring points on the power supply unit
2
