5.2 Setup for Auger Valve without Encoder Motor

5.2.1 Seclect Controlling Mode

The TS570R can be used as a stand-alone controller or can be integrated to

any robotic systems.

A. To use as stand-alone controller:

Go to setup screen to check for controlling mode. If the icon “C” is showing,

then it is already set as stand-alone controlling mode. If the icon “R” is

showing, press this icon to change to “C”

B. To use as integrated controller to robot/automation:

Press icon “C” to change to “R”

]

Stand-alone controlling

mode

Robot mode (integrate

to robotic system)

5.2.2 Voltage Input Adjustment

Note: Input voltage controls the motor speed (RPM). Higher input voltage

will increase motor speed and vice versa lower input voltage will decrease

motor speed. Recommended input voltage range is 5-24VDC.

1. Touch the Input Voltage Icon to enter the setup screen

2. Touch the Up and Down arrows to set the desired input voltage. Maximum

input voltage is 24VDC.

3. Touch the Check Mark icon to save and exit

5.2.3 Pressure Adjustment

Note: Pressure on port A is a contanst pressure.

Pressure on port B is synchronized with the motor signal. It only turns on

when the dispense cycle is activated.

1. Output pressure on Port A and B wil be displayed in the following window:

Pressure to port A.B can be adjusted from 0 to 100 psi by rotating the

pressure adjustment knob.

2. Rotate the adjustment knob in the counterclockwise direction to descrease

output pressure.

3. Rotate the adjustment knob in the clockwise direction to increase output

pressure.

Note: To ensure output pressure to A.B matches manual pressure

adjustments, please make sure pressure calibration Section 5.1.2 has been

completed.

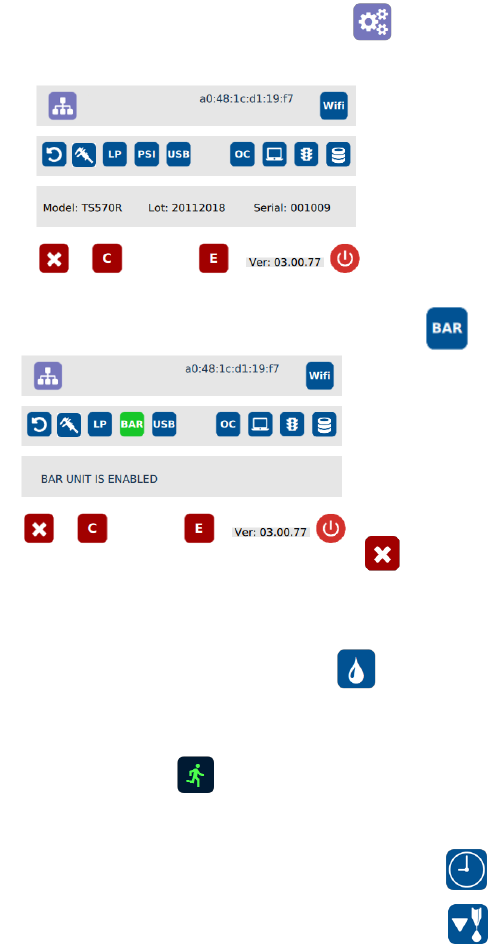

5.2.4 To Change Pressure Unit Display

Note: The default pressure unit is PSI. To change pressure unit to BAR,

follow the instructions below.

1. Touch the Setup icon to enter the setup screen

2. Touch the “BAR” icon to change pressure unit to BAR

3. Touch the X icon to save and exit

5.2.5 Manual/Purge Dispense Cycle Setting:

1. Touch the Purge icon to select purge cycle.

The Purge icon will turn to green color.

2. Press and hold down the foot switch to activate the purge dispense cycle.

Alternately, touch and hold the Run icon on the display to activate the

purge dispense cycle.

5.2.6 Automatic Dispense Cycle Setting:

1. Touch the “Timed” mode icon to set the dispense time.

The icon will turn to green color.

2. Touch the “Dispense” icon to enter the setup screen

3. Touch the Up and Down arrows to set the desired dispense time
