13. Type “ipconfig” then press enter
14. Record the IPv4 address shown in the “IPv4 Address” line on the above
screen; For this example, the Server IP address is: 172.16.40.151
This IP address will be entered in the controller screen
27
15. Connect the ethernet cable to the ethernet port of the controller
16. Go to the setup screen of the controller and touch the “Remote
Server” icon
17. Enter the IPv4 address recorded in step #14 into Remote IP address box
18. Touch the green check mark icon to save
19. The controller is now registered on the web-based application.
28
6.2 Making Parameters Adjustment from the websever
Go back to the webserver site and click on the “Controllers” menu
Click on the active controller link

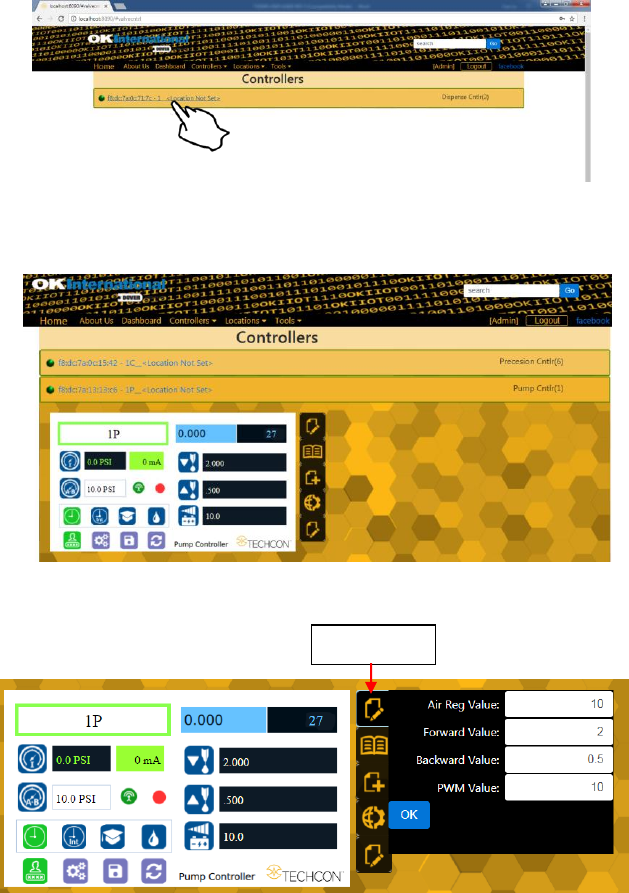

The controller screen will be displayed in the webserver as shown below.
The controller parameters such as pressure and dispense time can be adjusted
from the webserver.
Click on the “Edit” icon
The parameter screen will appear as shown below:
Proceed to make changes
Click “OK” button to save
The new parameter will be displayed on the controller.
“Edit” Icon
