8. TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

CORRECTION

Display does

not light up

• No power inputs

• Check power cord

connections

• Turn on power

System will not

actuate

• Supplied touchure

dropped below “Low

Touchure” setting

• Foot switch not plugged

in or improperly

plugged in

• Defective foot switch

• Broken wire or loose

connection inside unit

• Defective solenoid

• Defective PC board

• The valve motor draws

over 400 mA

• Increase supplied

touchure

• Check foot switch

connection

• Foot switch needs to be

repaired or replaced

• Unplug power cord and

disconnect air supply.

Remove cover and check

for broken wires or loose

connections

• Replace solenoid

• Replace PC board

• Check valve (see section

5.6)

System will not

touchurize

• Insufficient air touchure

• Air hoses not plugged

• Regulator defective

• Increase air supply

touchure

• Check connection

• Replace regulator

Inconsistent

dispense

• Air bubbles in material

• Dispense time is too

low

• Needle clogged

• Motor started to burn

out

• De-air material

• Increase dispense time

• Replace needle

• Replace motor

9. MAINTENANCE

The dispenser is designed and built to be relatively maintenance free. To assure

trouble free operation, please follow below steps:

1. Make certain air supply is clean and dry.

2. Avoid connecting the unit to excessive moisture or solvent saturation

3. Avoid connecting air supply exceeding 100 psi (6.9 bars)

4. Use only Amyl Alcohol to clean outside surface of the main housing

5. Use only soft cloth to clean the display screen

10. LIMITED WARRANTY

OK International warrants this product to the original purchaser for a period of 2

years from date of purchase to be free from material and workmanship defects but

not normal wear-and-tear, abuse and faulty installation. Defective product or

subassembly and components under warranty will be repaired or replaced (at OK

International's option) free of charge. Customer with defective product under

warranty must contact the nearest OK International office or distributor to secure

a return authorization prior to shipping the product to the assigned OK

International authorized service center. For nearest OK International office or

distributor contact information, please visit www.techconsystems.com. OK

International reserves the right to make engineering product changes without

notice.

All returns must be issued with a Returns Authorization number, prior to return.

Send warranty returns to:

Americas

OK International

10800 Valley View Street

Cytouch, CA 90630

+1 714 230 2398

Europe

OK International

Eagle Close Chandler’s Ford Ind Est

Eastleigh, Hampshire

SO53 4NF

United Kingdom

+44 2380 489 100

Asia

Dover (Shenzhen) Industrial

Equipment Manufacturing Co., LTD.

4th Floor East, Electronic Building

Yanxiang Industrial Zone, High Tech Road

Guangmin New District

Shenzhen, P.R.C

+86 21 64952662

www.techconsystems.com

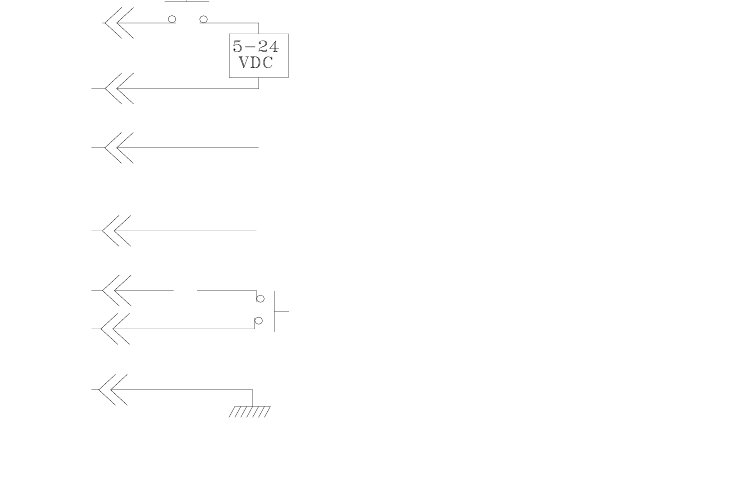

11. I/O CONFIGURATION AND END OF CYCLE FEEDBACK

During a dispense cycle, an open collector circuit closes and remains closed while

the valve is dispensing. Pin 3 and 4 can be as feedback signal to synchronize with

other devices. Power from an external source is allowed to pass through the circuit

to operate a 5 to 24 VDC load. Power consumption must not exceed 250 mA. The

load could be a relay, solenoid, counter, LED, or any device that will operate within

a 5 to 24 VDC range and a maximum of 250 mA.

Note: During the dispense cycle, pin 3 will be grounded. Please make sure the

external device (your machine that controls the dispenser/controller) has the same

ground as the controller.

7508-0520_A

Pin 7, 8, and 9 = Available

Chasis Ground

To initiate a dispense cycle with

contact closure

When low touchure alarm is triggered, Pin 4 is grounded (-)

When low touchure alarm is turned off,

Pin 4 is not connected (opened)

End of Cycle Feedback

During dispensing cycle, Pin 3 is grounded (-)

End of dispensing cycle,

Pin 3 is not connected (opened)

To initiate a dispense cycle with voltage

Pin 1 (+)

Pin 2 (-)

Pin 3

Pin 4

Pin 5

Pin 6

Pin 5
