5.1.1 Login

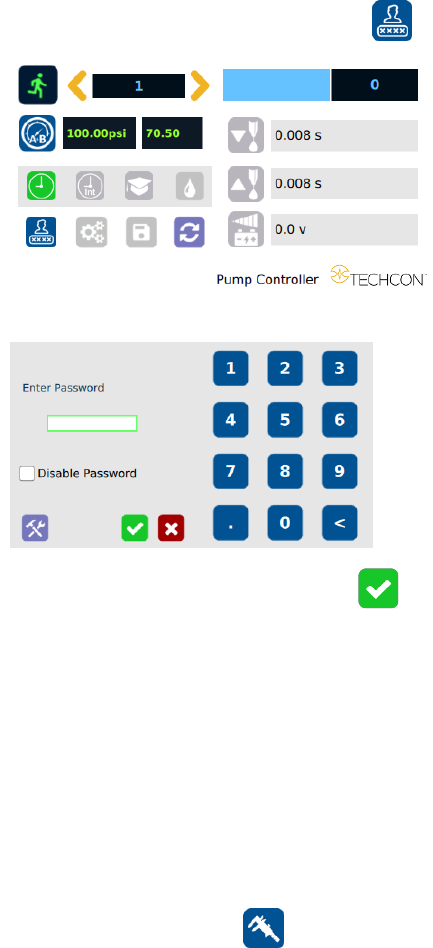

1. Touch the Login icon to enter the login screen

2. Enter “0000” in Password window

3. Touch the Check Mark icon to save and exit

5.1.2 Pressure Calibration

Note: Pressure calibration must be performed when the unit is activated for

the first time.

1. Using a pressure gauge, verify that the input pressure line is delivering

approximately 100 psi

Note: If input pressure is not 100 psi, calibration will result in a

mismatch between the display pressure and the actual pressure on output

port A.B

2. Once you have verified input pressure, touch the Calibration icon

to enter calibration screen.

3. Turn pressure adjustment knob counterclockwise until the wheel can no

longer be turned.

4. Touch the 0 icon to set the pressure to 0

5. Turn pressure adjustment knob clockwise until display output pressure is

100 psi

6. Touch the 100 icon to set the pressure to 100

Warning: Do not turn knob all the way clockwise. 100 psi upper bound should

be set as soon as display output pressure goes from 99 to 100 psi. Continuing

to turn knob clockwise despite pressure on display already being set at

100psi will result in incorrect output pressure readings if the 100 icon were to

be pressed at that time.

Note: The digital values shown at “0” and “100” icons are for reference only.

The actual calibrated values will be different

7. Touch the Reboot icon to save the settings and reboot the system

8. Wait until the system completes the rebooting sequence and the home

screen is displayed

The unit’s pneumatic system is now calibrated and ready to operate

5.2 Setup for Auger Valve without Encoder Motor

5.2.1 Seclect Controlling Mode

The TS570R can be used as a stand-alone controller or can be integrated to

any robotic systems.

A. To use as stand-alone controller:

Go to setup screen to check for controlling mode. If the icon “C” is showing,

then it is already set as stand-alone controlling mode. If the icon “R” is

showing, press this icon to change to “C”

B. To use as integrated controller to robot/automation:

Press icon “C” to change to “R”

]

Stand-alone controlling

mode

Robot mode (integrate

to robotic system)
