Samsung Component Placer SM421 Service Manual 4-8 NO. P ART NO. P ART N AME Q ’ TY TYPE REMARK 1 1-B J7155544A FOOT BRACKET - L 1 J7155544A 1 1-C J7155545A FOOT BRACKET -R 1 J7155545A 1 1-D J7155546A INSERT 6 J7155546A 1…
Head Module
4-7
4.1.4. Carrier Ass’y
NO. PART NO. PART NAME Q’TY TYPE REMARK
1 J1201033 HEX SUPPORT 4 M3*15 (BOLT-NUT)
2 J6103003A HEX SUPPORT 4 M3*5 (BOLT-NUT)
3 J6119056A HANDLE 1 BG-10
4 J6713022B COIL TUBE(POLYURETHANE) 6 J6713022B
5 J70541125A HEAD_COVER_SUPPORT 2 J70541125A
6 J7055662A VACUUM SENSOR BRACKET 2 J7055662A
7 J71541016A HARNESS_SUPPORT 2 J71541016A
8 J71541019A HEAD_BOARD_BRACKET 1 J71541019A
9 J71541085A HARNESS_PLATE 1 J71541085A
10 J71541086A HEAD_TOP_COVER 1 J71541019A
11 J90550246E AIR MODULE 1 J90550246E
11-G J6702048A SOLENOID VALVE 6 VA01PEP34-1U-F
11-H J6702049A SOLENOID VALVE 1 RCS242-M3-D24NP
11-L J6703039A SPEED CONTROLLER 2 SPR-Z-M3N
11-N J6705009A SILENCER 1 AS-5
11-E J6711260A ONE TOUCH FITTING 2 FSE04-M5C
11-F J6711261A ONE TOUCH FITTING 6 FSC04-M5C
11-K J6711262A MINI FITTING 6 BC-03-M5
11-M J6711263A MINI FITTING 2 BE-04-M3
11-O J6712016A PLUG 1 N220 1900J
11-A J71551001B MANIFOLD 1 J71551001B
Samsung Component Placer SM421 Service Manual
4-8

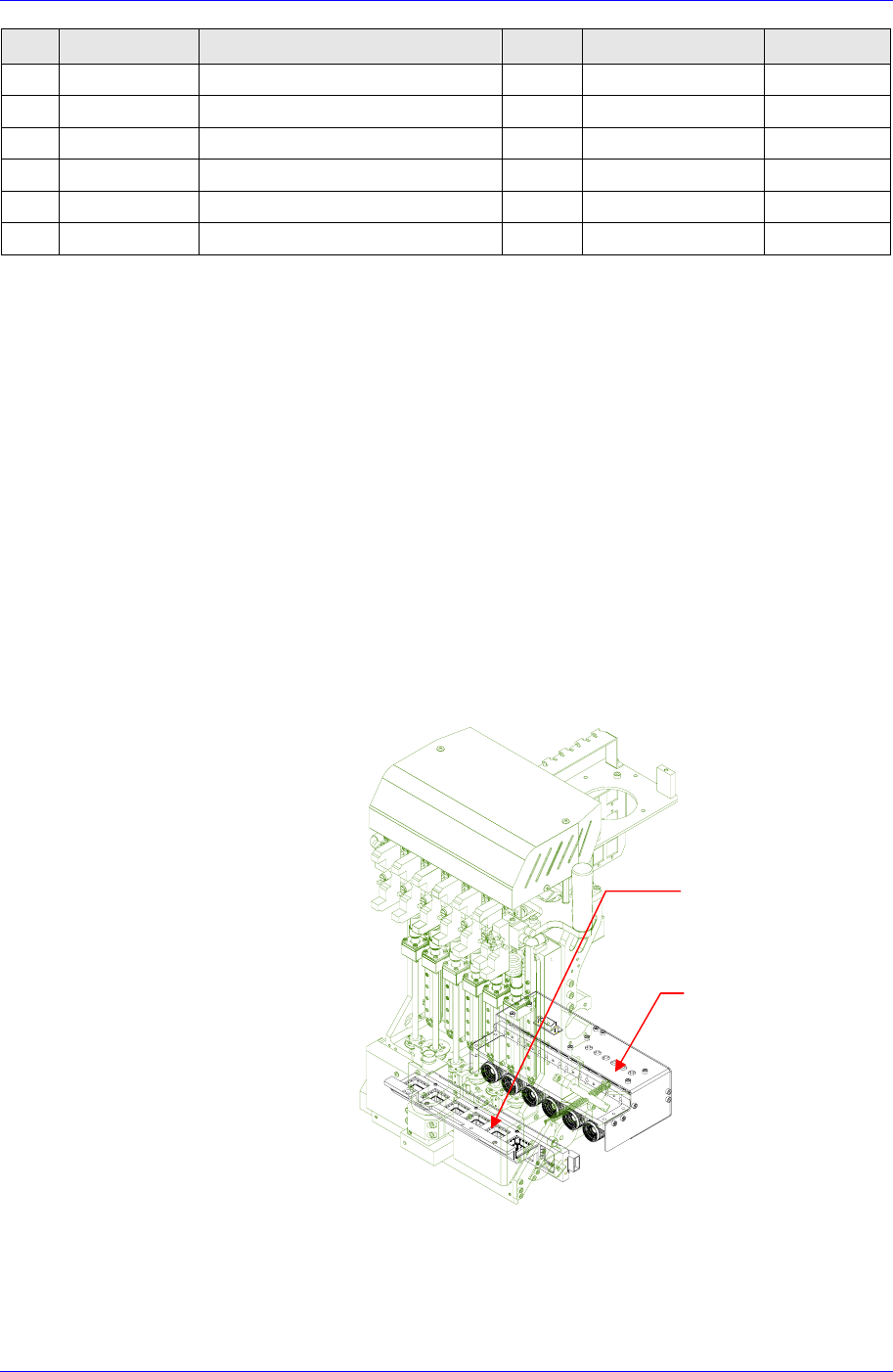

NO. PART NO. PART NAME Q’TY TYPE REMARK
11-B J7155544A FOOT BRACKET-L 1 J7155544A
11-C J7155545A FOOT BRACKET-R 1 J7155545A
11-D J7155546A INSERT 6 J7155546A
11-J J7458002A FILTER ELEMENT 6 LF-M5-60-Z-ELEMENT
11-I J9058090A FILTER ASSY 6 J9058090A
12 J9060412A SM321 VACUUM SENSOR BOARD 1 J9060412A
4.2. Flying Vision
4.2.1. Flying Vision 替换代表事例
由于头部冲击， Flying Vision 被损坏时
Flying Camera 影像输出出现异常时
为贴装微小部件，替换成其他配戴 FOV 的摄像机时
4.2.2. 必要工具
T Wrench (其他提供工具) or Hex Wrench
4.2.3. Flying Vision 替换次序
该替换次序以 Flying Vision 的 Moduel 单位替换为前提。
Flying Vision
Flying Camera
Outer Illumination
Head Module
4-9

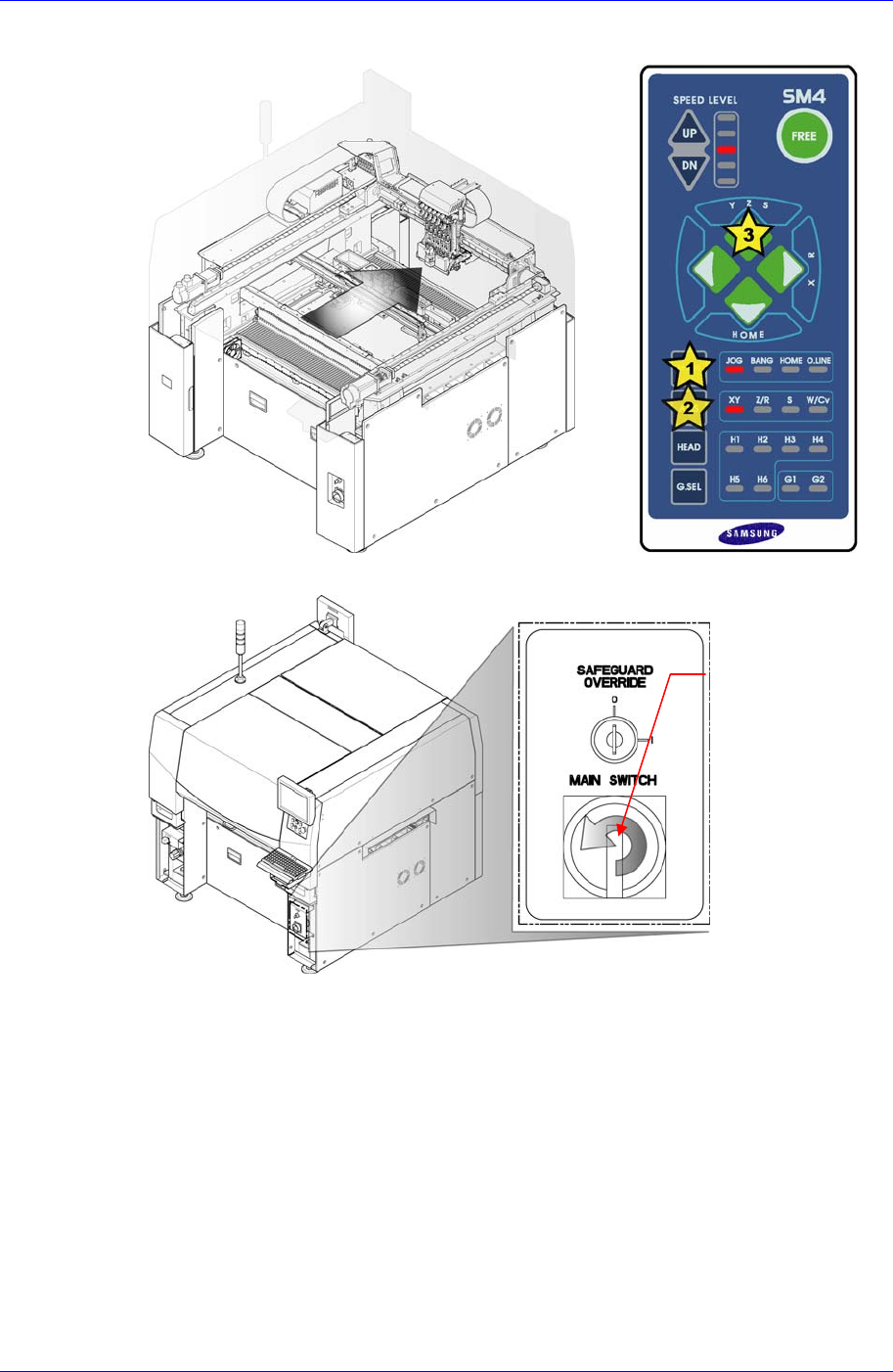

1. 操作示教框，把X Frame移动到后面。
2. 请正常关闭PC后，关闭设备前面的Main Switch。
Main Switch 的 OFF
方向 (逆时针方向)
