X-Y Frame
6-1
第 6 章. X-Y Frame
6.1. X-Y Frame 所需材料

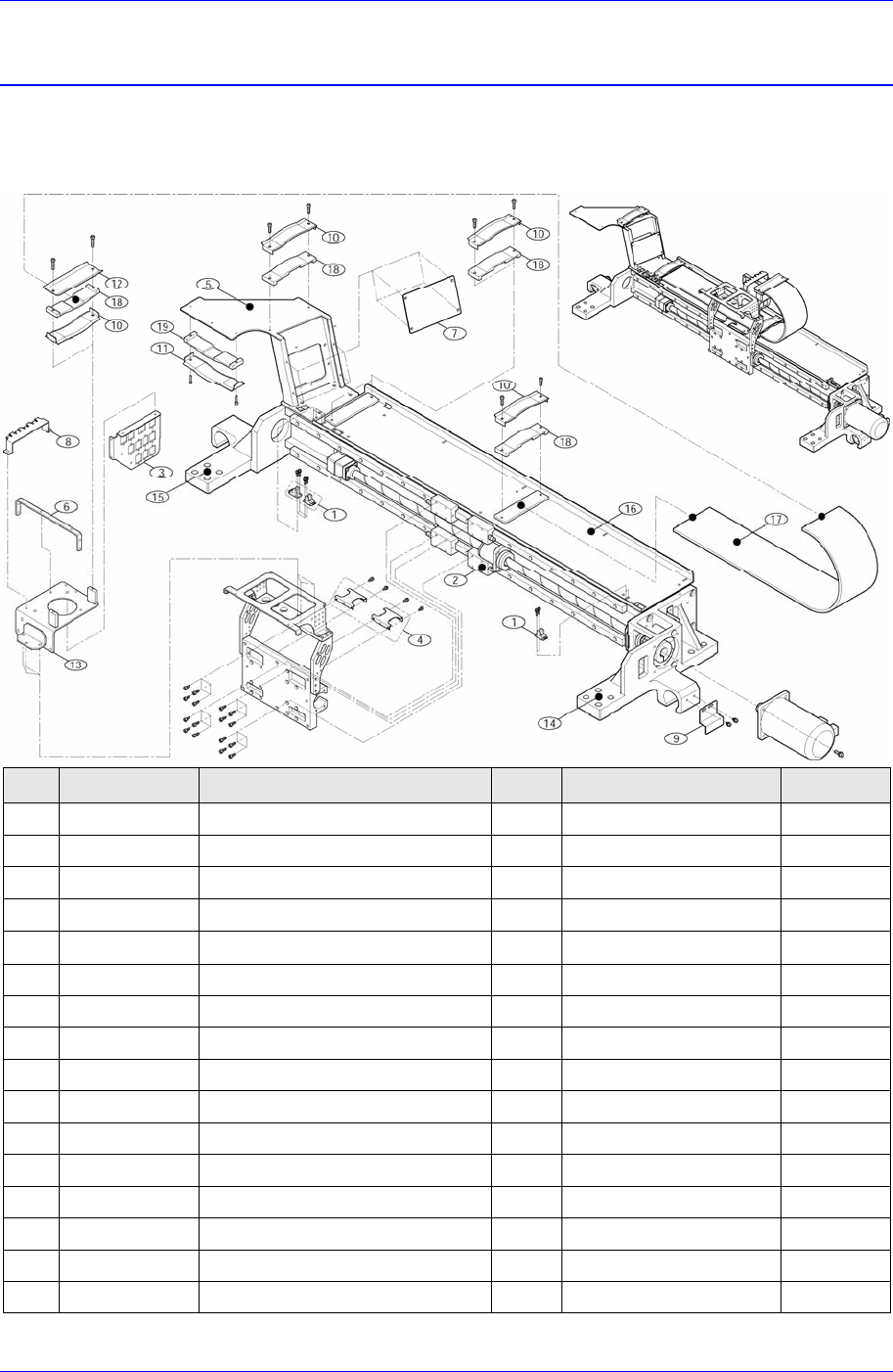

6.1.1. X-Frame Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J3212022A PHOTO SENSOR 3 EE-SX674
2 J66070076B LM_GUIDE 2 SSR15XW2UUC1+940LHY-II
3 J70541015A CONNECTOR_PANNEL 1 J70541015A
4 J70541038A SENSOR_DOG_X 2 J70541038A
5 J70541114A BKT_CABLE_CHAIN_Y 1 J70541114A
6 J70541115A COVER_BKT 1 J70541115A
7 J70541116A COVER_Y_CABLE_DUCT_BRK 1 J70541116A
8 J70541124A CABLE_SPACER 1 J70541124A
9 J70541129A SENSOR_DOG_Y 2 J70541129A
10 J7054255A CUSHION BRACKET X 4 J7054255A
11 J7054256A CUSHION BRACKET Y 2 J7054256A
12 J7054260A CABLE FIXER 1 J7054260A
13 J71541018A CABLEVEYOR_BRACKET 1 J71541018A
14 J71541081A Y1_PLATE 1 J71541081A
15 J71541082A Y2_PLATE 1 J71541082A
16 J71541083A GUIDE_CABLE_CHAIN_X 1 J71541083A
Samsung Component Placer SM421 Service Manual
6-2
NO. PART NO. PART NAME Q’TY
TYPE REMARK
17 J7254016D INNER GUIDE-MAT 2 J7254016D
18 J7354023A CABLE CUSHION X 4 J7354023A
19 J7354024A CABLE CUSHION Y 2 J7354024A

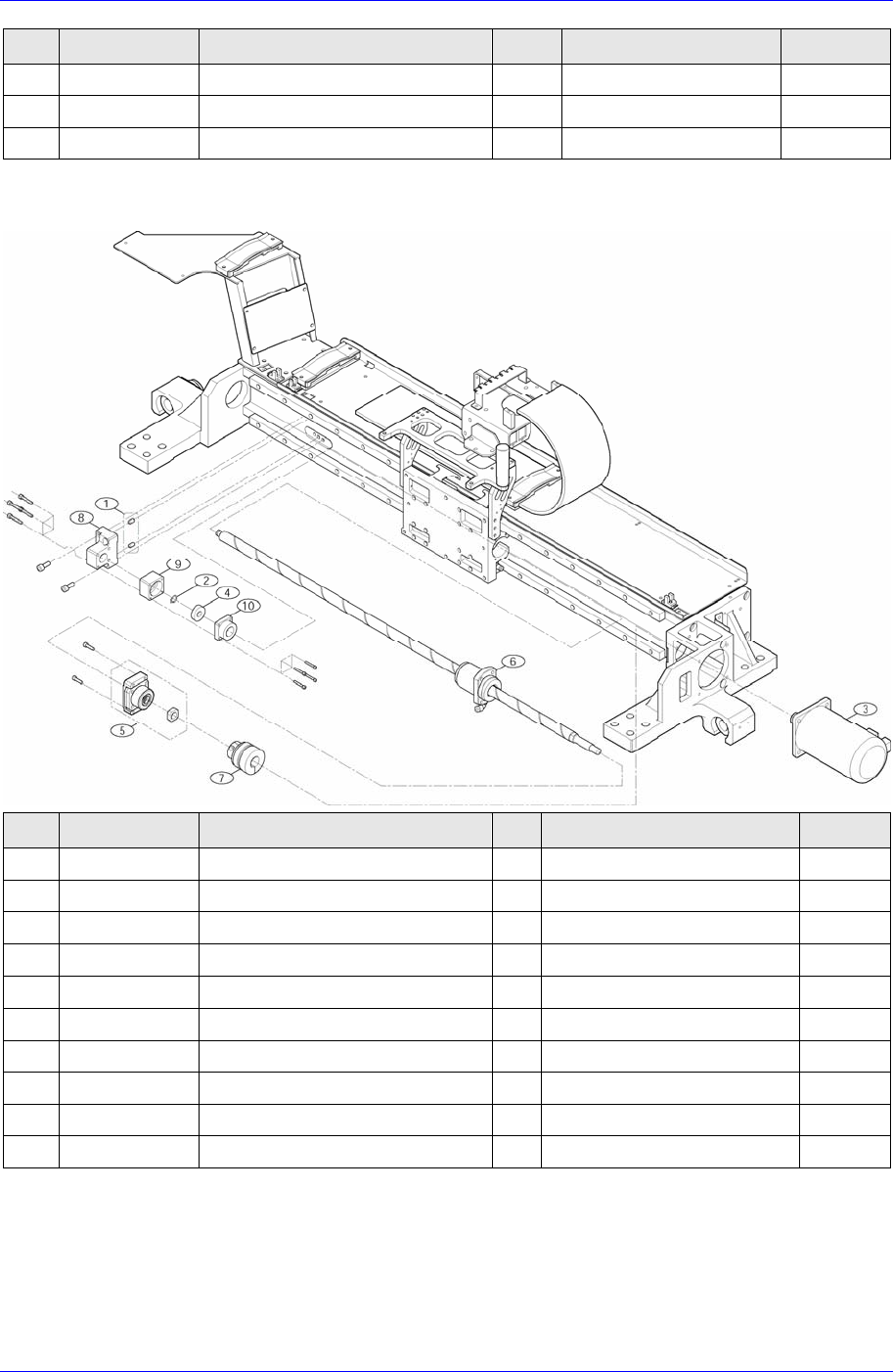

6.1.2. X-Ball Screw Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J1300502 DOWEL PIN 1 MS5-10
2 J1300517 C-RING(SHAFT) 1 DIA10
3 J3108063A SERVO MOTOR 1 MSMA082P1A01
4 J6601008A BALL BEARING 1 6000ZZ
5 J66011017A SUPPORT_UNIT 1 FK12 MP5
6 J66061014A X-BALL_SCREW 1 HG1632QS-HEZR-0874*0801-C5F
7 J66121006A COUPLING 1 SFC 040DA2 10B-19B(TYPE B)
8 J71541009A BRG_SUPPORT-X 1 J71541009A
9 J71541010A BRG_HOUSING-X 1 J71541010A
10 J72541011A CUSHION_X_REAR 1 J72541005A
X-Y Frame
6-3

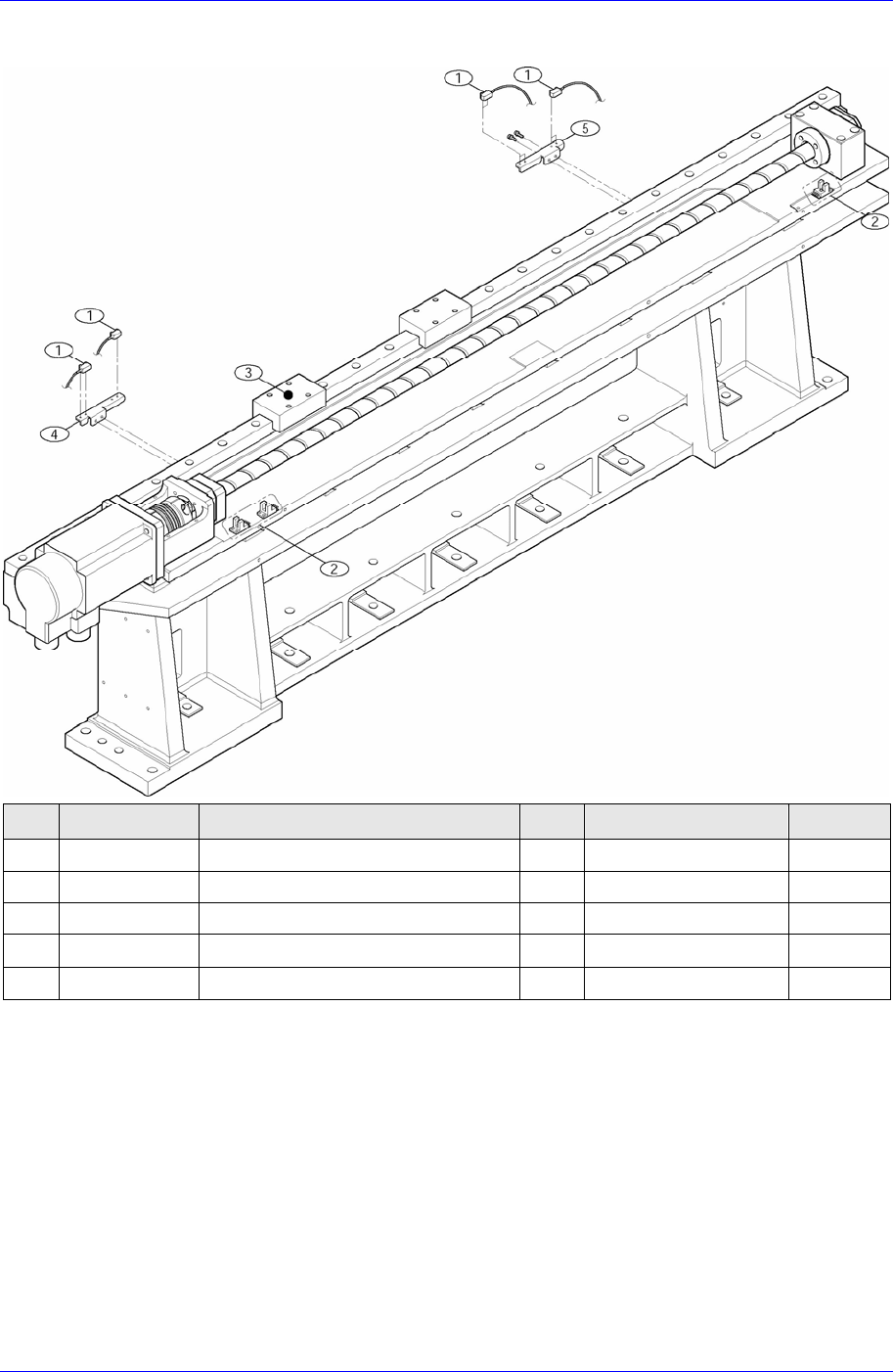

6.1.3. Y1-Frame Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J32110015B Photoelectric Switch 4 E3T-ST11 2M
2 J3212022A PHOTO SENSOR 3 EE-SX674
3 J66070077B LM_GUIDE 1 SSR25XW2UU+1480LHY-II
4 J70540266B FRONT SENSOR BKT1 1 J70540266B
5 J70540269B REAR SENSOR BKT2 1 J70540269B
