X-Y Frame 6-35 Axis Sensor Board Interface (1/2) Axis Sensor Board Interface (2/2)
Samsung Component Placer SM421 Service Manual
6-34

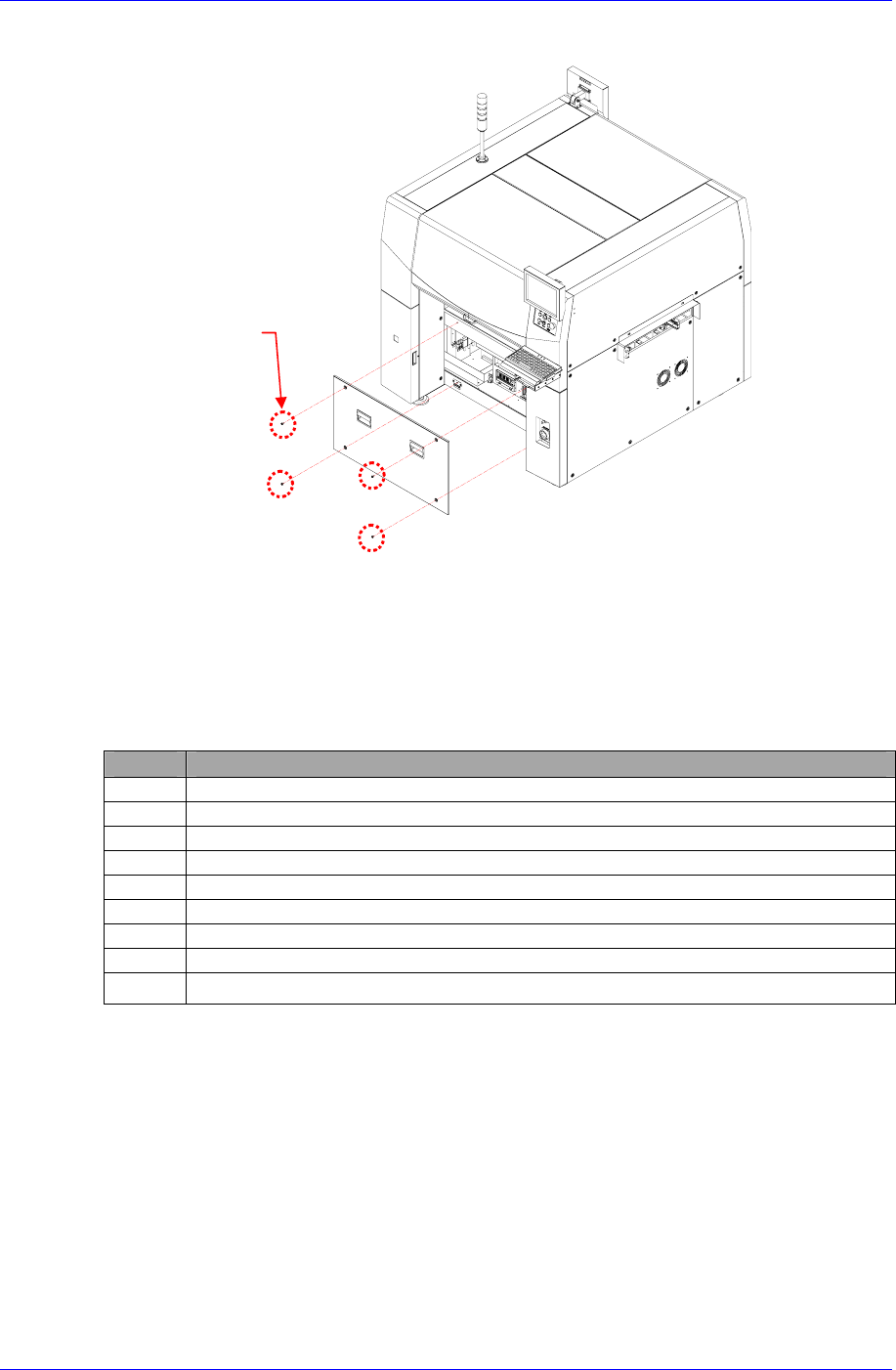

2. 利用(+)螺丝刀拧开设备前面的4个Cover固定螺丝后分离Cover。
3. 请分离连接在Axis Sensor Board的所有连接器。
4. Axis Sensor Board 分离后, 替换成新的 Axis Sensor Board。
5. 正确连接连接器后，打开设备前面的Main Switch，启动PC，检点X, Y, Z, Wcv
轴传感器的正常工作与否。
连接器功能说明及连接程序

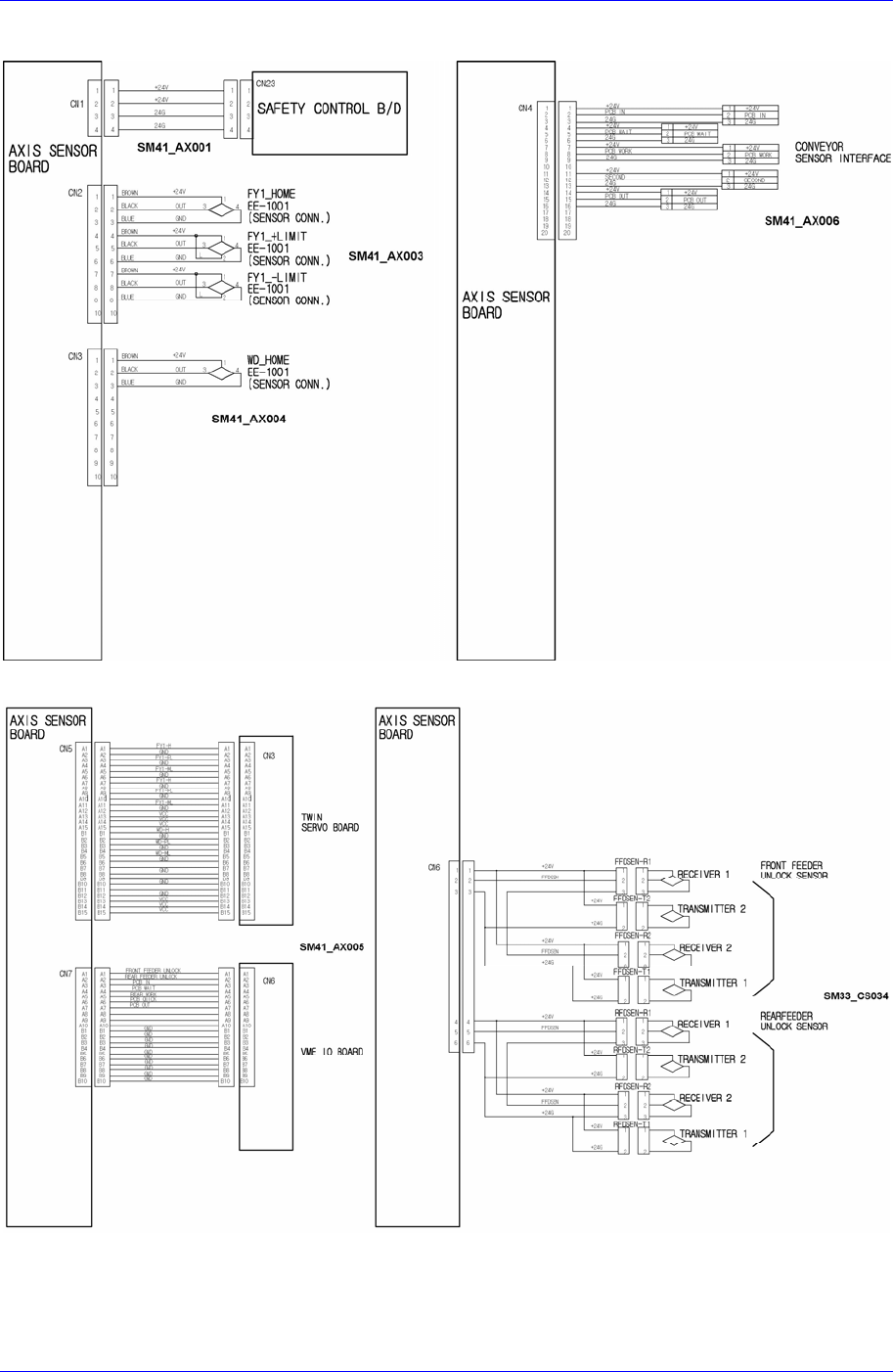

CN Connector Connection Module
CN1 BORD DC 24V POWER
CN2 Front Y-axis Limit Sensor Connection
CN3 Rear Y-axis Limit Sensor Connection
CN4 Left Conveyor Sensor Interface
CN5 Right Conveyor Sensor Interface
CN6 Front and Rear Feeder unlock Sensor Interface
CN9 Twin Servo Board unlock Interface
CN10 VME FD Board Interface
CN11 X7043 Step control Board Interface
固定螺丝
4
个
X-Y Frame
6-35
Axis Sensor Board Interface (1/2)
Axis Sensor Board Interface (2/2)
Samsung Component Placer SM421 Service Manual
6-36
Board 上的 LED 状态转换(ON/OFF)检查
Table 6-1. The definition for the state of LED on the axis sensor board.
。
Mark Definition
Sensor 感知时
LED 状态
Sensor 非感知
时 LED 状态
LED 1 Y11H Y11-HOME On Off
LED 2 Y11PL Y 11+LIMIT Off On
LED 3 Y1NL Y 11–LIMIT Off On
LED 4 Y21-H Y21-HOME On Off
LED 5 Y21-PL Y21 +LIMIT Off On
LED 6 Y21-RL Y21–LIMIT Off On
LED 7 WDH PCB IN # 1 On On
LED 8 WDP PCB IN # 2 On On
LED 9 WDM Board out # 1 On On
LED 10 Z1H Front Work # 1 On Off
LED 11 Z2H Rear Work # 1 On Off
LED 12 Z3H PCB out # 1 On Off
LED 13 Z4H PCB out #2 On Off
LED 14 Z5H Board out # 1 On Off
LED 15 Z6H Board out # 2 On Off
LED 16 SWH Rear Work # 2 On Off
LED 17 R12H Reserve # 1 On Off
LED 18 R34H Reserve # 2 On Off
6.5.2. Sensor 代表替换事例
传感器工作不良
6.5.2.1. 必要工具
T Wrench (其他提供工具) or Hex Wrench
6.5.2.2. Sensor 替换次序
1. 请按异常停止开关确保安全后进行作业。
2. 要检点正常工作与否的 Sensor 感知或非感知状态下，在 Axis Sensor Board 上
确认与此相应的 LED 的开/关与否。 (“Table 6-2. The definition for the state of
LED on the axis sensor board.” 参考)
3. Sensor 工作不良时替换。
4. 同样地执行 “6.3.3 Motor & Ball Screw
替换次序
” 的 X 轴电动机替换次序
No.8。
5. 基准点示教完毕后，为了确认是否正常贴装部件，请执行测试。
