Samsung Component Placer SM421 Service Manual 9-4 9.4. Flat Cable Connector 作业方法 在客户的生产现场因 pin 接触问题替换整个 Flat Cable 会给客户和本 公司都造成重大损失，因 此要说明保留适当的 TOO L 和材料 简单措施的方法。 9.4.1. X Axis Motor Encoder Cable (No. 1) It e m De ta i …
Flat Cable
作业指南
9-3
9.3. Y Frame Bracket 的 Flat Cable 构成
Samsung Component Placer SM421 Service Manual
9-4
9.4. Flat Cable Connector 作业方法
在客户的生产现场因 pin 接触问题替换整个 Flat Cable 会给客户和本公司都造成重大损失，因此要说明保留适当的 TOOL 和材料
简单措施的方法。
9.4.1. X Axis Motor Encoder Cable (No. 1)
Item Detail Dscription
Position Connection I/F CABLE
Maker HIROSE
Pin DF1B-2428SCF
Connect
or
DF1B-6ES-2.5RC
DF1B-3ES-2.5RC
Supplier HIROSE Korea
Price
Working
Tool
-DF1B-TA2428SHC
Tool
Purchase
Supplier. HIROSE Korea
Price:
Others
The tool exclusively
used for the cable
connection must be used.
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Flat Cable
作业指南
9-5

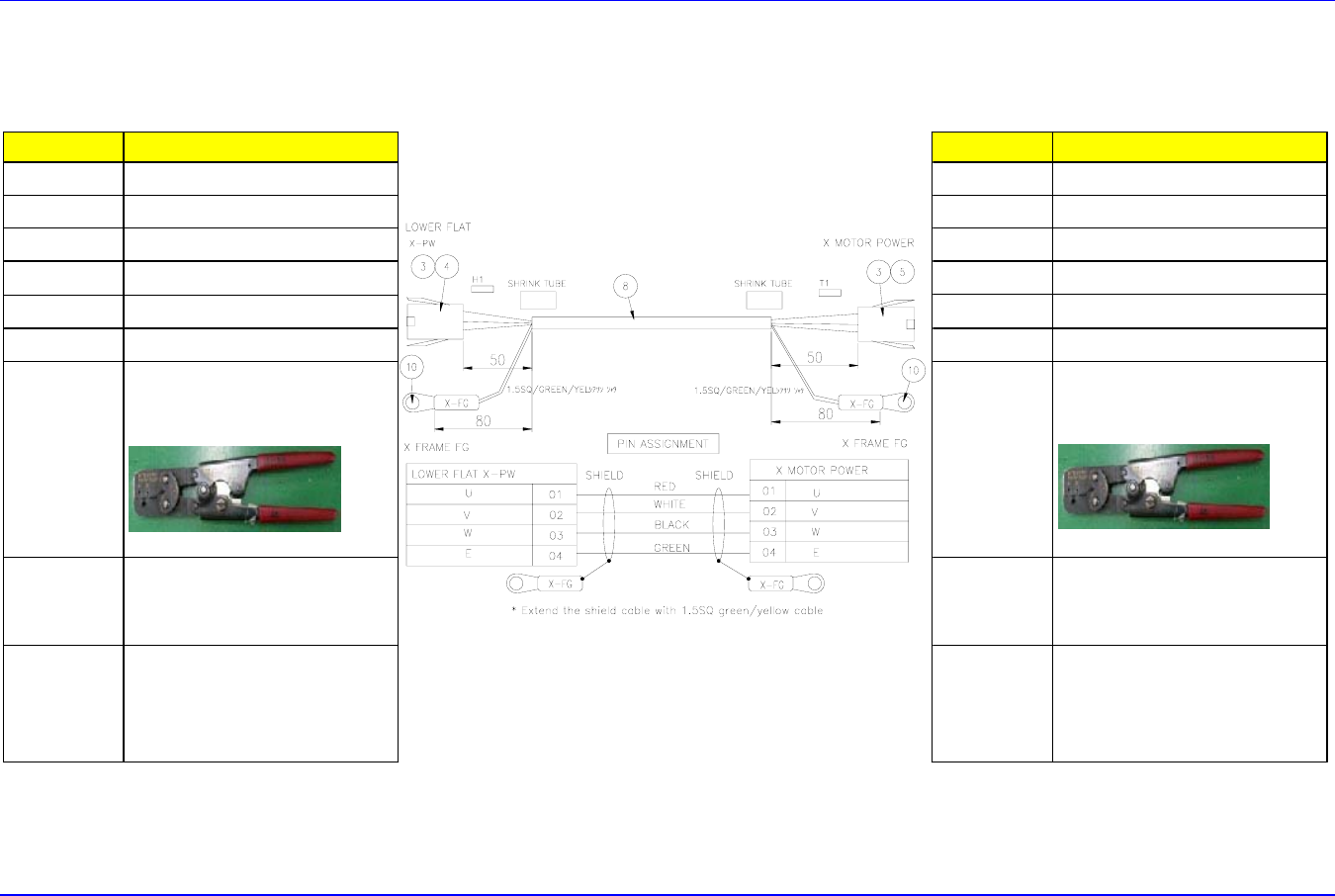

9.4.2. X Axis Motor Power Cable (No. 2)
Item Detail Dscription
Position YFRAMEBRACKET
Maker AMP
Connector 172159-1
Pin 170362-1
Supplier TYCO Korea agency
Price
Working
Tool
-HTR 2445A
11-01-0026
Tool
Purchase
Supplier.TYCO Korea agency
Price:
Others
The tool exclusively used
for the cable connection
must be used.
Item Detail Dscription
Position XMOTOR
Maker AMP
Connector 172159-1
Pin 170362-1
Supplier TYCO Korea agency
Price
Working
Tool
-HTR 2445A
11-01-0026
Tool
Purchase
Supplier.TYCO Korea agency
Price:
Others
The tool exclusively used
for the cable connection
must be used.
