Samsung Component Placer SM421 Service Manual
9-6

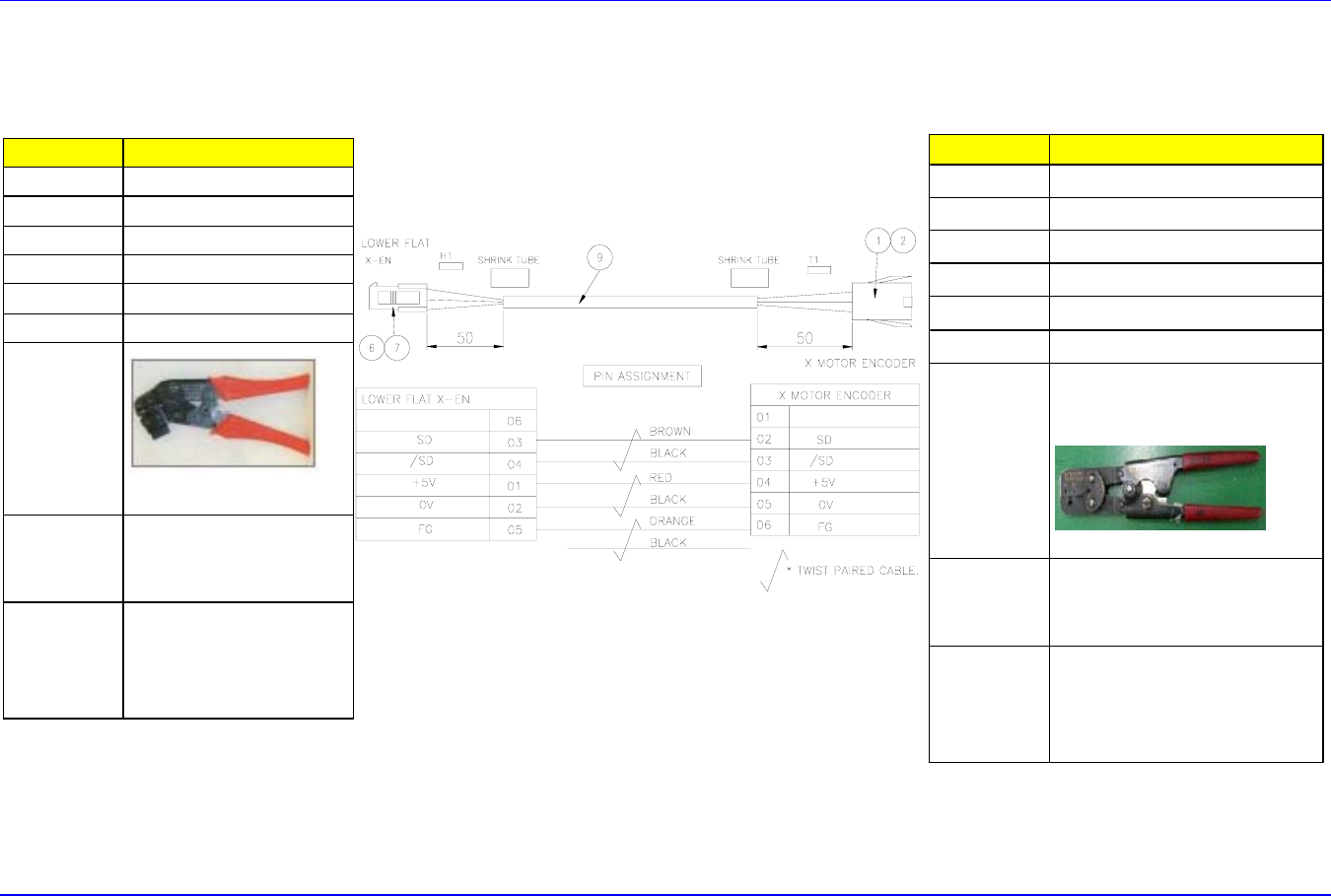

9.4.3. X Axis Sensor Cable (No. 3)
Item Detail Dscription
Position XMOTOR
Maker AMP
Connector 172160-1
Pin 170361-1
Supplier TYCO Korea agency
Price
Working
Tool
-HTR 2445A
11-01-0026
Tool
Purchase
Supplier.TYCO Korea agency
Price:
Others
The tool exclusively used
for the cable connection
must be used.
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Flat Cable
作业指南
9-7

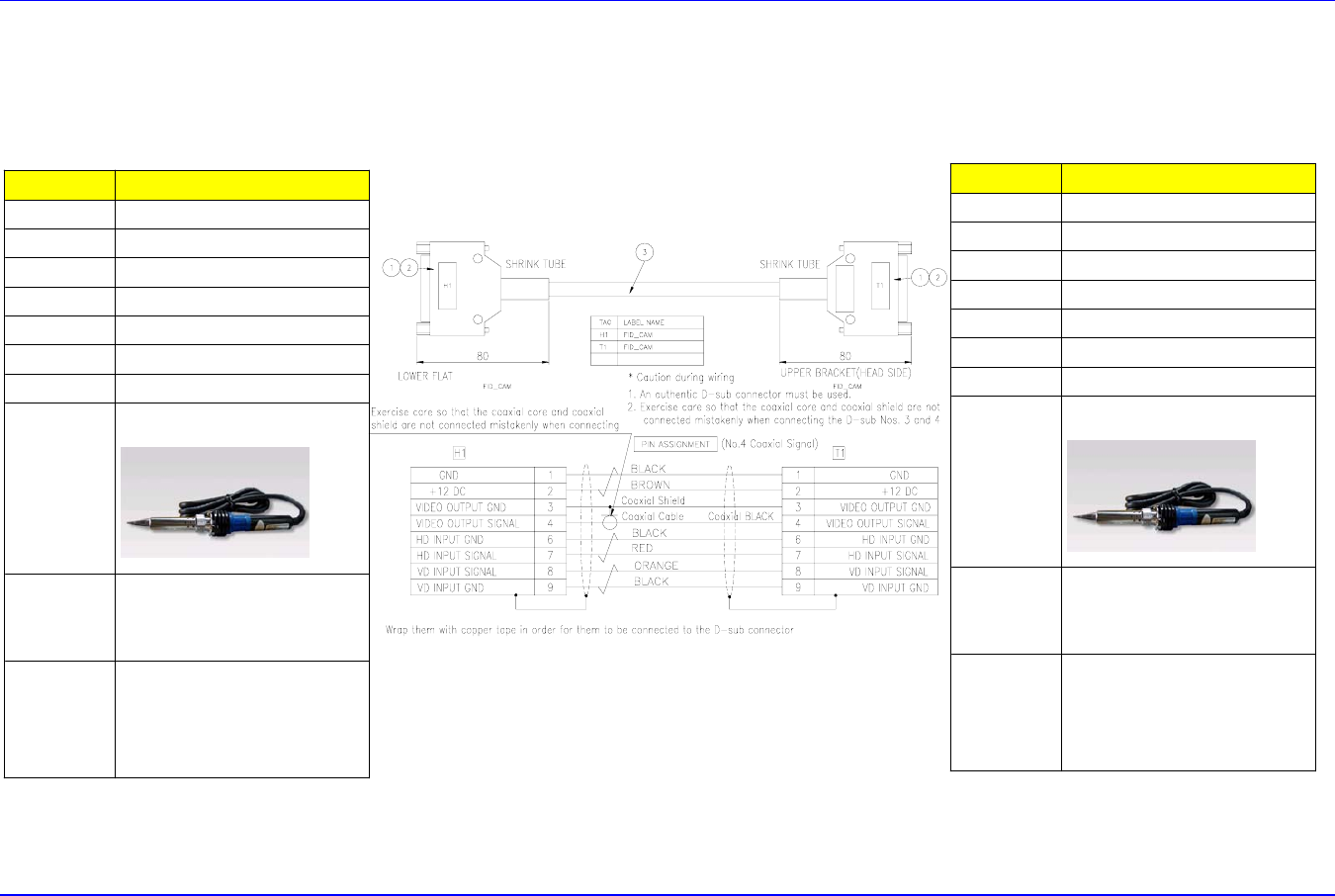

9.4.4. Fiducial Camera Data Cable (No. 4)
Item Detail Dscription
Position YFRAMEBRACKET
Maker DDK
Connector DSUB-CON
Pin 17JE-13090-02
HOOD 9PIN(FEMALE)
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector DSUB-CON
Pin 17JE-13090-02
HOOD 9PIN(FEMALE)
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
Samsung Component Placer SM421 Service Manual
9-8
9.4.5. Fly Camera #1,2,3 Cable (No. 5) / Fly Camera #4,5,6 Cable (No. 6)
问题发生时,利用 Spare pin ,再作业时要同时准备连接器和 pin。 (连接器 1 个, pin8 个)
Item Detail Description
Position Y Frame Bracket, Head Bracket
Maker
FCI(BURNDY)
Connector FCI SMS9R1
Pin RCDX60-2D28(Male)
Additional Material
Cushion tube
Supplier
Myungbo (Tel.: 061-319-2772, President Kim Jong-bok)
Price
Working Tool
-
-General stripper
-
Pipe pressing tool
-AFM8 CRIMPING(M22520/2-01)
Socket
K42 : (MS24308/13-1)
Tool Purchase
General stripper: General tool supplier Pipe
pressing tool: Myungbo
Crimping and socket: Myungbo
Others
When a problem occurs to the cable, replace it using
spare cable (two spare cables available).
For detailed cable connection method, refer to the
Burndy terminal preparation procedure in the next page.
LOWER BRACKET
UPPER BRACKE (FID_CAM)
Coaxial shield
Coaxial shield
Coaxial shield
Coaxial shield
Coaxial shield
Coaxial core
Coaxial shield
Coaxial core
Coaxial shield
Coaxial core
Coaxial shield
Coaxial core
Coaxial core
Coaxial core
Coaxial core
Coaxial core
LOWER BRACKE (FID_CAM)
UPPER BRACKET (HEAD SIDE)
#5 CABLE
6th CABLE
