Samsung Component Placer SM421 Service Manual 9-12 9.4.9. Z3, Z4 Encoder Cable (No. 10) / Z3, Z4 Power Cable (No. 1 1) It e m Det a i l Dsc ript ion Po siti on YF R A M E B R A C K E T Maker MOLEX Pin 43030-0001 43030-00…
Flat Cable
作业指南
9-11

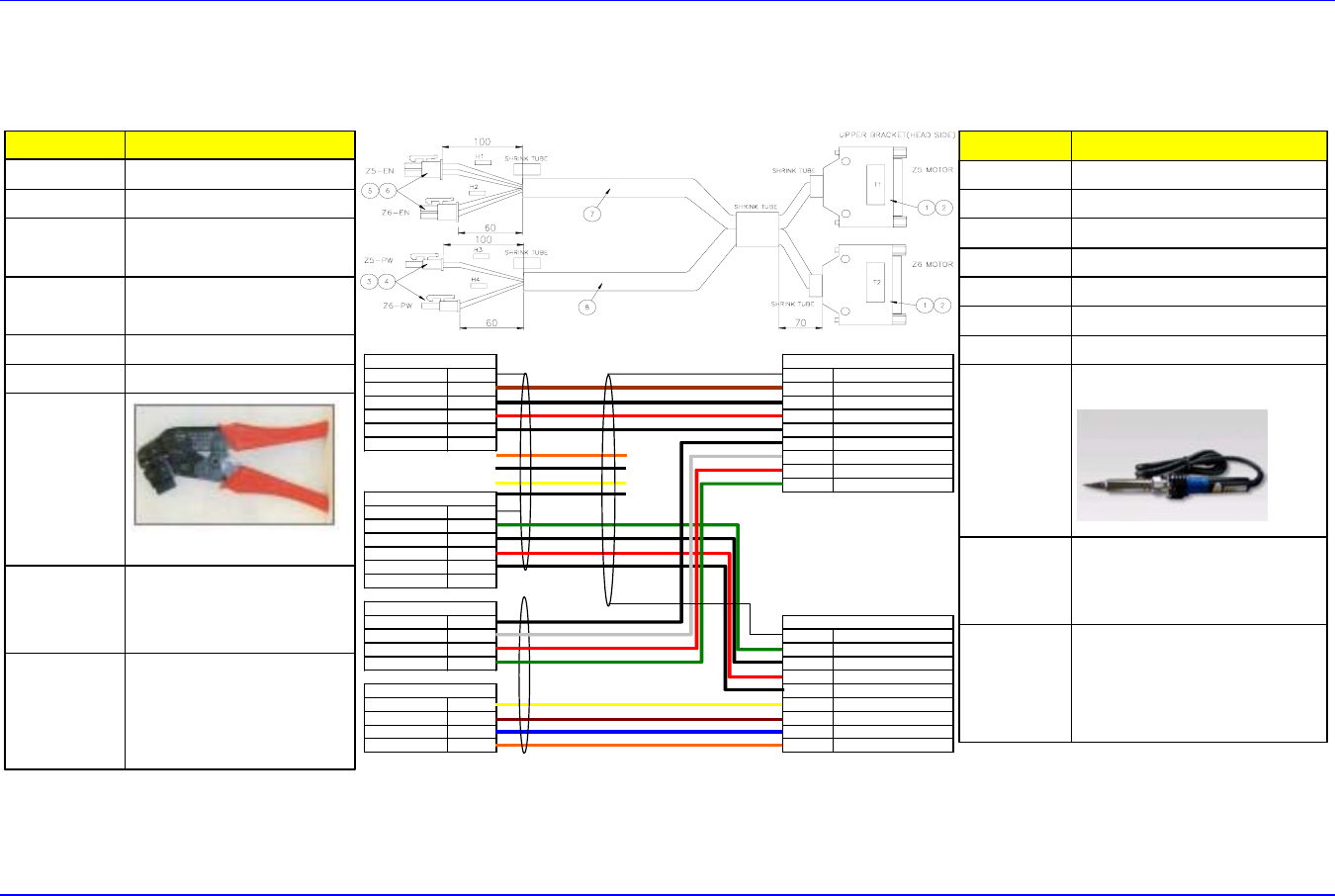

9.4.8. Z1, Z2 Encoder Cable (No. 8) / Z1, Z2 Power Cable (No. 9)
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector 17JE-13090-02
Pin 9PIN(FEMALE)
HOOD 17JE-09H-1C
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin
43030-0001
43030-0004
Connector
43645-0400
43020-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
FG 06 03 ENC-SHIELD
SD 02 01 SD
/SD 03 06 /SD
+5V 04 02 +5V
0V 05 07 0V
01 04 U
05 V
09 W
08 E
FG 06
SD 02
/SD 03
+5V 04
0V 05
0V 06
U01
V02 03ENC-SHIELD
W03 01 SD
E04 06 /SD
02 +5V
07 0V
U01 04 U
V02 05 V
W03 09 W
E04 08 E
LOWER BRACKET Z2-PW
DSUB-15PIN(Z1 MOTOR)
DSUB-15PIN(Z2 MOTOR)
LOWER BRACKET Z1-PW
LOWER BRACKET Z1-EN
LOWER BRACKET Z2-EN
Shield
Shield
Shield
Shield
White
Samsung Component Placer SM421 Service Manual
9-12
9.4.9. Z3, Z4 Encoder Cable (No. 10) / Z3, Z4 Power Cable (No. 11)
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin
43030-0001
43030-0004
Connector
43645-0400
43020-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector 17JE-13090-02
Pin 9PIN(FEMALE)
HOOD 17JE-09H-1C
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
FG 06 03 ENC-SH
SD 02 01 SD
/SD 03 06 /SD
+5V 04 02 +5V
0V 05 07 0V
01 04 U
05 V
09 W
08 E
FG 06
SD 02
/SD 03
+5V 04
0V 05
01
U01
V02 03ENC-SH
W03 01 SD
E04 06 /SD
02 +5V
07 0V
U01 04 U
V02 05 V
W03 09 W
E04 08 E
LOWER BRACKET Z4-PW
DSUB-15PIN(Z3 MOTOR)
DSUB-15PIN(Z4 MOTOR)
LOWER BRACKET Z3-PW
LOWER BRACKET Z3-EN
LOWER BRACKET Z4-EN
Shield
Shield
Shield
Shield
White
Flat Cable
作业指南
9-13
9.4.10. Z5, Z6 Encoder Cable (No. 12) / Z5, Z6 Power Cable (No. 13)
Item Detail Dscription
Position Y FRAME BRACKET
Maker MOLEX
Pin
43030-0001
43030-0004
Connector
43645-0400
43020-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector 17JE-13090-02
Pin 9PIN(FEMALE)
HOOD 17JE-09H-1C
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
FG 06 03 ENC-SH
SD 02 01 SD
/SD 03 06 /SD
+5V 04 02 +5V
0V 05 07 0V
01 04 U
05 V
09 W
08 E
FG 06
SD 02
/SD 03
+5V 04
0V 05
01
U01
V02 03ENC-SH
W03 01 SD
E04 06 /SD
02 +5V
07 0V
U01 04 U
V02 05 V
W03 09 W
E04 08 E
LOWER BRACKET Z6-PW
DSUB-15PIN(Z5 MOTOR)
DSUB-15PIN(Z6 MOTOR)
LOWER BRACKET Z5-PW
LOW ER BRACKET Z5-EN
LOW ER BRACKET Z6-EN
Shield
Shield
Shield
Shield
White
