Samsung Component Placer SM421 Service Manual 9-14 9.4.11. Mirror Swing Motor Encoder Cable (No. 14) / Mirror Swing Motor Power Cable (No. 15) It e m Deta il Dsc r ipt ion Posi ti on YF R A M E B R A C K E T Ma ker MOLEX…
Flat Cable
作业指南
9-13
9.4.10. Z5, Z6 Encoder Cable (No. 12) / Z5, Z6 Power Cable (No. 13)
Item Detail Dscription
Position Y FRAME BRACKET
Maker MOLEX
Pin
43030-0001
43030-0004
Connector
43645-0400
43020-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector 17JE-13090-02
Pin 9PIN(FEMALE)
HOOD 17JE-09H-1C
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
FG 06 03 ENC-SH
SD 02 01 SD
/SD 03 06 /SD
+5V 04 02 +5V
0V 05 07 0V
01 04 U
05 V
09 W
08 E
FG 06
SD 02
/SD 03
+5V 04
0V 05
01
U01
V02 03ENC-SH
W03 01 SD
E04 06 /SD
02 +5V
07 0V
U01 04 U
V02 05 V
W03 09 W
E04 08 E
LOWER BRACKET Z6-PW
DSUB-15PIN(Z5 MOTOR)
DSUB-15PIN(Z6 MOTOR)
LOWER BRACKET Z5-PW
LOW ER BRACKET Z5-EN
LOW ER BRACKET Z6-EN
Shield
Shield
Shield
Shield
White
Samsung Component Placer SM421 Service Manual
9-14

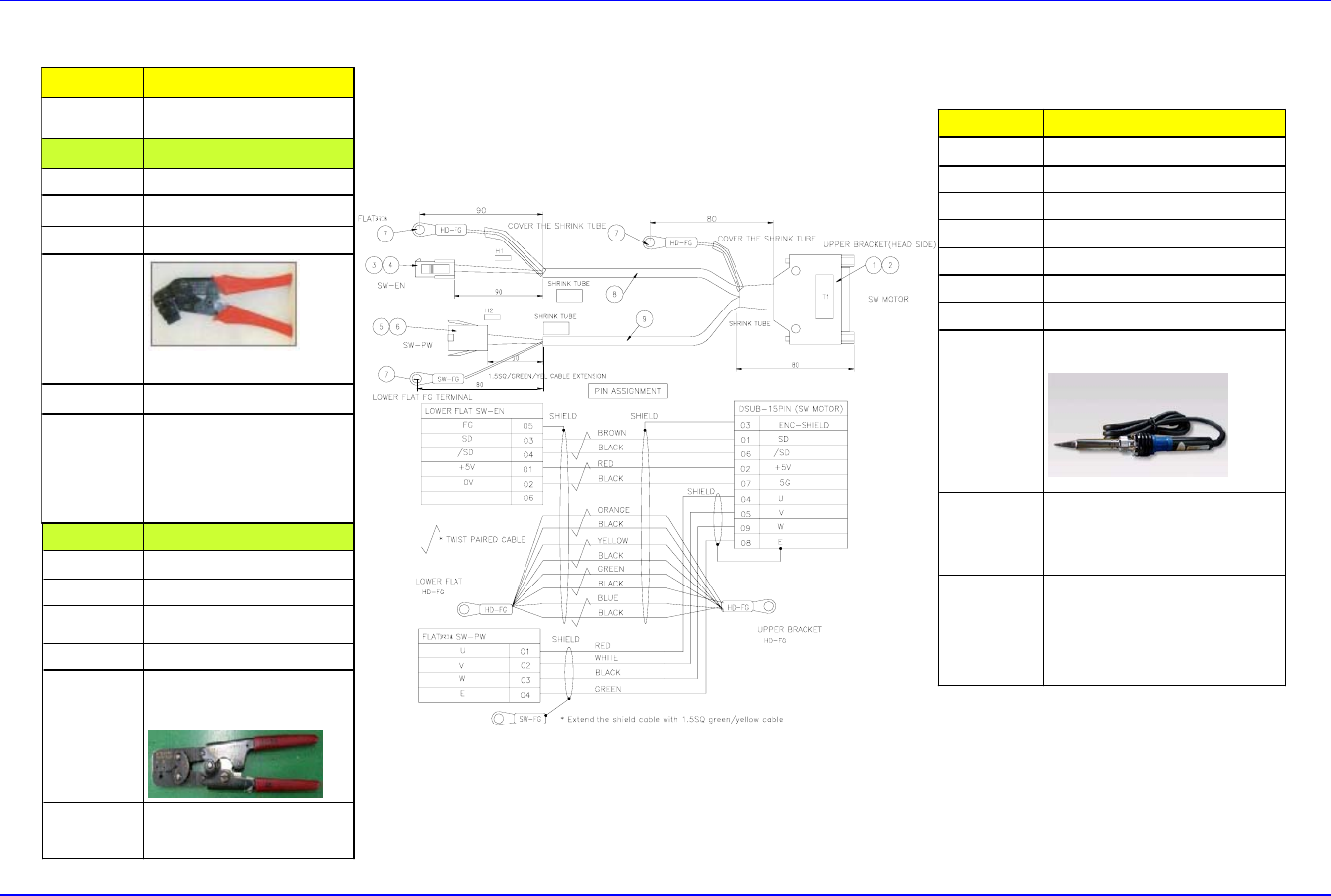

9.4.11. Mirror Swing Motor Encoder Cable (No. 14) / Mirror Swing Motor Power Cable (No. 15)
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin 43031-0004
Connector 43020-0600
Supplier MOLEX Korea
Working
Tool
63811-2800
Purchase Supplier. MOLEX
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector 17JE-13090-02
Pin 9PIN(FEMALE)
HOOD 17JE-09H-1C
Purchase DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented by
using the flexible tube.
Maker AMP
Connector 172159-1
Pin 170359-1
Supplier TYCO
Price
Working
Tool
-HTR 2445A
11-01-0026
Tool
Purchase
Supplier. TYCO
Price:
Flat Cable
作业指南
9-15

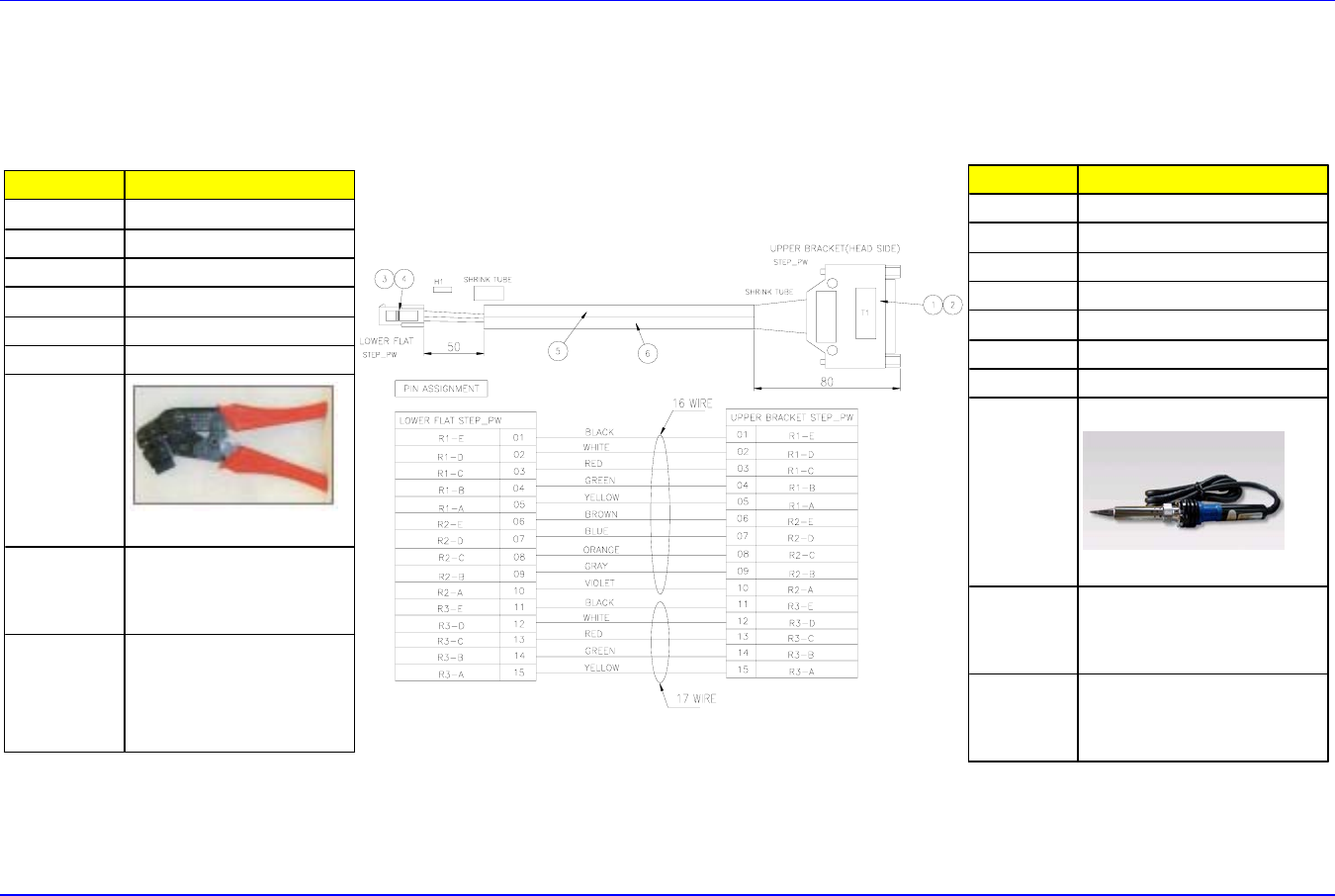

9.4.12. R Axis Step Motor Power Cable (No. 16) / R Axis Step Motor Power Cable (No. 17)
Item Detail Dscription
Position YFRAMEBRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-1600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker DDK
Connector DSUB-CON
CONN 3LOW 15PIN D-SUB
HOOD 17JE-09H-1C
Supplier DDK Korea
Price
Working
Tool
-General soldering iron
Tool
Purchase
Supplier: General tool
Price: 20,000~30,000won
Others
The interference between
pins must be prevented
by using the flexible tube.
