Flat Cable 作业指南 9-17 9.4.14. Head IO Board CAN Si gnal Cable (No. 19) It e m Detail Dsc ri pt ion Posi ti on HEA D BRA CKET Maker MOL EX Pin 43030- 0004 Co n n e ct or 43025- 0600 Su p p li e r MO LEX Korea Pri c e Wo r …
Samsung Component Placer SM421 Service Manual
9-16
9.4.13. Head Sensor + 24V Power Cable (No. 18)
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-1400
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-1400
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
43025
-
1600
Flat Cable
作业指南
9-17

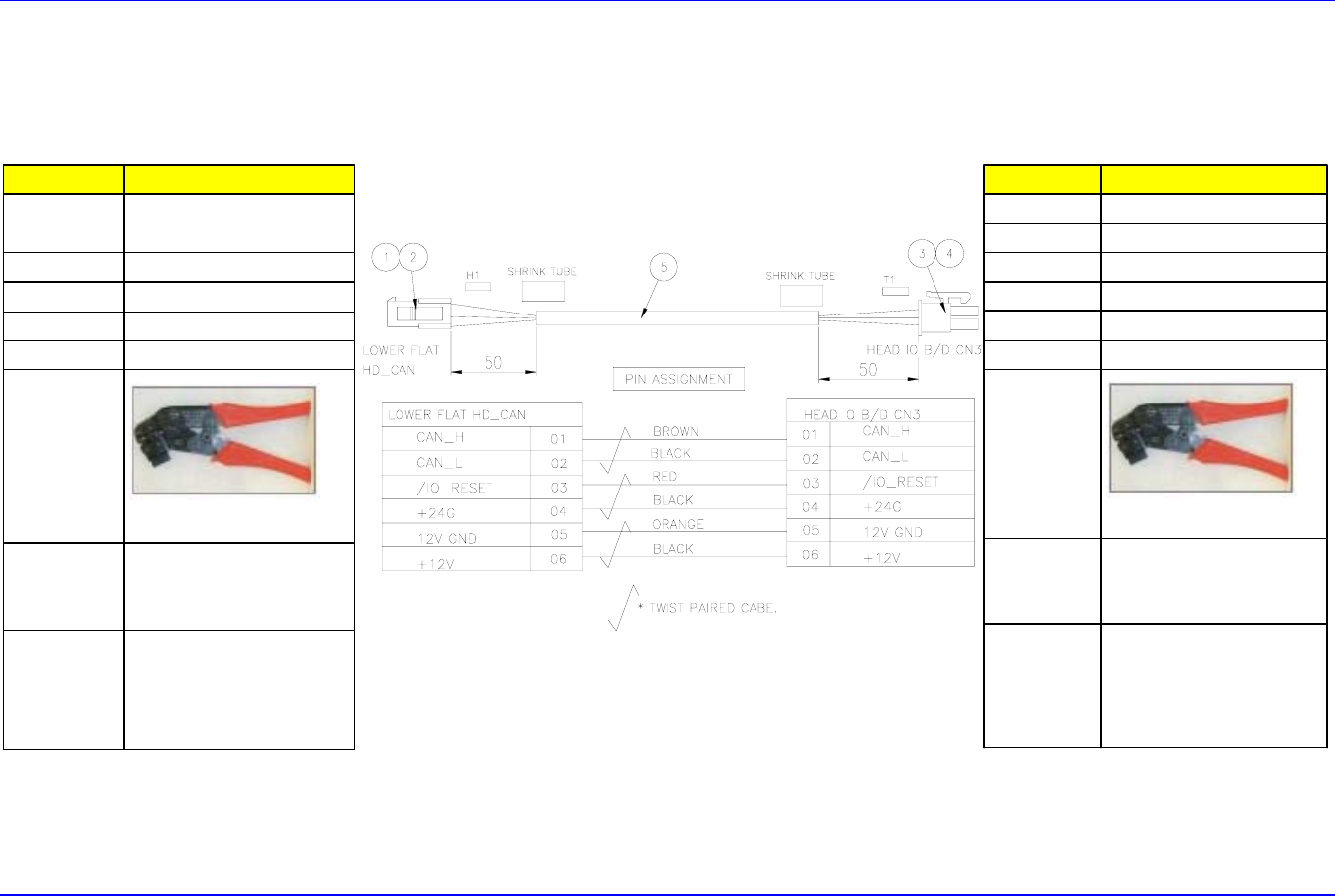

9.4.14. Head IO Board CAN Signal Cable (No. 19)
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-0600
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Samsung Component Placer SM421 Service Manual
9-18
9.4.15. Head Vacuum/Blow Sol. Cable (No. 20)
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-1200
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
Item Detail Dscription
Position HEAD BRACKET
Maker MOLEX
Pin 43030-0004
Connector 43025-1200
Supplier MOLEX Korea
Price
Working
Tool
63811-2800
Tool
Purchase
Supplier. MOLEX Korea
Price:
Others
The tool exclusively
used for the cable
connection must be
used.
