Wiring di agram D00ABE-00- 602-01 Pa ge 3 2. Search (conne ctor No., etc.) ① . Type a con nector nu mber, etc . to searc h (Use the ' Search' f unction of the PDF app licat ion) ② . Retrieved dat a is show n. C…
Wiring diagram
Page 2 D00ABE-00-602-01

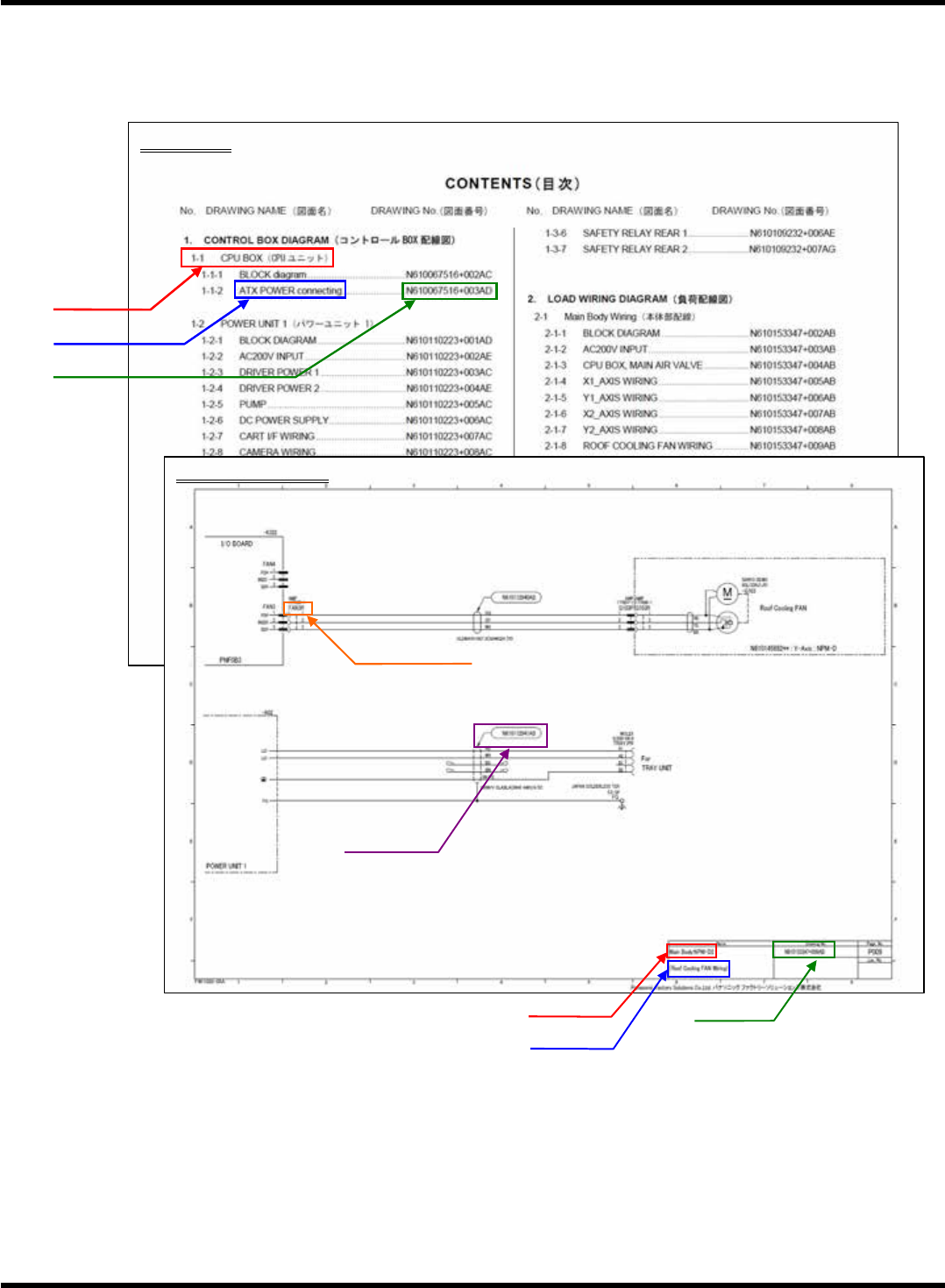

How to read the control wiring diagram
1. How to read the contents and the wiring diagram
＜
Explanation of representation
＞
Kit
: The name of a kit (unit) used in the product
Drawing name
: Title name assigned to a drawing
Drawing number
: Number assigned to a drawing
Connector number
: Number assigned to a connector
Cable ordering part number : Part number assigned to a cable, which is used to place order.
Wiring diagram
Kit name
Contents
Drawing name
Drawing numbe
r
Kit name
Drawing name
Drawing numbe
r
Cable ordering
part number
Connector numbe
r
Wiring diagram
D00ABE-00-602-01 Page 3
2. Search (connector No., etc.)
①
. Type a connector number, etc. to search
(Use the 'Search' function of the PDF application)
②
. Retrieved data is shown.
Click
Retrieved connector number
Example of search
Wiring diagram
Page 4 D00ABE-00-602-01
Other
・
In addition to the control wiring diagram,
“Jumper setting list
,
” “IO map” and “Air dia-
gram”
are included.
[Reference]
“Jumper setting list” ---
Confirms PCB jumper settings
“IO map” ---
Confirms the input / output of loads
“Air diagram” ---
Confirms air circuits
