Installation Manual, Station Software Version 602.01 Edition 06/2006 15 of 60 3.3.1 Station computer Name SIMATIC Box PC 627 CPU / clock frequency Pentium M / 2 GHz RAM 1 GB Hard disk 40 GB CD ROM drive Yes Serial interf…
Installation Manual, Station Software Version 602.01 Edition 06/2006
3.3 SIPLACE D4 hardware components

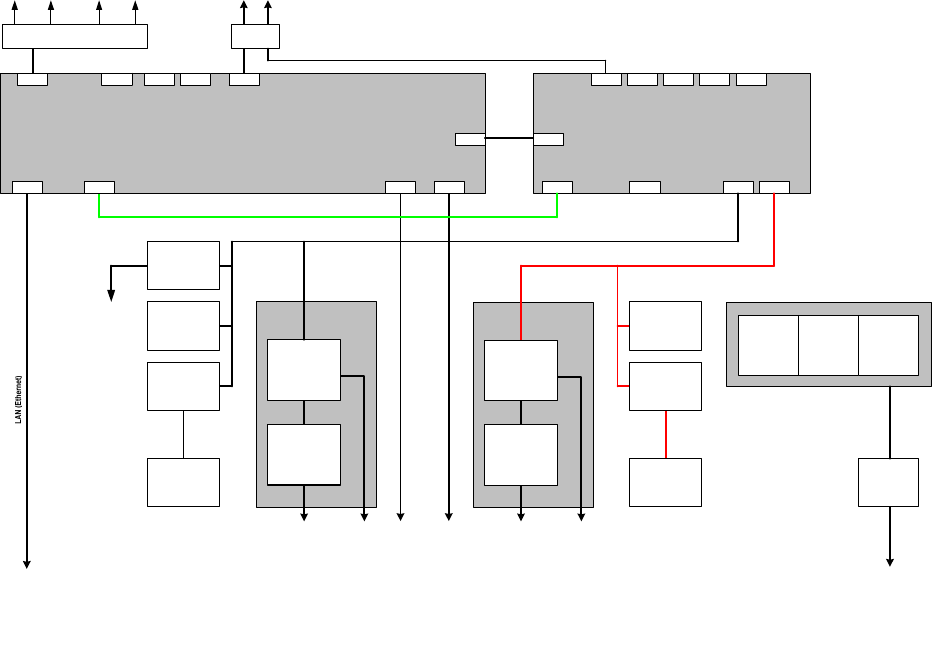

The following diagram shows the hardware components of the computer system for the machine type D4
of the D series:
Structure of the computer unit with its interfaces
Machine type SIPLACE D4
LAN connection
Main switch
Line filter
Power connection
Power connection
Voltages
Protection
circuits
Fuses
Measuring systems
Power supply
Station computer
BoxPC 627V1
Pentium M760 2.0 GHz, 1 GByte RAM, 40 GB HD, CD
2 x 100 MBit LAN, graphics adapter, 4 x USB, 1 x serial, 2 PCI slots
PCI 1: 1st hotlink
PCI 2: 2nd hotlink
LAN
VGA
Cameras
( 4 x component camera,
4 x PCB camera )
Measuring systems
Servo amplifiers
4 x X/Y
8 x head
Axis unit 2
USB1
VideoMux
Motors
Axes
( 3 x A364 )
12 axes
Servo amplifiers
4 x X/Y
8 x head
USB2 USB3 USB4
Hotlink Hotlink
Machine controller
MicroBox 420V2
Pentium III, 933 MHz, 256 MByte RAM, 40 GB HD
2 x 100 MBit LAN, graphics adapter,
4 x USB, 1x serial, 3 x PC104
1st PC104: CAN bus ( 2x )
CAN 1
VGA
LAN 1
USB1
14 of 60
CAN 2
USB2
COM1
USB3 USB4
LAN 2
Motors
Processing area 1 Processing area 2
Monitor
1 2
Keyboard / Touchscreen
1 2
1 MBit/s
500 kBit/s
1 MBit/s
500 kBit/s
Axis unit 1
100 MBit/s
LAN
USB hub
COM1
Conveyor controller
PCB barcode
Gantries
Heads
1 / 2
Gantries
Heads
2 / 4
Axes
( 3 x A364 )
12 axes
I/O module 1 I/O module 2
Component tables 1
/ 4
Tape cutters 1 / 4
Component tables 2
/ 3
Tape cutters 2 / 3
Fig. 3-2: Hardware components of the computer system for the SIPLACE D4
Installation Manual, Station Software Version 602.01 Edition 06/2006
15 of 60
3.3.1 Station computer
Name SIMATIC Box PC 627
CPU / clock frequency Pentium M / 2 GHz
RAM 1 GB
Hard disk 40 GB
CD ROM drive Yes
Serial interfaces 1
Network 2x 100 MBit
Table 3-4: Station computer hardware (SIPLACE D4)
3.3.2 Machine controller
Name
SIMATIC Microbox 420
CPU / clock frequency
Pentium III / 933 MHz
RAM
256 MB
Hard disk
40 GB
Serial interfaces 1
Network
2x 100 MBit
Table 3-5: Machine controller hardware (SIPLACE D4)
Installation Manual, Station Software Version 602.01 Edition 06/2006

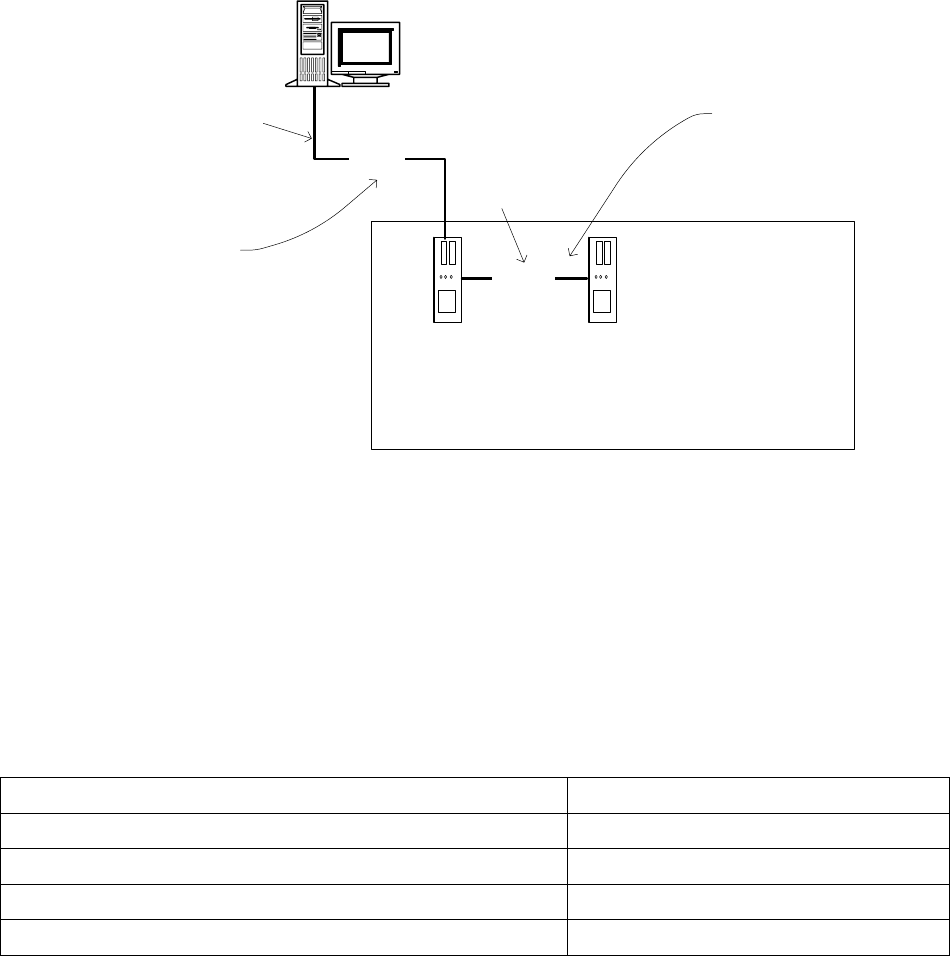

3.4 Network configuration
Station computer
Machine controller
10Base-T
100Base-T
Private network between
station computer and
machine controller
SIPLACE LAN
SIPLACE Pro
Twisted Pair TP
(100 MB)
Twisted Pair TP
(10 MB)
Fig. 3-3: Network connections between the machine and SIPLACE Pro
A separate private network (100 Mbit) is set up between the station computer and the machine controller
via a subnet mask.
Fixed IP addresses for the station computer and the machine controller can thus be assigned for all
SIPLACE machines. These IP addresses are not known outside the private network, for instance in the
SIPLACE LAN.
These IP addresses need not be further configured by the operator while the station software is being
installed.
IP address, station computer 192.168.255.249
IP address, machine controller 192.168.255.250
Subnet mask, station computer/machine controller 255.255.255.248
IP address range, SIPLACE LAN 172.22.xxx.xxx
Subnet mask, SIPLACE LAN 255.255.0.0
Table 3-6: Network configuration
