Installation Manual, Station Software Version 602.01 Edition 06/2006

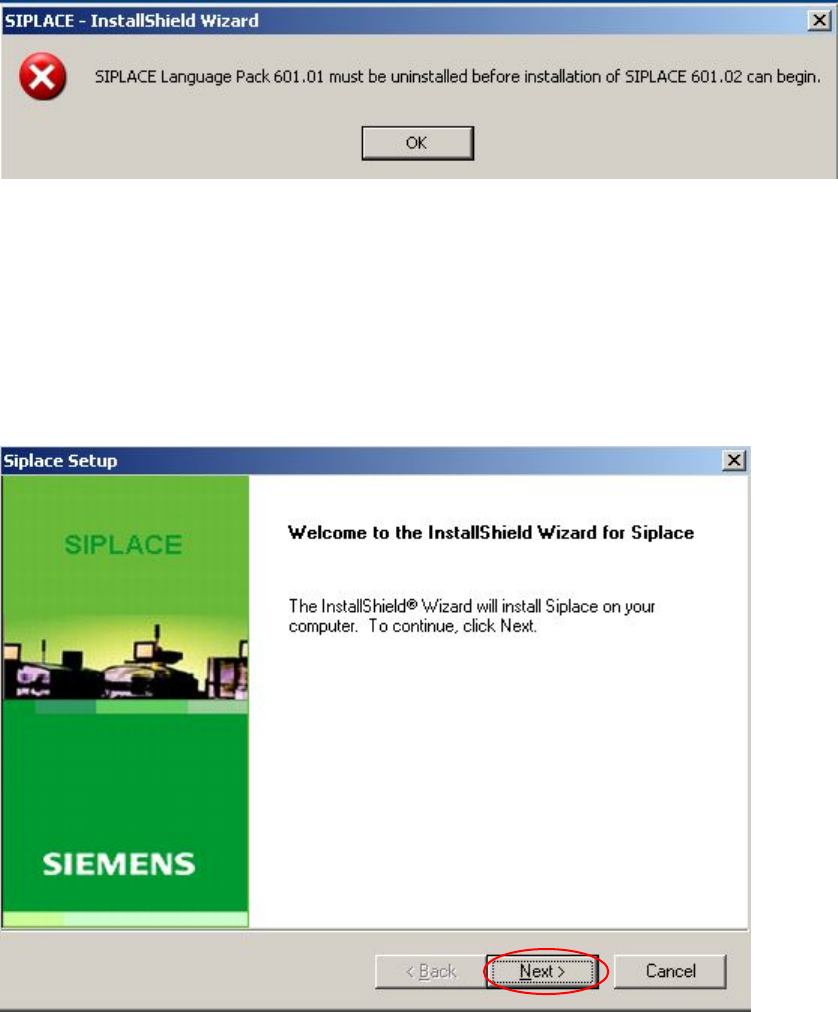

If uninstallation of the Language Pack is cancelled, the following error message appears:
→ Click the OK button. Installation of the station software is cancelled and must be restarted.
Installation of the station software continues with the welcome screen.
Welcome screen
Fig. 4-17 Welcome screen
→ Click the Next button.
35 of 60
Installation Manual, Station Software Version 602.01 Edition 06/2006

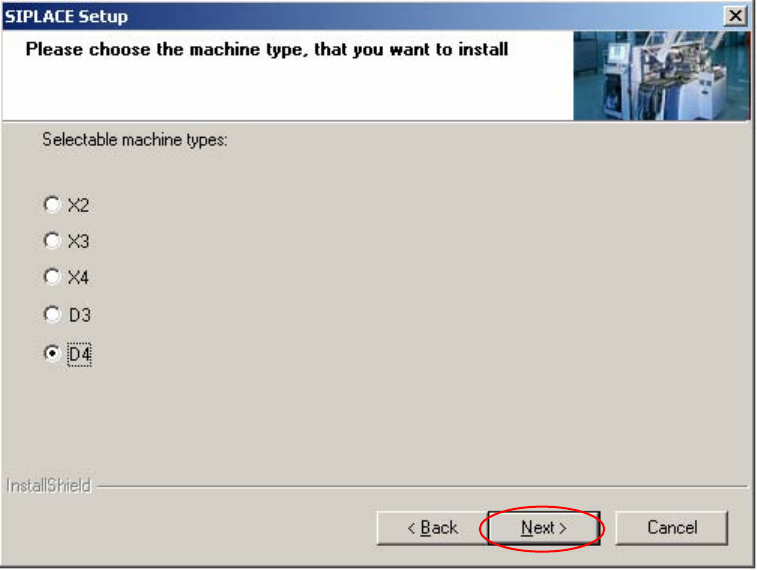

Selecting the machine type
Fig. 4-18 Selecting the machine type
→ Select the option for the machine type for which the software is to be configured.
→ Click the Next button.
36 of 60
Installation Manual, Station Software Version 602.01 Edition 06/2006

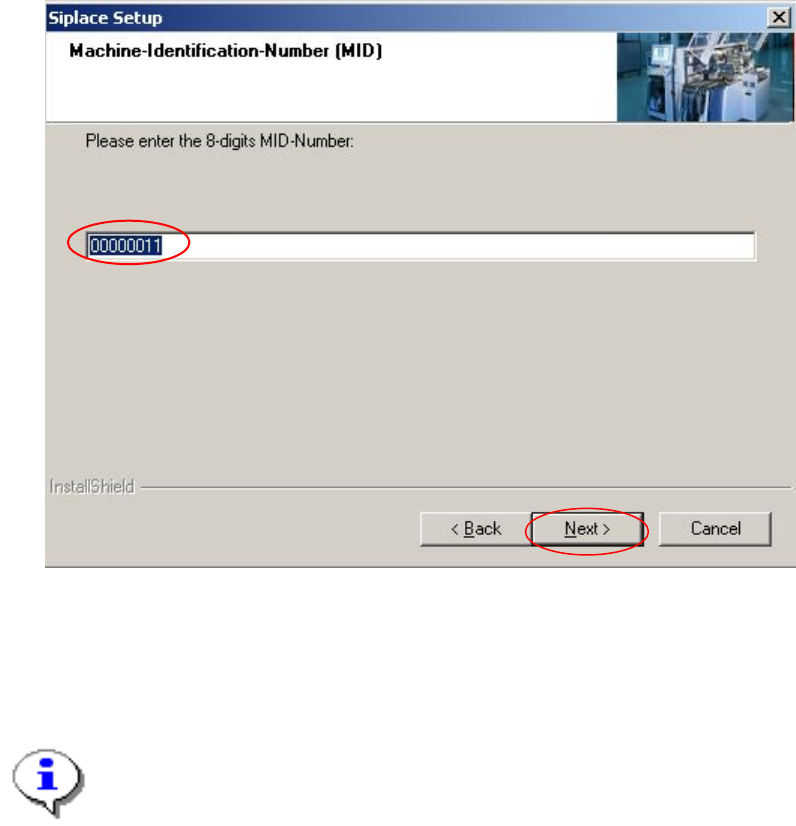

Entering the Machine Identification Number (MID)
Fig. 4-19: Entering the Machine Identification Number (MID)
→ In the text box, enter the 8-digit machine identification number.
Note:
You will find the MID on an adhesive label on the side of the protective covers directly
below the label for the number of the relevant location. The number following the dash
after the MID specifies the location and is not entered here (e.g. 00000001-2 stands for
location 2).
→ Click the Next button.
37 of 60
