REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1524-716-000 DOOR CUSHION 2
2 400-51573 BALL CATCH 1
3 E1038-871-000 PLATEN LOCK CAM SCREW 1
4 400-51583 DOOR LOCK BASE 1
5 SM-6032002-TN SCREW M3X0.5 L=20 1
6 NM-6030001-SC NUT M3 1
7 E1055-717-000 DOOR LOCK SP 1
8 PJ-3080600-03 Y UNION 3
9 SL-4035091-SC SCREW M3 L=50 2
10 SL-4030891-SC SCREW M3X8 2
11 SL-4030881-SC SCREW M3 L=8 4
12 SM-6032502-TN SCREW M3 L=25 2
13 SM-0040801-SC SCREW 2
14 400-48853 E COVER 6D 1
15
#01
HK-0498900-00 CONECTOR PARTS 1
16 E4559-717-000 DOOR LOCKLEVER 2
17
#01
HB-0014300-00 SAFETY RELAY UNIT 1
18
#01
HB-0013900-00 RELAY 5
19
#01
E9641-040-000 RELAY MY-2 DC-24V 4
20
#01
E2411-723-000 BREAKER COVER B 1
21 400-45100 DOOR S INTERLOCK SORENOID ASM. 1
22 HD-0005700-0A PHOTO SENSOR 1
23 400-45102 COVER LOCK SOLENOID ASM. 1
24 400-45095 COVER OPEN SENSOR CABLE ASM. 1
25 400-45098 DOOR M INTERLOCK SORENOID ASM. 1
26 HD-0017100-00 PHOTO SENSOR 2
27
#01
HK-0498900-0D CONNECTOR PARTS 4
28
#03
400-48718 DOOR SW CV 1
29 SL-4040891-SC SCREW M4 L=8 1
30 HX-0009600-0A EDGING BUSH 1
31 WS-0310002-KN SPRING WASHER M3 1
32
#01
400-48775 MAIN SW BR (CE) 1
33
#02
400-94908 MAIN_SW_BR_6D 1
34 HA-0058500-00 CIRCUIT PROTECTOR 1
35 400-45008 POWER LAMP ASM 1
36 400-45200 I/F CABLE ASM 1
37
#02
400-94573 I/F CABLE ASM 1
38 400-44994 AC POWER INPUT CABLE ASM 1
39
#01
E2410-723-000 BREAKER COVER A 1
40
#01
HK-0498500-10 TERMINAL BASE 10
41
#01
400-50013 CARRIER RAIL 1
42 SL-4040891-SC SCREW M4 L=8 2
43 400-48716 X INTERLOCK BR 1
44 SL-6030892-TN SCREW 2
45 SM-6030602-TN HEX SCREW M3 X 6 1
46 SL-4030691-SC SCREW M3X6 2
47 PS-0200062-KH SPRING PIN 2X6 1
48 E2039-723-000 X INTERLOCK LEVER 1
49 E1038-871-000 PLATEN LOCK CAM SCREW 1
50 E1055-717-000 DOOR LOCK SP 1
51 SL-4031081-SC SCREW M3 X 10 1
52 HA-0037900-0A MICRO SW 1
53 400-48865 X IL BR 1
54 400-49165 BREAKER COV 2
55 PV-0100060-00 HAND VALVE 1
56 SL-4030881-SC SCREW M3 L=8 2
57
#02
SM-4860501-SB SCREW M2.5 L=5 2
- -
6. ELECTRIC APPARATUS COMPONENTS (2)
9
1 1
4
3
1 0
7651 5 4
1 4 1 51 2 4 7
8
3 1 2 8 2 9
3 0
1 3
2 7
1 71 7 1 81 9
2 0
5 0
2 9
3 0
2 1 2 2 2 3
2 4 2 5
2 6 4 8
4 9
5 1 5 3
1 6
3 2 3 4
3 5
3 6 3 7
3 8 3 9
4 0 4 1
4 2 4 3 4 44 5
4 6
5 6
2 5 4 5 5
- -

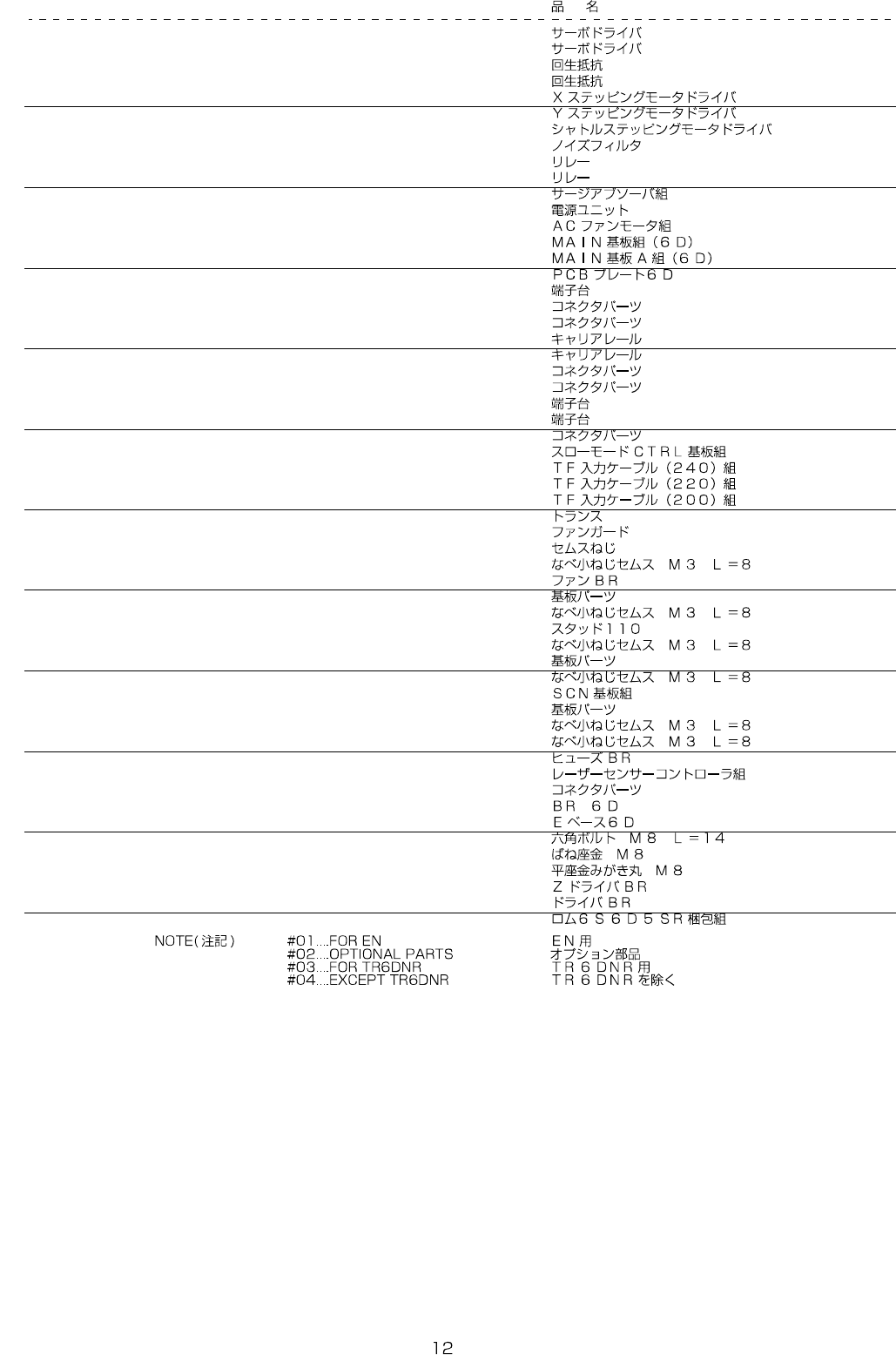

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-40687 SERVO DRIVER 1
2 400-40687 SERVO DRIVER 1
3 400-45704 REGENERATIVE RESISTANCE 1
4 400-45704 REGENERATIVE RESISTANCE 1
5 400-45711 X STEPPING MOTOR DRIVER 1
6 400-45711 Y STEPPING MOTOR DRIVER 1
7 400-45711 SHUTTLE STEPPING MOTOR DRIVER 1
8 400-45714 NOISE FILTER 1
9 HB-0014200-00 RELAY 5
10 HB-0014000-00 RELAY 1
11 400-45025 SURGE ABSORBER ASM. 1
12 HX-0055000-00 POWER SUPPLY UNIT 1
13 400-45016 AC FAN MOTOR ASM. 1
14
#04
400-95246 MAIN PCB ASM(6D) 1
15
#03
401-37756 MAIN PCB A ASM(6D) 1
16 400-49172 PCB PLATE 6D 2
17 HK-0498500-10 TERMINAL BASE 10
18 HK-0498900-00 CONNECTOR PARTS 2
19 HK-0498900-0D CONNECTOR PARTS 2
20 400-50013 CARRIER RAIL 1
21 400-50012 CARRIER RAIL 1
22 HK-0498900-0D CONNECTOR PARTS 3
23
#01
HK-0498900-0D CONNECTOR PARTS 2
24 HK-0498500-10 TERMINAL BASE 8
25
#01
HK-0498500-10 TERMINAL BASE 4
26 HK-0498900-00 CONNECTOR PARTS 2
27 400-42575 SLOW MODE CTRL PCB ASM 1
28 400-45000 TF INPUT CABLE(240)ASM. 1
29 400-45001 TF INPUT CABLE(220)ASM. 1
30 400-45002 TF INPUT CABLE(200)ASM. 1
31 400-45701 TRANSFORMER 1
32 HM-0003300-30 FAN GUARD 2
33 SL-4033591-SC SCREW M3X35 2
34 SL-4030891-SC SCREW M3X8 2
35 400-49169 FAN BR 1
36
#02
HX-0035400-0G BOARD PARTS 4
37
#02
SL-4030891-SC SCREW M3X8 4
38 400-00478 STUD 110 4
39 SL-4030891-SC SCREW M3X8 4
40 HX-0035400-0G BOARD PARTS 4
41 SL-4030891-SC SCREW M3X8 4
42 400-41117 SCN PCB ASM 1
43 HX-0035400-0G BOARD PARTS 4
44 SL-4030891-SC SCREW M3X8 4
45 SL-4030891-SC SCREW M3X8 1
46 400-49170 FUSE BR 1
47 400-45136 LASER SENS CONT ASM. 1
48
#01
HK-0498900-00 CONNECTOR PARTS 1
49 400-49167 BR 6D 1
50 400-49174 E BASE 6D 1
51 SM-9081423-SC SCREW M8 L=14 4
52 WS-0820002-KN SPRING WASHER M8 4
53 WP-0841601-SC WASHER 8.4X17.4X1.6 4
54 400-49171 Z DRIVER BR 2
55 400-49166 DRIVER BR 1
56
#03
400-72503 ROM 6S6D5SR ASM 1
