- - 8. DOOR U NIT 1 2 3 4 5 6 1 0 9 7 1 0 9 7 8 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48795 SIDE COVER R 1
2 SM-0040601-SC SCREW M4X0.7 L=6 42
3 400-49940 XF COVER 6D SILK 1
4 400-48788 Y COVER 1
5 400-48789 E COVER F 1
6 400-48798 E COVER R 1
7
#01
E2411-723-000 BREAKER COVER B 1
8 400-48792 REAR COVER A 1
9 HX-0033900-0D SPACER 8
10 SM-0040601-SC SCREW M4X0.7 L=6 42
11 400-48793 REAR COVER B 1
12 400-48791 REAR COVER C 1
13 400-48794 DOOR COVER 2
14 400-48894 EMBEDDED PULLS 2
15 400-48926 WINDOW S 3
16 SM-0041001-SC SCREW M4 L=10 12
17 NM-6040001-SC NUT M4 12
18 WP-0430801-SC WASHER 4.3X9X0.8 12
19
#04
WS-0410002-KN SPRING WASHER 12
20 400-48796 SIDE COVER L 1
21 400-48888 X SIDE COVER 1
22 400-48787 E COVER L 1
23 HX-0032600-0M DOME PLUG 1
24 400-49161 IL BASE 2
25
#01
E3208-723-000 SAFETY SW BR(RD) 2
26
#01
400-45228 DOOR M OPEN SW ASM 1
27
#01
400-45233 DOOR S OPEN SW ASM 1
28
#01
HX-0015000-0B CABLE CLIP 2
29
#01
SL-4041091-SC SCREW M4 L=10 2
30 400-45117 STK M SUPPLY SW ASM 1
31 400-45119 STK S SUPPLY SW ASM 1
32 SL-4043091-SC SCREW M4 L=30 4
33 E1326-715-000 EMERGENCY SEAL 1
34
#01
SL-6041092-TN SCREW 4
35 400-45093 EMERGENCY SW(REAR) ASM 1
36 400-48790 X COVER 1
37 400-48885 X DOOR RAIL R 1
38 NM-3034000-SF FLANGE NUT 6
39 400-48886 X DOOR RAIL L 1
40 E1524-716-000 DOOR CUSHION 2
41 400-48799 X DOOR 6D 1
42 400-48884 X DOOR BRL 1
43 NM-6040001-SC NUT M4 11
44 WP-0430801-SC WASHER 4.3X9X0.8 11
45
#04
WS-0410002-KN SPRING WASHER 11
46 400-48883 X DOOR BRR 1
47 SB-1040005-00 ROLLING SHAFT HOLDER 4
48 400-48899 S DOOR SD 2
49 E4560-531-000 PM LINK SC (B) H 1
50 400-49199 X COVER LOCK SC 1
51 E1046-717-000 X COVER HANDLE 1
52 SM-0040601-SC SCREW M4X0.7 L=6 2
53
#01
E2420-723-000 X SAFETY SW STAY 1
54 SM-6030602-TN HEX SCREW M3 X 6 6
55 E1572-726-000 TRAY CLAMP SHEET 1
56 400-48900 S DOOR BR 1
57 400-48901 S DOOR 1
58
#01
400-45206 COVER OPEN SW ASM 1
59 SL-4043091-SC SCREW M4 L=30 2
60
#01
HA-0045500-20 SWITCH 1
61
#05
400-48717 X DOOR DOG 1
62 400-49057 DOOR SUPPORT 6D 1
63 SM-6030802-TN BOLT 2
64
#02
400-94981 S_COVER_XL 1
65
#07
SM-0040601-SC SCREW M4X0.7 L=6 1
66
#06
400-49321 S COVER EX 1
67
#01
400-98346 RETAINING WASHER M4 1
68
#03
E3213-723-000 Z MOTOR COVER 1
69
#03
SL-4040891-SC SCREW M4 L=8 1
70
#03
400-49027 RD BLIND 1
71
#08
401-18288 S COVER 10V 1
- -
8. DOOR UNIT
1
2
3
4
5
6
1 0
9
7
1 0
9
7
8
8
- -

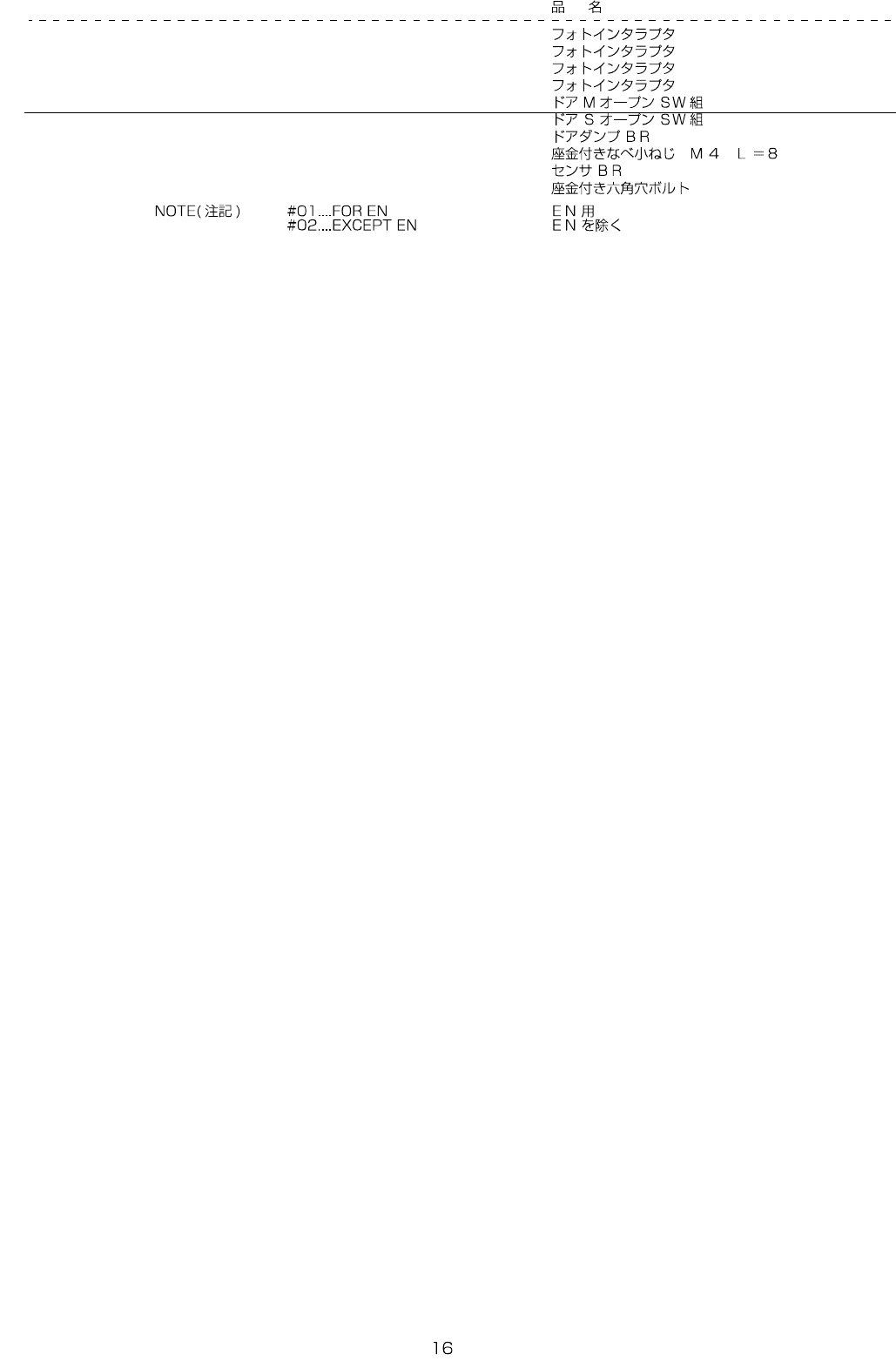

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
HD-0017100-00 PHOTO SENSOR 1
2
#02
HD-0017100-00 PHOTO SENSOR 1
3 HD-0017100-00 PHOTO SENSOR 1
4 HD-0017100-00 PHOTO SENSOR 1
5
#01
400-45228 DOOR M OPEN SW ASM. 1
6
#01
400-45233 DOOR S OPEN SW ASM. 1
7 400-48855 DOOR DAMP BR 2
8 SL-4040891-SC SCREW M4 L=8 4
9 400-54962 SENSOR BR 2
10 SL-6030892-TN SCREW 4
