HS-50 Changeover Instructions Cont rol PCB Convey or 2.2 Overview 04/2002 Issue 26 2YHUYLH Z In the case of se rvice (conv eyor contr ol defective ) the entire moun ting plate is changed. T he pig- gyback fixed co …
Changeover Instructions Control PCB Conveyor HS-50
04/2002 Issue 2.1 General
25
&KDQJHRYHU,QVWUXFWLRQV
*HQHUDO
The changeover kit control HS-50 conveyor single/double conveyor contains the newly developed
conveyor control TSP200 and in the case of service replaces the control built in to date (mounting
plate PCB handling control single conveyor Mat.-No.: 00 343 483-01 / double conveyor Mat.-No.:
00 342 984 01).
9DULRXV9HUVLRQVRI+6&RQYH\RU&RQWURO
+60DFKLQHV1RWRDSSUR[
Conveyor control TSP100 is on the transport mounting plate. The sensors are directly cable-con-
nected to the conveyor control. The described Changeover is QRWSRVVLEOH for these first 20 ma-
chines resp. the wiring has to be changed substantially.
+60DFKLQHVIURP1RWRDSULODSSUR[
Conveyor control TSP100 is inside the machine base to the right side of the input conveyor. The
sensors are connected to the conveyor control by several long single cables.
+60DFKLQHVIURPPD\DSSUR[RQZDUG
TSP100 is replaced by TSP200 - also as service spare part. The changeover is carried out by re-
placing the mounting plate. Since the sensor cables are going directly into the machine base, the
FRQYHUVLRQERDUGin the retrofit kit TSP200 is mounted directly above the TSP200-conveyor con-
trol board. Thus, after the changeover the active conversion board is here and no more in the
placement area.
With the implementation of the retrofit kit a special option plug is provided on the conversion
board: X34 bzw. X35 , an 18pin-plug. Each transport-option must be connected to X34 resp. X35.
The control identifies automatically the connected option. In case of the options FHUDPLFVXEVWUDWH
FHQWHULQJand YDFXXPWRROLQJ a suitable cable is provided.
127(
The /RQJ%RDUGoption(developed in the US) still uses the old TSP100 connectors with 6-pin
plugs.
HS-50 Changeover Instructions Control PCB Conveyor
2.2 Overview 04/2002 Issue
26
2YHUYLHZ
In the case of service (conveyor control defective) the entire mounting plate is changed. The pig-
gyback fixed conversation board guarantees compatibility with the old control.
,PSRUWDQW
The two retrofit kits were developed for service only and will not be integrated in the series man-
ufacturing.

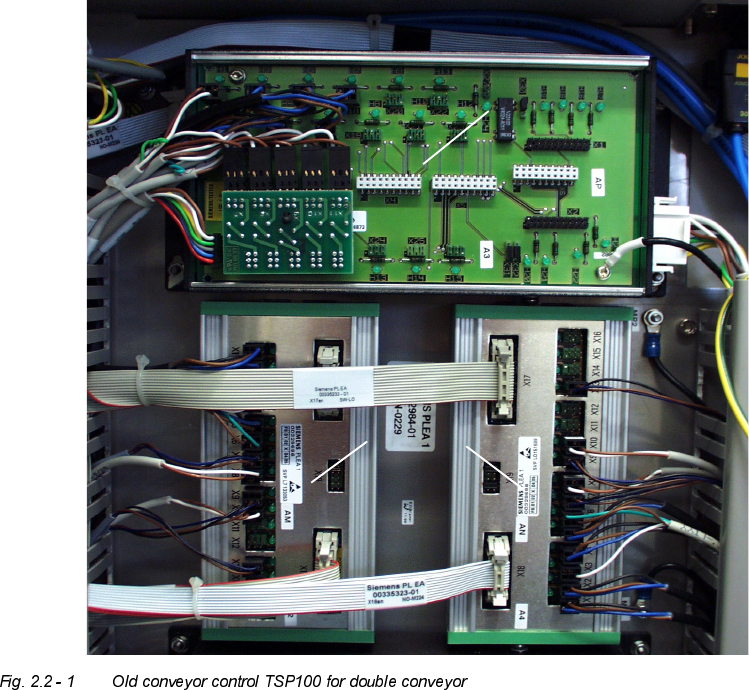

In the following picture you see the old conveyor control for double conveyor - recognizable by the
two SLIOs.
763
6/,2V
Changeover Instructions Control PCB Conveyor HS-50
04/2002 Issue 2.2 Overview
27
FRQYHUVLRQERDUG
